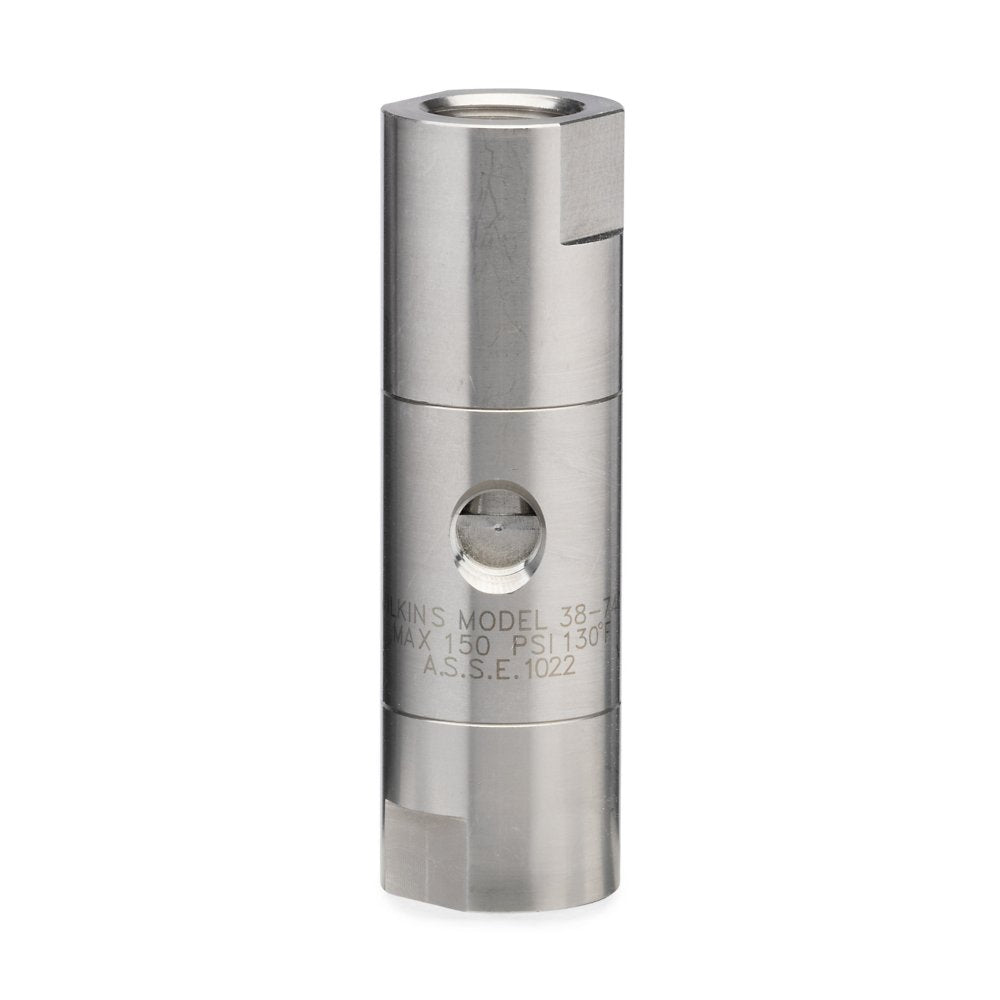

The Zurn Wilkins 38-740 is a 3/8" lead-free carbonated beverage backflow preventer with FNPT connections. It features a stainless body. Rated to 200 psi and up to 110°F. This model is certified lead-free for potable-water installations.
The 740 Carbonated Beverage Backflow Preventer is utilized in both carbonated and non-carbonated beverage dispensing systems to eliminate carbon dioxide gas or carbonated water from coming into contact with the copper potable water supply line. Primarily installed in vending machine supply lines, it can be installed vertically or horizontally for added versatility and convenience. Features of the 740 include an integral strainer to prevent check fouling caused by unwanted debris. The high quality stainless steel valve body, tailpieces, fasteners, spring, and screen add superior corrosion-resistance.
Features
- Features SAE J513 flare fitting or female NPT inlet and outlet for ease of installation
- Integral stainer eliminates check fouling caused by debris
- Backflow of carbonated water is prevented
- Stainless steel construction offers corrosion-resistance
- ASSE® Listed 1022
- Certified to NSF/ANSI 372 by IAPMO R&T
Common Questions
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
Specifications
- Type: Carbonated Beverage Backflow Preventer
- Size: 3/8"
- Connection: FNPT
- Body Material: Stainless
- Max Pressure (psi): 200
- Application: Domestic Water
- MPN: 38-740
- Temperature: up to 110°F
- Certifications: NSF-372, IAPMO
- Lead-Free: Yes
- USC FCCCHR Approved: No
Dimensions
| Size Nominal | 3/8" | End Connection | FNPT |
Details
| Series | 740 | Device Type | Carbonated Beverage Backflow Preventer |
| Lead Free | Yes | Body Material | Stainless |
| Application | Domestic Water | Max Pressure PSI | 200.0 psi |
| Max Temp °F | 110.0 °F | — | — |
Certifications & Standards
| NSF-372 | IAPMO |
Compare with similar products
| Assembly Type | — | — | RPZ
| Dual Check
| — | — |
| Hazard Rating | — | — | High Health Hazard
| Low Health Hazard
| — | — |
| ASSE Standard | — | — | ASSE 1013
| ASSE 1012
| — | — |
| Test Cocks | — | — | 4
| 0
| — | — |
| Series | 740
| 112-600XLHR
| 112-975XL2
| 760
| PureFlow Press
| MegaPress 316
|
| Country Of Origin | — | — | — | — | Canada
| China
|
| Spec Sheet | — | — | ||||
| Install Sheet | — | — | ||||
| Device Type | Carbonated Beverage Backflow Preventer
| Water Pressure Reducing Valve with Removable Integral Strainer
| Backflow Preventer - Bronze Reduced Pressure Principle Assembly
| Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent
| Stop Valve
| Globe Valve
|
| Size Nominal | 3/8"
| 1-1/2"
| 1-1/2"
| 3/4"
| 3/8"
| 1"
|
| Outlet Size | — | 1-1/2"
| — | — | 1/4" OD
| — |
| Lead Free | Yes | Yes | Yes | — | Yes | — |
| End Connection | FNPT
| FNPT
| FNPT
| FNPT
| PEX
| Press
|
| Body Material | Stainless
| Lead-Free Bronze
| Bronze
| Brass
| Nickel-plated brass
| 316 stainless steel
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| — | — |
| Max Pressure PSI | 200.0 psi | 300.0 psi | 175.0 psi | 175.0 psi | — | — |
| Max Temp °F | 110.0 °F | 140.0 °F | 180.0 °F | 210.0 °F | — | 250.0 °F |
| Certifications | NSF-372, IAPMO
| ASSE-1003, IAPMO, CSA, NSF-61
| ASSE-1013, AWWA-C511, CSA-B64.4, C-UL, UL, USC, NSF-61, NSF-372, IAPMO
| ASSE-1012, CSA-B64.3
| — | — |
