Specifications
Description

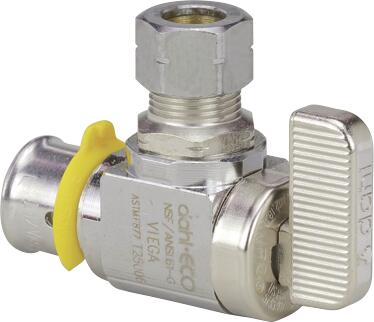

The Viega 93515 is a 3/8" zero-lead angle stop valve from Viega's PureFlow Press system with PEX Press x Compression ends for PEX tubing. It features a nickel-plated brass body. This model is certified lead-free for potable-water installations.
Sold as a pack of 10. This item ships only in multiples of 10, so the price shown is for all 10.
Features
- Angled
- Zero Lead
- For use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
- Nickel-plated brass
- Press connection, compression
- ¼ turn
Common Questions
- What pipe and press tool does this valve need?
- It installs with a Viega PureFlow press jaw or ring, on PEX tubing.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- What size supply line connects to the outlet?
- The outlet takes 1/4" OD tube by compression.
Specifications
- Type: Stop Valve
- Size: 3/8"
- Outlet Size: 1/4" OD
- Connection: PEX
- Body Material: Nickel-plated brass
- Pack Quantity: 10
- Country of Origin: Canada
- MPN: 93515
- Lead-Free: Yes
- Press Profile: Viega PureFlow
- For Use On: PEX
- End Connections: PEX Press x Compression
- Port Configuration: 3/8" PEX Press x 1/4" Compression
- Body Pattern: Angle
- Coating / Finish: Nickel Plated
- Inlet Connection: PEX Press
- Outlet Connection: Compression
- Turn Type: Quarter-Turn
Product Information
| SKU | Country of Origin |
|---|---|
| 93515 | Canada |
Dimensions
| Size Nominal | 3/8" | Outlet Size | 1/4" OD |
| End Connection | PEX | — | — |
Details
| Series | PureFlow Press | Device Type | Stop Valve |
| Lead Free | Yes | Body Material | Nickel-plated brass |
| Pack Qty | 10 | Inlet Connection Type | PEX Press |
| Outlet Connection Type | Compression | Body pattern | Angle |
| Coating | Nickel Plated | Work material | PEX |
| Configuration | 3/8" PEX Press x 1/4" Compression | End combination | PEX Press x Compression |
Compare with similar products
| Inlet Connection Type | PEX Press
| FNPT
| PEX
| PEX Crimp
| PEX Crimp
|
| Outlet Connection Type | Compression
| FNPT
| Compression
| Compression
| Compression
|
| Series | PureFlow Press
| — | ProPEX
| PureFlow Crimp
| PureFlow Crimp
|
| Country Of Origin | Canada
| — | — | Canada
| Canada
|
| Spec Sheet | — | — | — | ||
| Device Type | Stop Valve
| — | — | Stop Valve
| Stop Valve
|
| Size Nominal | 3/8"
| — | 1/2"
| 1/2"
| 3/8"
|
| Outlet Size | 1/4" OD
| 1/2"
| 3/8"
| 1/4" OD
| 1/4" OD
|
| Lead Free | Yes | — | Yes | Yes | Yes |
| End Connection | PEX
| — | Compression
| PEX
| PEX
|
| Body Material | Nickel-plated brass
| Brass
| Brass
| Nickel-plated brass
| Nickel-plated brass
|
| Max Temp °F | — | 140.0 °F | 194.0 °F | — | — |
| Certifications | — | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-372, ASTM F877, ASTM F1960, CSA-B137.5, NSF-61, NSF-14
| — | — |
