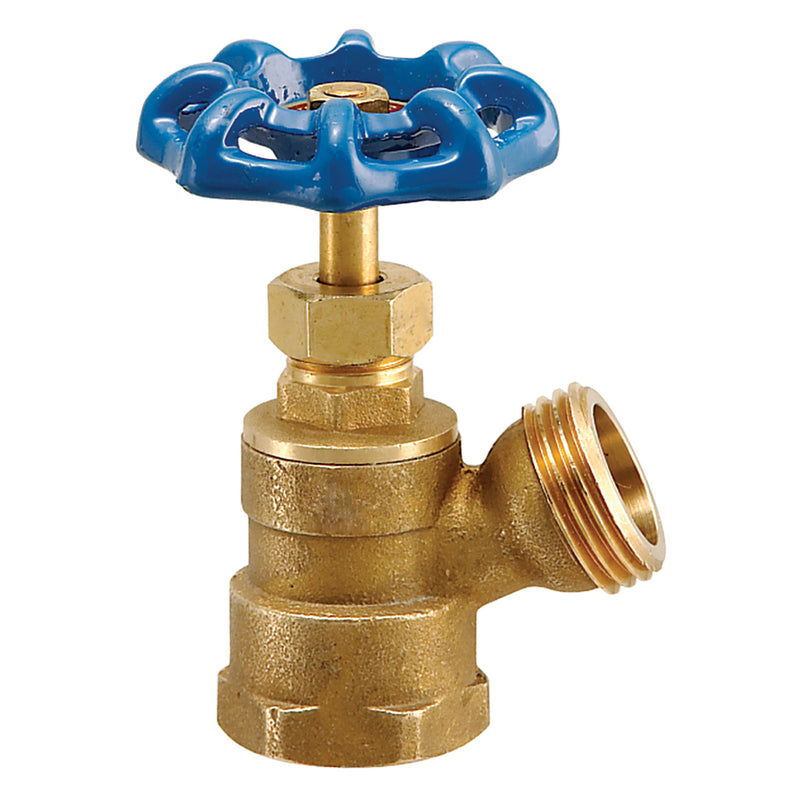

The Watts LFBD4F 3/4 is a 3/4" hydronic heating component with 3 circuits. It is rated to 200 psi and up to 250°F. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch female IPS inlet, PTFE stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).
Features
- Lead free construction
- Angle pattern
- Female IPS inlet
- Hose thread outlet
Common Questions
- How many circuits does it carry?
- It has 3 branch circuits.
- What is it designed for?
- It is intended for hydronic heating service.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Max Pressure (psi): 200
- Application: Hydronic Heating
- Pack Quantity: 72
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFBD4F 3/4
- Temperature: up to 250°F
- Lead-Free: Yes
- Circuits / Ports: 3
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123624 | 098268701425 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | NPT |
Details
| Series | LFBD | Lead Free | Yes |
| Application | Hydronic Heating | Max Pressure PSI | 200.0 psi |
| Max Temp °F | 250.0 °F | Pack Qty | 72 |
| Circuits | 3 | — | — |
