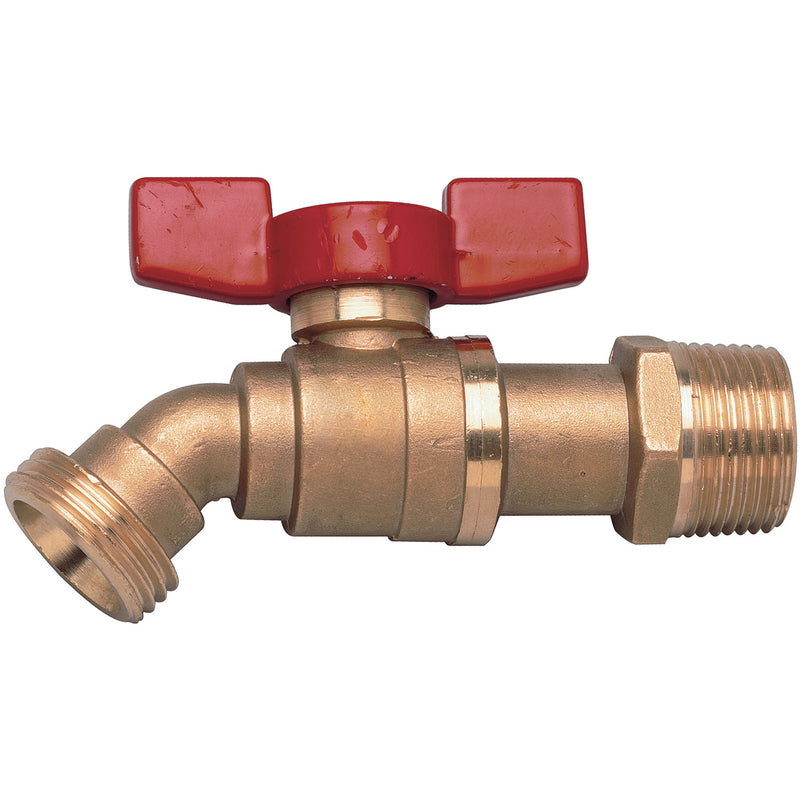

Watts LFBD-QT 3/4 Lead-Free, Brass, Sweat

The Watts LFBD-QT 3/4 is a 3/4" brass hydronic heating component. It features a brass body. Rated to 200 psi and up to 250°F. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free angle pattern quarter turn boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with dual pattern combination threaded and solder and 3/4 inch hose thread connection, PTFE stem packing, and rugged aluminum tee handle. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).

Features

• Lead free construction
• Angle pattern
• Dual inlet connection
• Hose thread outlet

Common Questions

What is it designed for?

It is intended for hydronic heating service.

Specifications

• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Sweat
• Body Material: Brass
• Max Pressure (psi): 200
• Application: Hydronic Heating
• Pack Quantity: 80
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFBD-QT 3/4
• Temperature: up to 250°F
• Lead-Free: Yes
