Watts LFBD2 3/4 Lead-Free, NPT

The Watts LFBD2 3/4 is a 3/4" hydronic heating component with 3 circuits. It is rated to 200 psi and up to 250°F. This model is certified lead-free for potable-water installations.

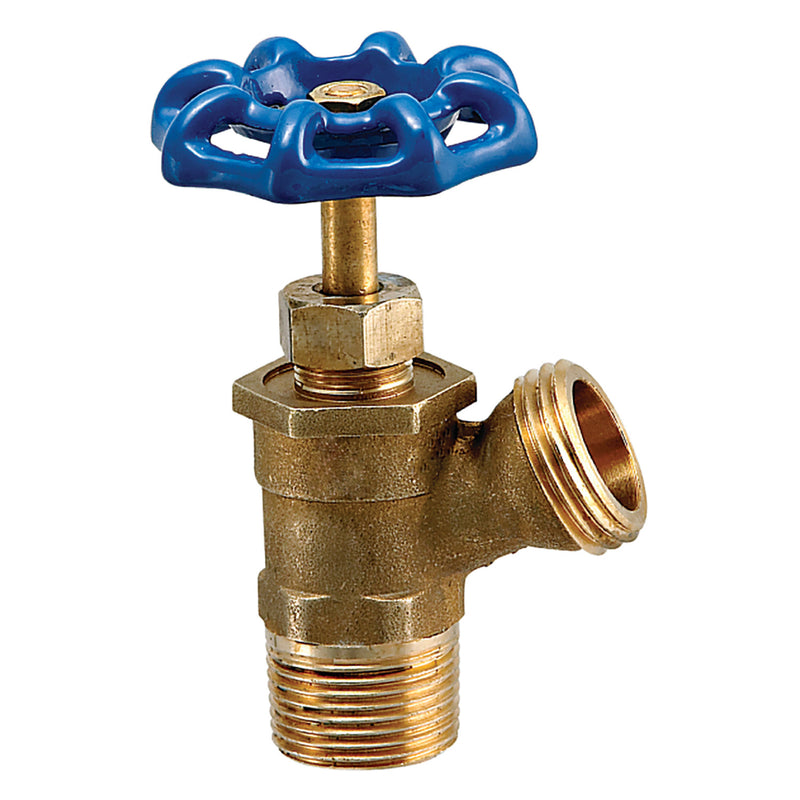

This 3/4 inch lead free angle pattern boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch male IPS inlet, PTFE stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).

Features

• Lead free construction
• Angle pattern
• Male IPS inlet
• Hose thread outlet

Common Questions

How many circuits does it carry?

It has 3 branch circuits.

What is it designed for?

It is intended for hydronic heating service.

Specifications

• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: NPT
• Max Pressure (psi): 200
• Application: Hydronic Heating
• Pack Quantity: 72
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LFBD2 3/4
• Temperature: up to 250°F
• Lead-Free: Yes
• Circuits / Ports: 3
