Similar products
Specifications
Description

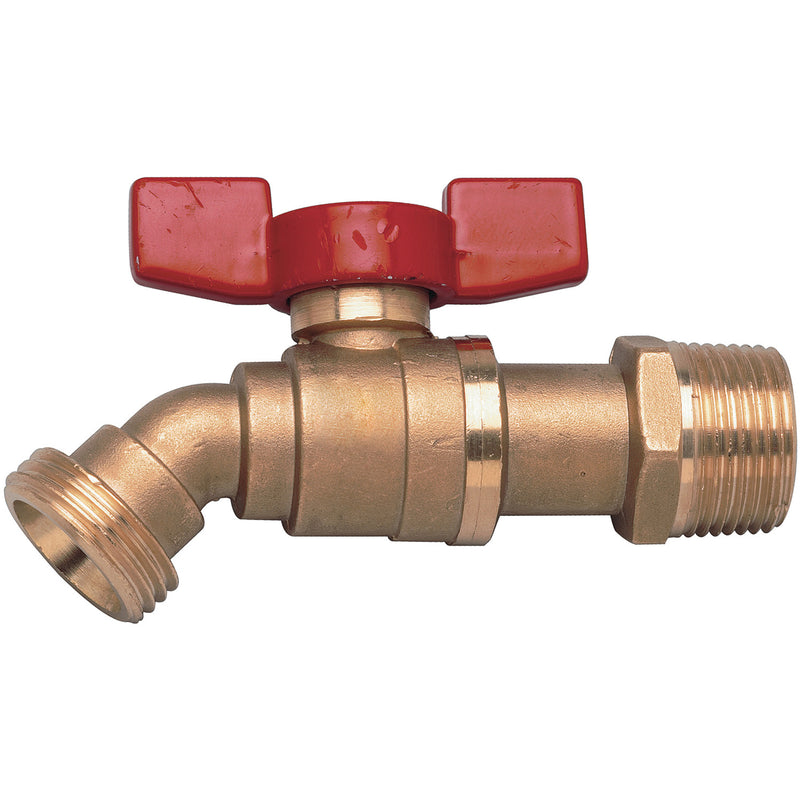

The Watts BD-QT 1/2 is a 3/4" brass hydronic heating component. It features a brass body. Rated to 200 psi and up to 250°F.
This 1/2 inch angle pattern quarter turn forged brass boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a forged brass body construction with dual connection for either threaded and solder and 3/4 inch hose thread connection, PTFE stem packing, and rugged aluminum tee handle. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).
Features
- Forged brass body
- Angle pattern
- Dual inlet connection
- Hose thread outlet
Common Questions
- What is it designed for?
- It is intended for hydronic heating service.
Specifications
- Size: 3/4"
- Inlet Size: 1/2"
- Outlet Size: 3/4"
- Connection: Sweat
- Body Material: Brass
- Max Pressure (psi): 200
- Application: Hydronic Heating
- Pack Quantity: 120
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: BD-QT 1/2
- Temperature: up to 250°F
- Lead-Free: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0820955 | 098268919875 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 1/2" |
| Outlet Size | 3/4" | End Connection | Sweat |
Details
| Series | BD-QT | Body Material | Brass |
| Application | Hydronic Heating | Max Pressure PSI | 200.0 psi |
| Max Temp °F | 250.0 °F | Pack Qty | 120 |
Compare with similar products
| Series | BD-QT
| LFBD
| LFBD
| LFBD-QT
| LFBD-QT
| LFBD
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Outlet Size | 3/4"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Sweat
| Sweat
| NPT
| Sweat
| Sweat
| NPT
|
| Body Material | Brass
| — | — | Brass
| Brass
| — |
| Application | Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
|
| Max Pressure PSI | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi |
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | 120
| 100
| 72
| 80
| 120
| 100
|
