Description
The Watts BD-2C 3/4 is a 3/4" brass hydronic heating component with 3 circuits. It features a brass body. Rated to 200 psi and up to 250°F.

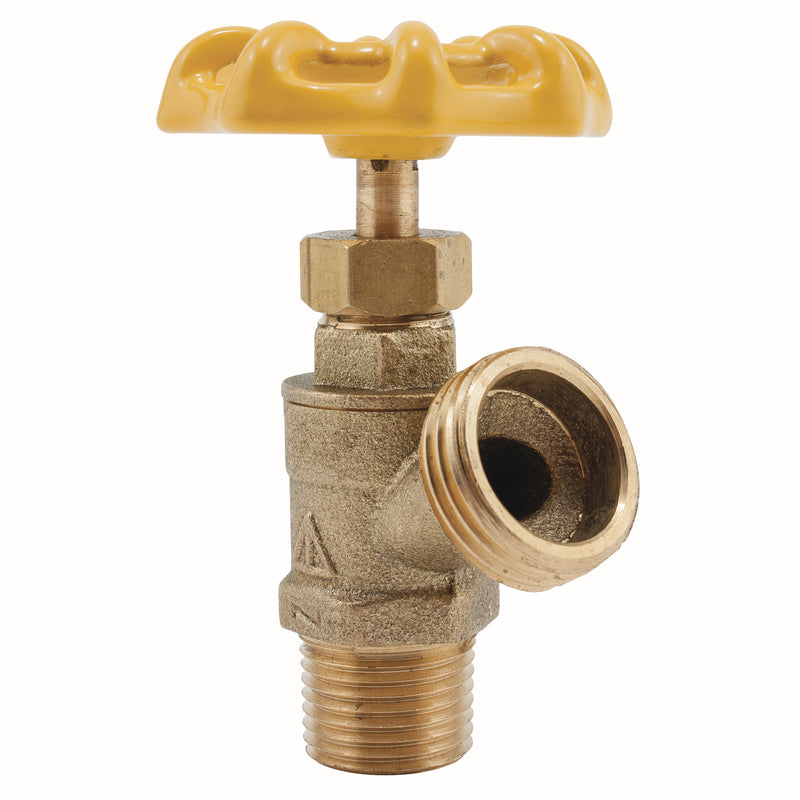

This 3/4 inch angle pattern brass boiler drain shutoff is designed for water service use in commercial and residential hydronic heating systems. It provides positive shutoff for boiler drain or sill cock applications. This shutoff consists of a brass body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch male IP inlet, PTFE stem packing, and cast iron handwheel. The maximum pressure is 200 psi (14 bar) WOG and maximum temperature is 250 degrees F (121 degrees C).
Features
- Brass body
- Angle pattern
- Male IP inlet
- Hose thread outlet
Common Questions
- How many circuits does it carry?
- It has 3 branch circuits.
- What is it designed for?
- It is intended for hydronic heating service.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: MNPT
- Connection Gender: Male
- Body Material: Brass
- Max Pressure (psi): 200
- Application: Hydronic Heating
- Pack Quantity: 100
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: BD-2C 3/4
- Temperature: up to 250°F
- Lead-Free: No
- Circuits / Ports: 3
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0820902 | 098268260458 | Taiwan | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | MNPT |
| Connection Gender | Male | — | — |
Details
| Series | BD | Body Material | Brass |
| Application | Hydronic Heating | Max Pressure PSI | 200.0 psi |
| Max Temp °F | 250.0 °F | Pack Qty | 100 |
| Circuits | 3 | — | — |
Compare with similar products
| Series | BD
| LFBD
| LFBD
| LFBD-QT
| LFBD-QT
| LFBD
|
| Country Of Origin | Taiwan
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Inlet Size | 3/4"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Outlet Size | 3/4"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 1/2"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | MNPT
| Sweat
| NPT
| Sweat
| Sweat
| NPT
|
| Body Material | Brass
| — | — | Brass
| Brass
| — |
| Application | Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
| Hydronic Heating
|
| Max Pressure PSI | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi | 200.0 psi |
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | 100
| 100
| 72
| 80
| 120
| 100
|
