Specifications
Description

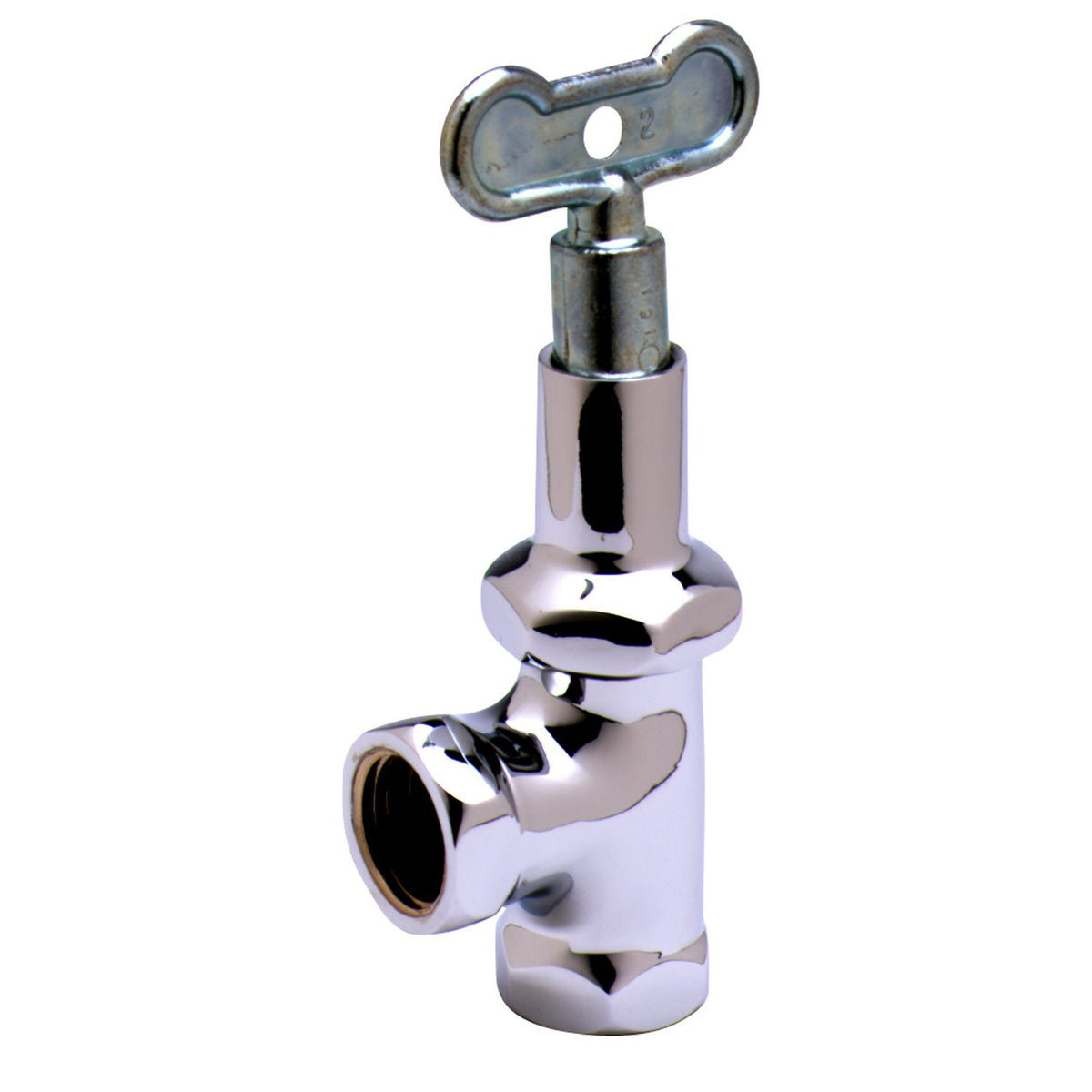

The T&S Brass B-0418 is an angle loose key supply stop with a 1/2" female NPT inlet and a 1/2" female NPT outlet. It features a brass body. Rated to 40°F to 140°F.
Features
- Angled loose key stop
- 1/2” NPT female inlet
- 1/2” NPT female outlet
- Removable T-handle key
- Material: Chrome plated brass body
Common Questions
- What are the connections?
- Inlet: 1/2" female NPT. Outlet: 1/2" female NPT.
Specifications
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Material: Brass
- Warranty: One Year (Limited)
- MPN: B-0418
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
- Handle: Loose Key
- Finish: Chrome Plated
- Pattern: Angle
- Inlet Connection: FNPT
- Outlet Connection: FNPT
- Min Operating Pressure (psi): 20
- Max Operating Pressure (psi): 125
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| B-0418 | 671262004565 | One Year (Limited) | Download |
Dimensions
| Inlet Size | 1/2" | Outlet Size | 1/2" |
Details
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Min Temp °F | 40.0 °F | Inlet Connection Type | FNPT |
| Outlet Connection Type | FNPT | Body pattern | Angle |
| Coating | Chrome Plated | Handle style | Loose Key |
| Operating pressure max psi | 125.0 PSI | Operating pressure min psi | 20 PSI |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 Annex G (61-9) |
| NSF-372 | — |
Compare with similar products
| Inlet Connection Type | FNPT
| PEX
| PEX Press
| PEX Crimp
| PEX Crimp
|
| Outlet Connection Type | FNPT
| Compression
| Compression
| Compression
| Compression
|
| Series | — | ProPEX
| PureFlow Press
| PureFlow Crimp
| PureFlow Crimp
|
| Country Of Origin | — | — | Canada
| Canada
| Canada
|
| Spec Sheet | — | — | — | ||
| Device Type | — | — | Stop Valve
| Stop Valve
| Stop Valve
|
| Size Nominal | — | 1/2"
| 3/8"
| 1/2"
| 3/8"
|
| Outlet Size | 1/2"
| 3/8"
| 1/4" OD
| 1/4" OD
| 1/4" OD
|
| Lead Free | — | Yes | Yes | Yes | Yes |
| End Connection | — | Compression
| PEX
| PEX
| PEX
|
| Body Material | Brass
| Brass
| Nickel-plated brass
| Nickel-plated brass
| Nickel-plated brass
|
| Max Temp °F | 140.0 °F | 194.0 °F | — | — | — |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-372, ASTM F877, ASTM F1960, CSA-B137.5, NSF-61, NSF-14
| — | — | — |
