Specifications
Description

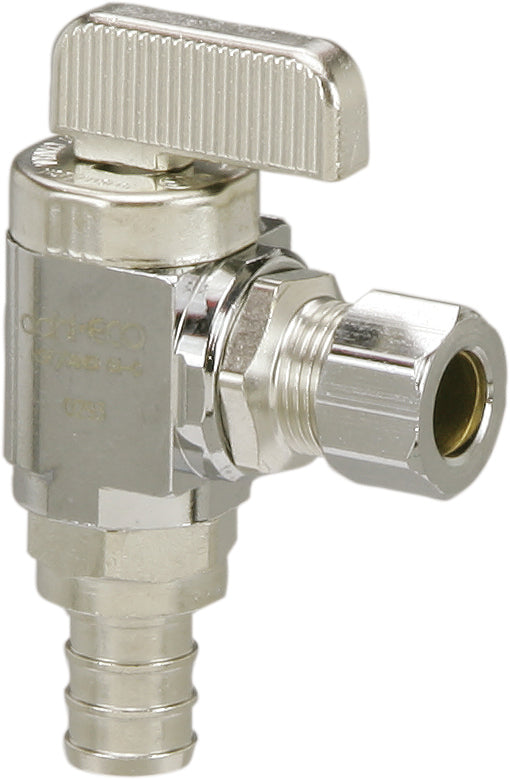

The Viega 46002 is a 3/8" zero-lead angle stop valve from Viega's PureFlow Crimp system with PEX Crimp x Compression ends for PEX tubing. It features a nickel-plated brass body. This model is certified lead-free for potable-water installations.
Features
- Angled
- Zero Lead
- For use with Viega PureFlow PEX
- Viega PureFlow Crimp ring
- 53005
- Nickel-plated brass
- Crimp connection, compression
- ¼ turn
Common Questions
- What pipe and press tool does this valve need?
- The crimp ends install with PEX crimp rings and a PEX crimp tool, on PEX tubing.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- What size supply line connects to the outlet?
- The outlet takes 1/4" OD tube by compression.
Specifications
- Type: Stop Valve
- Size: 3/8"
- Outlet Size: 1/4" OD
- Connection: PEX
- Body Material: Nickel-plated brass
- Country of Origin: Canada
- MPN: 46002
- Lead-Free: Yes
- Press Profile: PEX Crimp
- For Use On: PEX
- End Connections: PEX Crimp x Compression
- Port Configuration: 3/8" PEX Crimp x 1/4" Compression
- Body Pattern: Angle
- Coating / Finish: Nickel Plated
- Inlet Connection: PEX Crimp
- Outlet Connection: Compression
- Turn Type: Quarter-Turn
Product Information
| SKU | Country of Origin |
|---|---|
| 46002 | Canada |
Dimensions
| Size Nominal | 3/8" | Outlet Size | 1/4" OD |
| End Connection | PEX | — | — |
Details
| Series | PureFlow Crimp | Device Type | Stop Valve |
| Lead Free | Yes | Body Material | Nickel-plated brass |
| Inlet Connection Type | PEX Crimp | Outlet Connection Type | Compression |
| Body pattern | Angle | Coating | Nickel Plated |
| Work material | PEX | Configuration | 3/8" PEX Crimp x 1/4" Compression |
| End combination | PEX Crimp x Compression | — | — |
