Specifications
Description

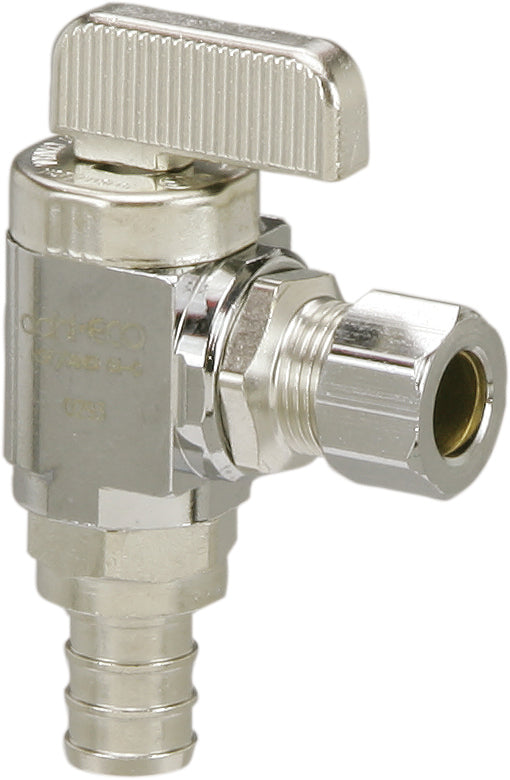

The Viega 46025 is a 1/2" zero-lead angle stop valve from Viega's PureFlow Crimp system with PEX Crimp x Compression ends for PEX tubing. It features a nickel-plated brass body. This model is certified lead-free for potable-water installations.
Features
- Angled
- Zero Lead
- For use with Viega PureFlow PEX
- Viega PureFlow Crimp ring
- 53005
- Nickel-plated brass
- Crimp connection, compression
- ¼ turn
Common Questions
- What pipe and press tool does this valve need?
- The crimp ends install with PEX crimp rings and a PEX crimp tool, on PEX tubing.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- What size supply line connects to the outlet?
- The outlet takes 1/4" OD tube by compression.
Specifications
- Type: Stop Valve
- Size: 1/2"
- Outlet Size: 1/4" OD
- Connection: PEX
- Body Material: Nickel-plated brass
- Country of Origin: Canada
- MPN: 46025
- Lead-Free: Yes
- Press Profile: PEX Crimp
- For Use On: PEX
- End Connections: PEX Crimp x Compression
- Port Configuration: 1/2" PEX Crimp x 1/4" Compression
- Body Pattern: Angle
- Coating / Finish: Nickel Plated
- Inlet Connection: PEX Crimp
- Outlet Connection: Compression
- Turn Type: Quarter-Turn
Product Information
| SKU | Country of Origin |
|---|---|
| 46025 | Canada |
Dimensions
| Size Nominal | 1/2" | Outlet Size | 1/4" OD |
| End Connection | PEX | — | — |
Details
| Series | PureFlow Crimp | Device Type | Stop Valve |
| Lead Free | Yes | Body Material | Nickel-plated brass |
| Inlet Connection Type | PEX Crimp | Outlet Connection Type | Compression |
| Body pattern | Angle | Coating | Nickel Plated |
| Work material | PEX | Configuration | 1/2" PEX Crimp x 1/4" Compression |
| End combination | PEX Crimp x Compression | — | — |
Compare with similar products
| Turn Type | — | — | — | — | Multi-Turn
| Multi-Turn
|
| Inlet Connection Type | PEX Crimp
| FNPT
| PEX
| PEX Crimp
| Sweat
| Sweat
|
| Outlet Connection Type | Compression
| FNPT
| Compression
| Compression
| OD Compression
| OD Compression
|
| Series | PureFlow Crimp
| — | ProPEX
| PureFlow Crimp
| STC
| STC
|
| Country Of Origin | Canada
| — | — | Canada
| — | — |
| Warranty | — | One Year (Limited)
| — | — | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | — | — | ||||
| Device Type | Stop Valve
| — | — | Stop Valve
| Angle stop
| Angle stop
|
| Size Nominal | 1/2"
| — | 1/2"
| 3/8"
| — | — |
| Outlet Size | 1/4" OD
| 1/2"
| 3/8"
| 1/4" OD
| 3/8"
| 3/8"
|
| Lead Free | Yes | — | Yes | Yes | Yes | Yes |
| End Connection | PEX
| — | Compression
| PEX
| — | — |
| Body Material | Nickel-plated brass
| Brass
| Brass
| Nickel-plated brass
| Brass
| Brass
|
| Max Temp °F | — | 140.0 °F | 194.0 °F | — | 140.0 °F | 140.0 °F |
| Certifications | — | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-372, ASTM F877, ASTM F1960, CSA-B137.5, NSF-61, NSF-14
| — | ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
|
| Pack Qty | — | — | — | — | 1
| 2
|
| Min Temp °F | — | 40.0 °F | — | — | 40.0 °F | 40.0 °F |
