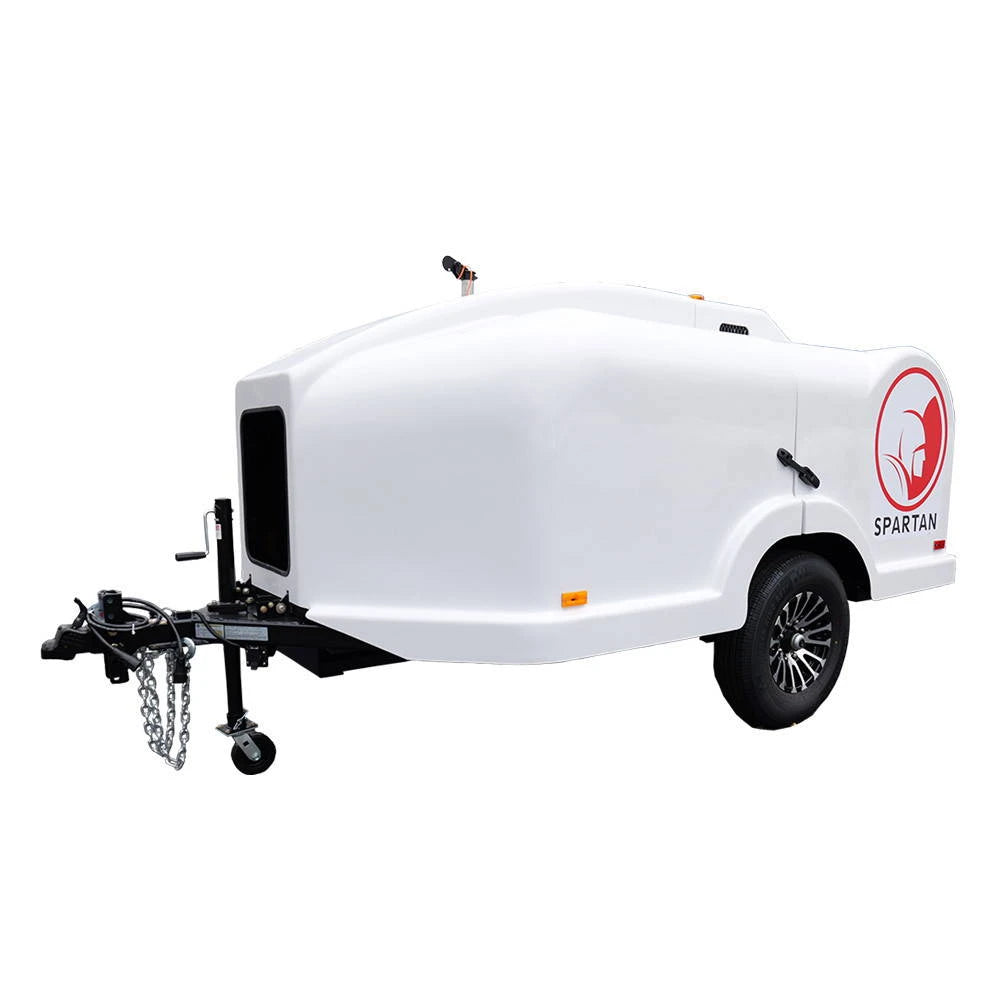

Spartan Tool Warrior Gas Trailer Jetter 7992G000

The Spartan Tool Warrior Gas Trailer Jetter is a trailer-mounted sewer jetter rated 4000 PSI at 18 GPM for 3" - 24" lines.

gas or diesel full-size jetter Built to protect and serve. With fiberglass casing to protect and silence the entire machine, Spartan's premier trailer jet gives you 4,000 PSI at 18 GPM for the strength to clear almost any line. The patented 180° pivoting hose reel and optional four-function remote control let you handle the tightest spots. With pulsation and a full antifreeze system, the Warrior conquers tough clogs in any weather. Its clean finish gives you room to customize it with your company logo and colors, allowing you to easily transform the unit into your company's mobile billboard. rubber supply hose; 75' of 1/4" trap cleaning hose

Features

• Triplex ceramic plunger pump delivers 4,000 PSI at 18 GPM
• Electronic controlled pump pulsation with smart pressure engine setting
• Patented 180° pivoting hose reel and controls, with variable speed hydraulic rewind
• Tier IV diesel engine meets all US emission standards
• 300-gallon water tank with integrated baffles for towing while full
• Full-system winterization and antifreeze recirculation
• Lockable noise-reducing engine shroud protects unit while in tow
• Lift-up rear door for operator weather protection
• Torsion single-axle suspension with electric brakes
• Manhole hose protection
• Includes: Gas

Common Questions

What pipe sizes does this jetter clean?

It is rated for 3" - 24" lines.

What pressure and flow does it deliver?

4000 PSI at 18 GPM, the pump's rated output.

Is this gas or diesel?

Gas, 87 HP.

How big is the water tank?

300 gallons.

What hoses come standard with this unit?

500' of 1/2" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap cleaning hose

Specifications

• Type: Sewer Jetter
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 7992G000
• Pipe Size Range: 3" - 24"
• Rated Pressure (PSI): 4000
• Flow Rate (GPM): 18
• Fuel / Power: Gas
• Engine HP: 87.0
• Water Tank (gal): 300
• Standard Hoses: 500' of 1/2" high-pressure cleaning hose 100' of 5/8" rubber supply hose 75' of 1/4" trap cleaning hose
• Hose Rewind: Hydraulic
• GVWR (lb): 7060
• Hitch: 2" Ball (Class IV)
• Overall Length (in): 160
• Overall Width (in): 73
• Overall Height (in): 74

Technical Data: Warrior

• Pipe sizes (manual): 3" to 24" diameter
• Max water pressure: 4,000 psi
• Max water flow: 18 GPM
• Water capacity: 300 gallons
• Overall length: 160"
• Overall width: 73"
• Overall height: 74"
• GVWR: 7060 lbs (3202 kg)
• GAWR: 6460 lbs (2930 kg)
• Hitch: 2" Ball Type (Class IV)
• Tires: ST 235-80-R16BE-I (Max Load: 3520 lbs each)
• Cold inflation pressure: 80 PSI / 552 kPa (each)
• Rim: 16" x 6" x 3750 lbs (each)
• Max recommended towing speed: 55 mph
• Towing capacity: 10,000 lbs.
• Empty weight: 4,200 lbs.
• Full weight: 7,060 lbs.
• Electrical system: 12 Volt/Negative Ground
• Powered engagement clutch: Hayes bearing supported stub shaft
• Water temperature limit: 140°F
• Hydraulic reservoir (rewind): 8 gal
• Hose rewind: Hydraulic pump & motor
• Pump type: Triplex ceramic plunger
• Nozzles included: one penetrator and one closed stainless steel nozzle
• Leader hose: 15 ft. leader hose
• Antifreeze system: Full-system winterization and antifreeze recirculation
• Optional remote control: Remote control
• Optional hose footage counter: Jetter hose footage counter
• Suspension: Torsion single-axle suspension with electric brakes

From Spartan Tool's own documentation (Warrior Combined Op Manual, Warrior brochure).
