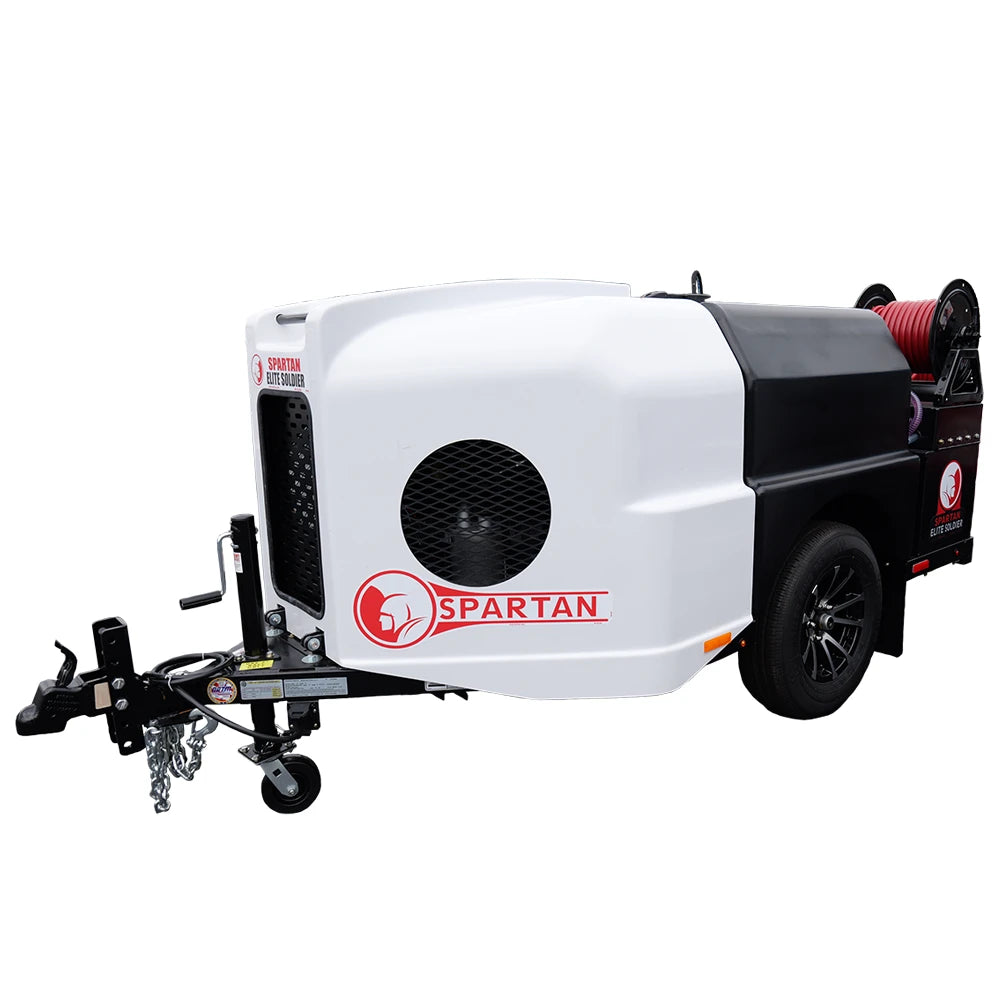

Spartan Tool Elite Soldier Trailer Jetter 7584E000

The Spartan Tool Elite Soldier Trailer Jetter is a trailer-mounted sewer jetter rated 4000 PSI at 10 GPM for 3" - 15" lines.

trap-cleaning hose Kohler Cutting roots and cost. The Elite Soldier, offering 4,000 PSI at 10 GPM, is Spartan Tool's newest mid-sized trailer jet offering superior performance and value for your investment. Form meets function with the new Elite Soldier, offering a range of available accessories to maximize versatility.

Features

• Triplex ceramic plunger pump delivers 4,000 PSI at 10 GPM
• Electronic controlled pump pulsation for maximum cleaning distance
• Hose reel pivots 180° for easy alignment with the pipe being cleaned
• Variable-speed power hose rewind
• 200-gallon water tank with integrated baffles allows unit to be towed while full of water
• Single-valve full-system winterization with antifreeze recirculation
• Noise-reducing engine shroud protects unit while in tow
• Engine shroud easily customized with your company's logo or colors
• Torsion single-axle suspension with electric brakes
• Electric start engine

Common Questions

What pipe sizes does this jetter clean?

It is rated for 3" - 15" lines.

What pressure and flow does it deliver?

4000 PSI at 10 GPM, the pump's rated output.

Is this gas or diesel?

Gas, 38 HP.

How big is the water tank?

200 gallons.

What hoses come standard with this unit?

350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose

Specifications

• Type: Sewer Jetter
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 7584E000
• Pipe Size Range: 3" - 15"
• Rated Pressure (PSI): 4000
• Flow Rate (GPM): 10
• Fuel / Power: Gas
• Engine HP: 38.0
• Water Tank (gal): 200
• Standard Hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
• Hose Rewind: Electric
• Engine: Kohler ECH980 Command PRO EFI
• GVWR (lb): 3500
• Hitch: 2" Ball (Class II); optional pintle ring
• Overall Length (in): 126
• Overall Width (in): 57
• Overall Height (in): 58

Technical Data: Elite Soldier

• Pipe sizes: 3" - 15"
• Max water pressure: 4,000 psi
• Max water flow: 10 GPM
• Water capacity: 200 gallons
• Standard hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
• Nozzles included: one penetrator and one closed stainless steel nozzle
• Leader hose: 15-foot leader hose
• Empty weight: 1,950 lbs
• Full weight: 3,850 lbs
• Overall length: 126"
• Overall width: 57"
• Overall height: 58"
• GVWR: 3500 lbs (1589 kg)
• GAWR: 3300 lbs (1498 kg)
• Hitch: 2" Ball Type (Class II) (Optional Pintle Ring)
• Tires: ST 205-75-R14 (Max Load: 1760 lbs each)
• Cold inflation pressure: 50 PSI / 350 kPa (each)
• Rim: 14" x 5.5" x 1865 lbs (each)
• Max recommended towing speed: 55 mph
• Engine model: ECH980 (Kohler Command PRO EFI)
• Engine cylinders: 2
• Bore & stroke: 3.54" x 3.09"
• Engine displacement: 61 cu. in.
• Fuel: Gasoline
• Fuel tank capacity: 8.0 gal
• Engine cooling: Air
• Engine oil capacity: 2.1 US qt (10W-30 oil)
• Alternator: 20 Amp
• Spark plug: NGK BKR6ES (0.035" gap)
• Hose rewind: 12V Electric Motor with Variable Speed Controller

From Spartan Tool's own documentation (Elite Soldier brochure, Elite Soldier service manual).
