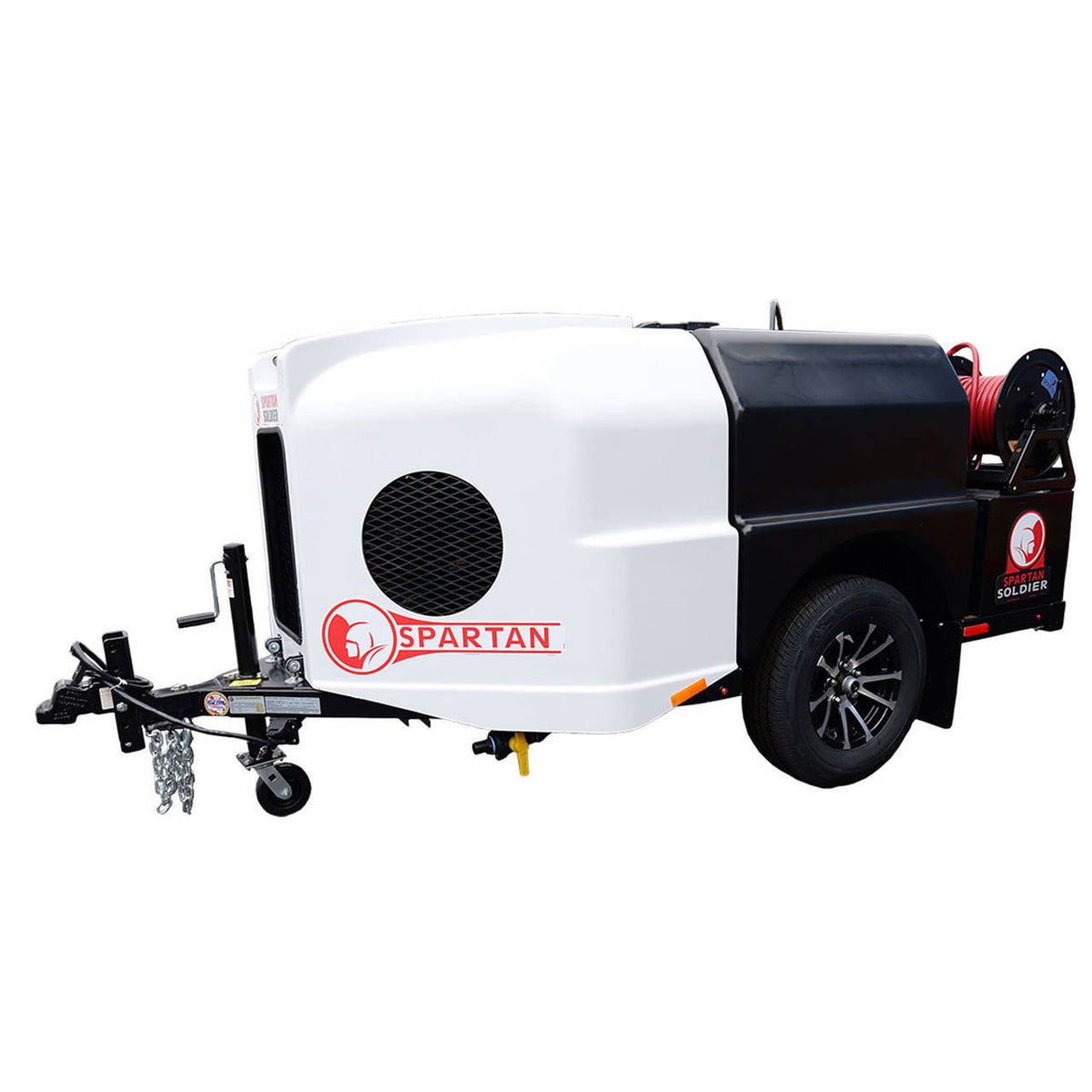

Spartan Tool Soldier Hydro-Jet with Remote & Counter 7584FORC

The Spartan Tool Soldier Hydro-Jet with Remote & Counter is a trailer-mounted sewer jetter rated 3000 PSI at 12 GPM for 3" to 12" lines.

hose; 100' of 5/8" rubber supply hose water-cooled gasoline engine with electric start and solid-state ignition Your first line of defense. Our mid- sized trailer jet delivers 3,000 PSI at 12 GPM. With a standard antifreeze system, the Soldier reports for duty in any weather conditions. Add an optional Warthog® nozzle to make quick work of ice, grease and tough roots. With its compact form, fully enclosed engine cover, and 200-gallon water tank, the Soldier is the ultimate mid-range powerhouse, ready to fight through your most stubborn stoppages.

Features

• Triplex ceramic plunger pump delivers 3,000 PSI at 12 GPM
• Electronic controlled pump pulsation for maximum cleaning distance
• Hose reel pivots 180° for easy alignment with the pipe being cleaned
• Variable-speed power hose rewind
• 200-gallon water tank with integrated baffles allows
• unit to be towed while full of water
• Single-valve full-system winterization with antifreeze recirculation
• Noise-reducing engine shroud protects unit while in tow
• Engine shroud easily customized with your company's logo or colors
• Torsion single-axle suspension with electric brakes
• Includes: Remote Control
• Includes: Hose Footage Counter

Common Questions

What pipe sizes does this jetter clean?

It is rated for 3" to 12" lines.

What pressure and flow does it deliver?

3000 PSI at 12 GPM, the pump's rated output.

Is this gas or diesel?

Gas, 26.5 HP.

How big is the water tank?

200 gallons.

What hoses come standard with this unit?

350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose

Specifications

• Type: Sewer Jetter
• Warranty: 2 years (Spartan Tool equipment warranty)
• MPN: 7584FORC
• Pipe Size Range: 3" to 12"
• Rated Pressure (PSI): 3000
• Flow Rate (GPM): 12
• Fuel / Power: Gas
• Engine HP: 26.5
• Water Tank (gal): 200
• Standard Hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
• Remote Control: Yes
• Hose Footage Counter: Yes
• Hose Rewind: Electric
• Engine: Kohler ECH749 Command PRO EFI
• GVWR (lb): 3500
• Hitch: 2" Ball (Class II); optional pintle ring
• Overall Length (in): 126
• Overall Width (in): 57
• Overall Height (in): 58

Technical Data: Soldier

• Pipe sizes: 3" - 12"
• Max water pressure: 3,000 psi
• Max water flow: 12 GPM
• Water capacity: 200 gallons
• Standard hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
• Nozzles included: one penetrator and one closed stainless steel nozzle
• Leader hose: 15 ft leader hose
• Empty weight: 1,560 lbs
• Full weight: 3,220 lbs
• Overall length: 126"
• Overall width: 57"
• Overall height: 58"
• GVWR: 3500 lbs (1589 kg)
• GAWR: 3300 lbs (1498 kg)
• Hitch: 2" Ball Type (Class II) (Optional Pintle Ring)
• Tires: ST 205-75-R14 (Max Load: 1760 lbs each)
• Cold inflation pressure: 50 PSI / 350 kPa (each)
• Rim: 14" x 5.5" x 1865 lbs (each)
• Max recommended towing speed: 55 mph
• Engine model: ECH749 (Kohler Command PRO EFI)
• Engine cylinders: 2
• Horsepower: 26.5 Horsepower
• Bore & stroke: 3.3" x 2.7"
• Engine displacement: 45.5 cu. in.
• Fuel: Gasoline
• Fuel tank capacity: 8.0 gal
• Engine cooling (manual): Air
• Engine oil capacity: 2.0 US qt (SAE 10W-30 oil)
• Alternator: 20 Amp
• Spark plug: NGK BPR2ES (0.030" gap)

From Spartan Tool's own documentation (Soldier brochure, Soldier service manual).
