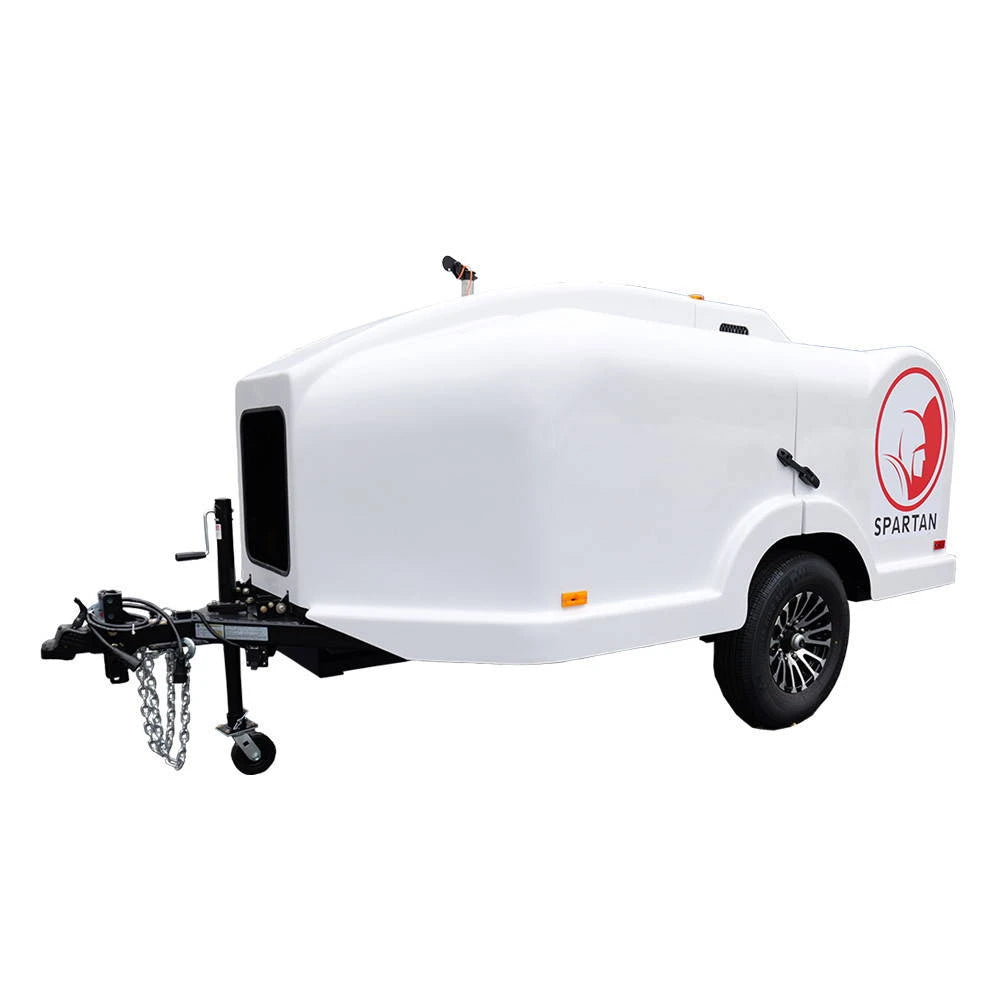

Spartan Tool Ultimate High-Flow Warrior Hydro-Jet, Diesel with Auto Antifreeze 7994DA00

The Spartan Tool Ultimate High-Flow Warrior Hydro-Jet, Diesel with Auto Antifreeze is a trailer-mounted sewer jetter rated 3000 PSI at 35 GPM for up to 24" lines.

gas or diesel full-size jetter Built to protect and serve. With fiberglass casing to protect and silence the entire machine, Spartan's premier trailer jet gives you 4,000 PSI at 18 GPM for the strength to clear almost any line. The patented 180° pivoting hose reel and optional four-function remote control let you handle the tightest spots. With pulsation and a full antifreeze system, the Warrior conquers tough clogs in any weather. Its clean finish gives you room to customize it with your company logo and colors, allowing you to easily transform the unit into your company's mobile billboard. rubber supply hose; 75' of 1/4" trap cleaning hose

Features

• Triplex ceramic plunger pump delivers 4,000 PSI at 18 GPM
• Electronic controlled pump pulsation with smart pressure engine setting
• Patented 180° pivoting hose reel and controls, with variable speed hydraulic rewind
• Tier IV diesel engine meets all US emission standards
• 300-gallon water tank with integrated baffles for towing while full
• Full-system winterization and antifreeze recirculation
• Lockable noise-reducing engine shroud protects unit while in tow
• Lift-up rear door for operator weather protection
• Torsion single-axle suspension with electric brakes
• Manhole hose protection
• Includes: Diesel
• Includes: Auto Antifreeze

Common Questions

What pipe sizes does this jetter clean?

It is rated for up to 24" lines.

What pressure and flow does it deliver?

3000 PSI at 35 GPM, the pump's rated output.

Is this gas or diesel?

Diesel, 74 HP.

How big is the water tank?

600 gallons.

What hoses come standard with this unit?

500' of 1/2" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap cleaning hose

Specifications

• Type: Sewer Jetter
• Warranty: 1 year (Spartan Tool limited warranty)
• MPN: 7994DA00
• Pipe Size Range: up to 24"
• Rated Pressure (PSI): 3000
• Flow Rate (GPM): 35
• Fuel / Power: Diesel
• Engine HP: 74
• Water Tank (gal): 600
• Standard Hoses: 500' of 1/2" high-pressure cleaning hose 100' of 5/8" rubber supply hose 75' of 1/4" trap cleaning hose
• Auto Antifreeze: Yes
• Hose Rewind: Hydraulic
• GVWR (lb): 9900
• Hitch: 2-5/16" Ball (Class IV)
• Overall Length (in): 191
• Overall Width (in): 73
• Overall Height (in): 74

Technical Data: Ultimate High-Flow Warrior

• Max water pressure: 3,000 psi
• Max water flow: 35 GPM
• Water capacity: 600 gallons
• Overall length: 191"
• Overall width: 73"
• Overall height: 74"
• GVWR: 9900 lbs (4495 kg)
• GAWR: 4700 lbs (2134 kg)
• Hitch: 2-5/16" Ball Type (Class IV)
• Tires: ST 225-75-R15BD (Max Load: 2540 lbs each)
• Cold inflation pressure: 65 PSI / 448 kPa (each)
• Rim: 15" x 6" x 2600 lbs (each)
• Max recommended towing speed: 55 mph
• Towing capacity: 12,000 lbs.
• Empty weight: 4,920 lbs.
• Full weight: 9,900 lbs.
• Engine cylinders: 4
• Bore & stroke: 3.5" x 4"
• Engine displacement: 151.5 cu. in.
• Fuel: Diesel Fuel Oil No. 2-D
• Fuel tank capacity: 20 gal
• Engine cooling: Water Cooled
• Engine oil capacity: 3.25 gal
• Electrical system: 12 Volt/Negative Ground
• Powered engagement clutch: Hayes bearing supported stub shaft
• Engine horsepower (diesel): 74-HP
• Water temperature limit: 140°F
• Hydraulic reservoir (rewind): 8 gal
• Hose rewind: Hydraulic pump & motor
• Pump type: Triplex ceramic plunger

From Spartan Tool's own documentation (Ultimate High Flow Warrior brochure, Warrior Combined Op Manual).
