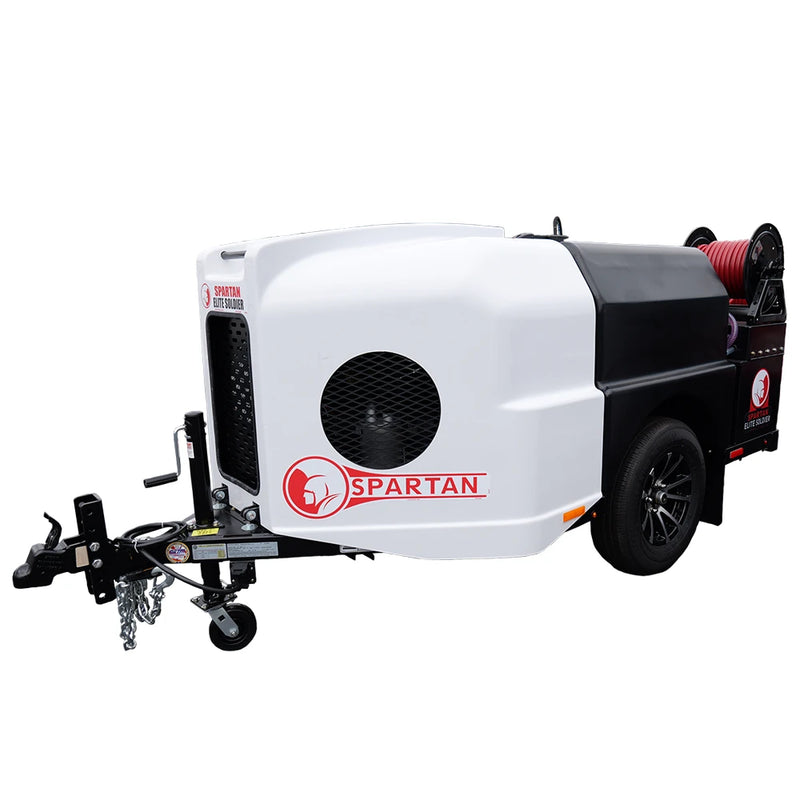

The Spartan Tool Elite Soldier Hydro-Jet with Auto Antifreeze is a trailer-mounted sewer jetter rated 4000 PSI at 10 GPM for 3" to 15" lines.
trap-cleaning hose Kohler Cutting roots and cost. The Elite Soldier, offering 4,000 PSI at 10 GPM, is Spartan Tool's newest mid-sized trailer jet offering superior performance and value for your investment. Form meets function with the new Elite Soldier, offering a range of available accessories to maximize versatility.
Features
- Triplex ceramic plunger pump delivers 4,000 PSI at 10 GPM
- Electronic controlled pump pulsation for maximum cleaning distance
- Hose reel pivots 180° for easy alignment with the pipe being cleaned
- Variable-speed power hose rewind
- 200-gallon water tank with integrated baffles allows unit to be towed while full of water
- Single-valve full-system winterization with antifreeze recirculation
- Noise-reducing engine shroud protects unit while in tow
- Engine shroud easily customized with your company's logo or colors
- Torsion single-axle suspension with electric brakes
- Electric start engine
- Includes: Auto Antifreeze
Common Questions
- What pipe sizes does this jetter clean?
- It is rated for 3" to 15" lines.
- What pressure and flow does it deliver?
- 4000 PSI at 10 GPM, the pump's rated output.
- Is this gas or diesel?
- Gas, 38 HP.
- How big is the water tank?
- 200 gallons.
- What hoses come standard with this unit?
- 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
Specifications
-
Type: Sewer Jetter
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 7584EA00
-
Pipe Size Range: 3" to 15"
-
Rated Pressure (PSI): 4000
-
Flow Rate (GPM): 10
-
Fuel / Power: Gas
-
Engine HP: 38.0
-
Water Tank (gal): 200
-
Standard Hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
-
Auto Antifreeze: Yes
-
Hose Rewind: Electric
-
Engine: Kohler ECH980 Command PRO EFI
-
GVWR (lb): 3500
-
Hitch: 2" Ball (Class II); optional pintle ring
-
Overall Length (in): 126
-
Overall Width (in): 57
-
Overall Height (in): 58
Technical Data: Elite Soldier
-
Pipe sizes: 3" - 15"
-
Max water pressure: 4,000 psi
-
Max water flow: 10 GPM
-
Water capacity: 200 gallons
-
Standard hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
-
Nozzles included: one penetrator and one closed stainless steel nozzle
-
Leader hose: 15-foot leader hose
-
Empty weight: 1,950 lbs
-
Full weight: 3,850 lbs
-
Overall length: 126"
-
Overall width: 57"
-
Overall height: 58"
-
GVWR: 3500 lbs (1589 kg)
-
GAWR: 3300 lbs (1498 kg)
-
Hitch: 2" Ball Type (Class II) (Optional Pintle Ring)
-
Tires: ST 205-75-R14 (Max Load: 1760 lbs each)
-
Cold inflation pressure: 50 PSI / 350 kPa (each)
-
Rim: 14" x 5.5" x 1865 lbs (each)
-
Max recommended towing speed: 55 mph
-
Engine model: ECH980 (Kohler Command PRO EFI)
-
Engine cylinders: 2
-
Bore & stroke: 3.54" x 3.09"
-
Engine displacement: 61 cu. in.
-
Fuel: Gasoline
-
Fuel tank capacity: 8.0 gal
-
Engine cooling: Air
-
Engine oil capacity: 2.1 US qt (10W-30 oil)
-
Alternator: 20 Amp
-
Spark plug: NGK BKR6ES (0.035" gap)
-
Hose rewind: 12V Electric Motor with Variable Speed Controller
From Spartan Tool's own documentation (Elite Soldier brochure, Elite Soldier service manual).
