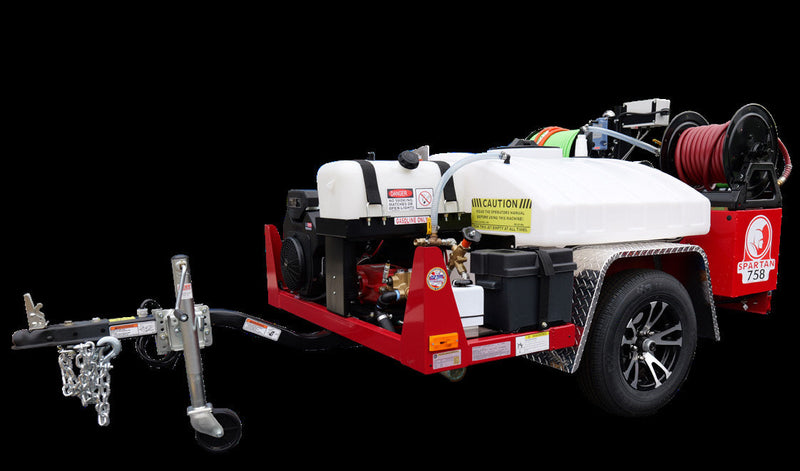

The Spartan Tool Model 758 Hydro-Jet with Remote (Trailer) is a trailer-mounted sewer jetter rated 3000 PSI at 12 GPM for 3" to 12" lines.
Trailer Time is money. Y ou can't afford to sacrifice either one. That's why the Model 758 trailer jet is built for maximum strength, speed, and dependability. Loaded with features, this machine is designed to save you energy and make you money. With 3,000 PSI at 12 GPM, a twin- cylinder, air-cooled EFI engine and adjustable pump pulsation for maximum cleaning distance, the Model 758 lets you tackle the toughest jobs in no time. Standard Hoses rubber supply hose; 75' of 1/4" trap-cleaning hose EFI engine with electric start and electronic ignition
Features
- Triplex ceramic plunger pump delivers 3,000 PSI @ 12 GPM
- Manual pump pulsation for maximum cleaning distance
- Power hose rewind
- Electric start engine
- Rear-mounted operator controls
- Manhole hose protection
- Wide-track chassis
- 13" tires with spoke wheels
- 150-gallon water tank
- Shut-down protection for low water, low engine oil pressure and high engine temperature
- Includes: Remote Control
Common Questions
- What pipe sizes does this jetter clean?
- It is rated for 3" to 12" lines.
- What pressure and flow does it deliver?
- 3000 PSI at 12 GPM, the pump's rated output.
- Is this gas or diesel?
- Gas, 26.5 HP.
- How big is the water tank?
- 150 gallons.
- What hoses come standard with this unit?
- 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
Specifications
-
Type: Sewer Jetter
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 7580F0R0
-
Pipe Size Range: 3" to 12"
-
Rated Pressure (PSI): 3000
-
Flow Rate (GPM): 12
-
Fuel / Power: Gas
-
Engine HP: 26.5
-
Water Tank (gal): 150
-
Standard Hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
-
Remote Control: Yes
-
Engine: ECH749
-
GVWR (lb): 2430
-
Hitch: 2" Ball (Class II)
-
Overall Length (in): 120
-
Overall Width (in): 57
-
Overall Height (in): 48
Technical Data: Model 758
-
Pipe sizes: 3" - 12"
-
Max water pressure: 3,000 psi
-
Max water flow: 12 GPM
-
Standard hoses: 350' of 3/8" high-pressure cleaning hose; 100' of 5/8" rubber supply hose; 75' of 1/4" trap-cleaning hose
-
Nozzles included: one penetrator and one closed stainless steel nozzle
-
Leader hose: 15 ft leader hose
-
Engine displacement: 45.6 cu in
-
Engine model: ECH749
-
Horsepower: 26.5
-
Engine cylinders: 2
-
Engine cooling: Air Cooled
-
Fuel: Gasoline
-
Fuel tank capacity: 8 Gal.
-
Bore & stroke: 3.07" x 3.07"
-
Engine oil capacity (with filter): 2.0 US qt
-
Alternator: 20 Amp
-
Battery: 12 VDC
-
Pump type: Triplex ceramic plunger
-
Pump max temperature: 140° F
-
Pump RPM: 1420
-
Pump plungers: 3
-
Hose rewind: Powered hose rewind
-
Empty weight (brochure): 1,260 lbs
-
Full weight: 2,440 lbs
-
Trailer weight (empty, manual): 1180 lbs
-
Overall length: 120"
-
Overall width: 57"
-
Overall height: 48"
-
Size (brochure): 120"W x 58"H x 53"D
-
GVWR: 2430 lbs
From Spartan Tool's own documentation (Model 758 manual, Model 758 service manual 2013, 758TrailerJet).
