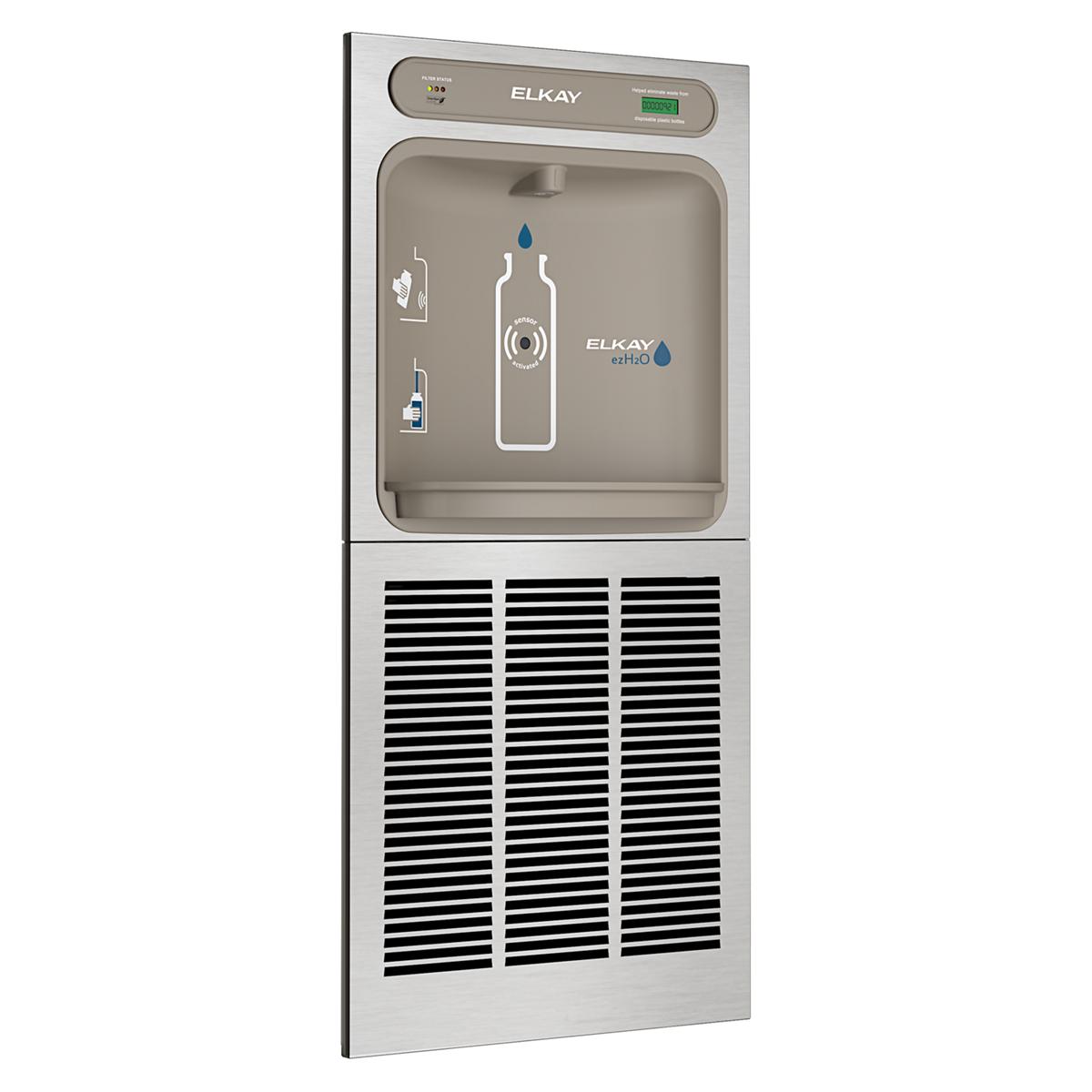

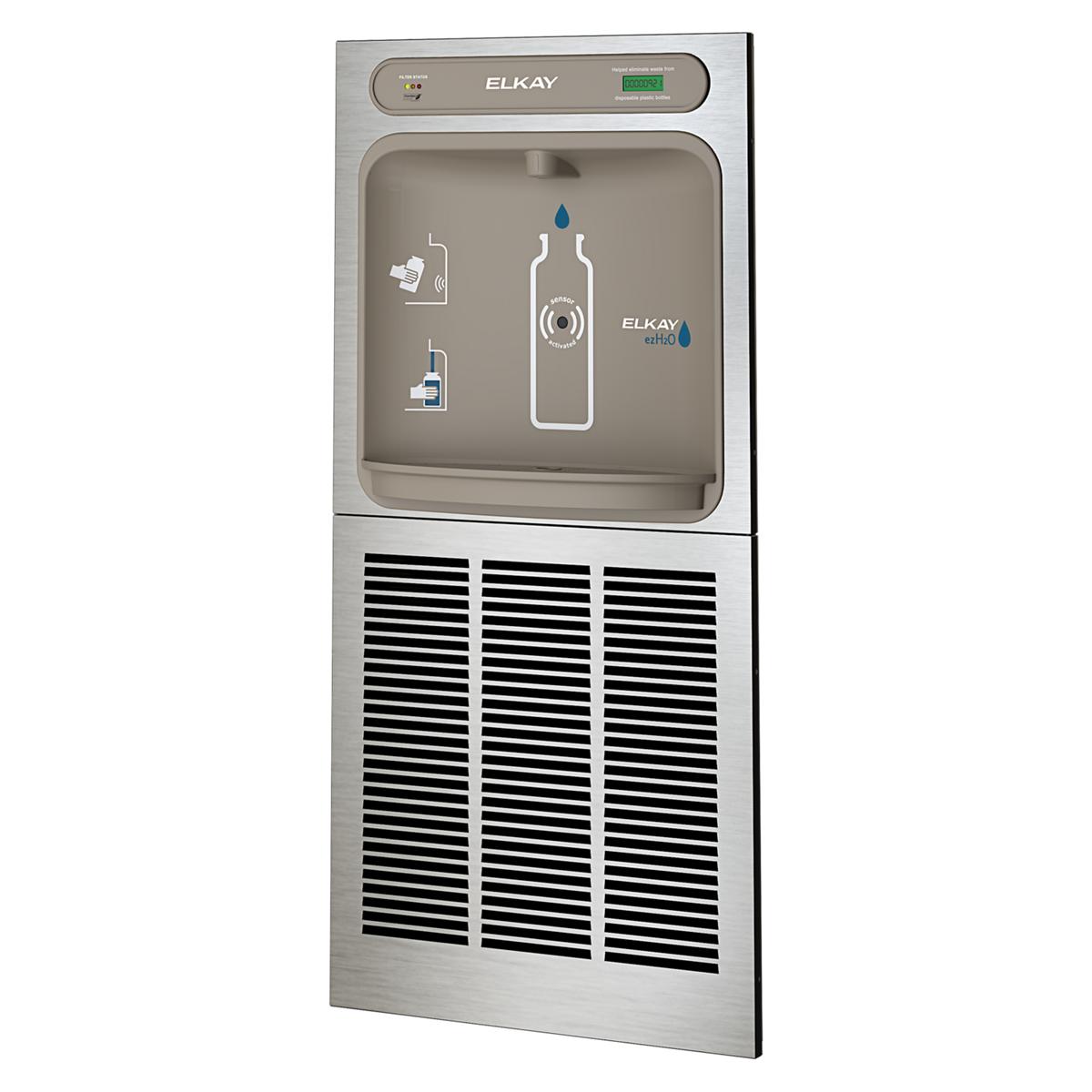

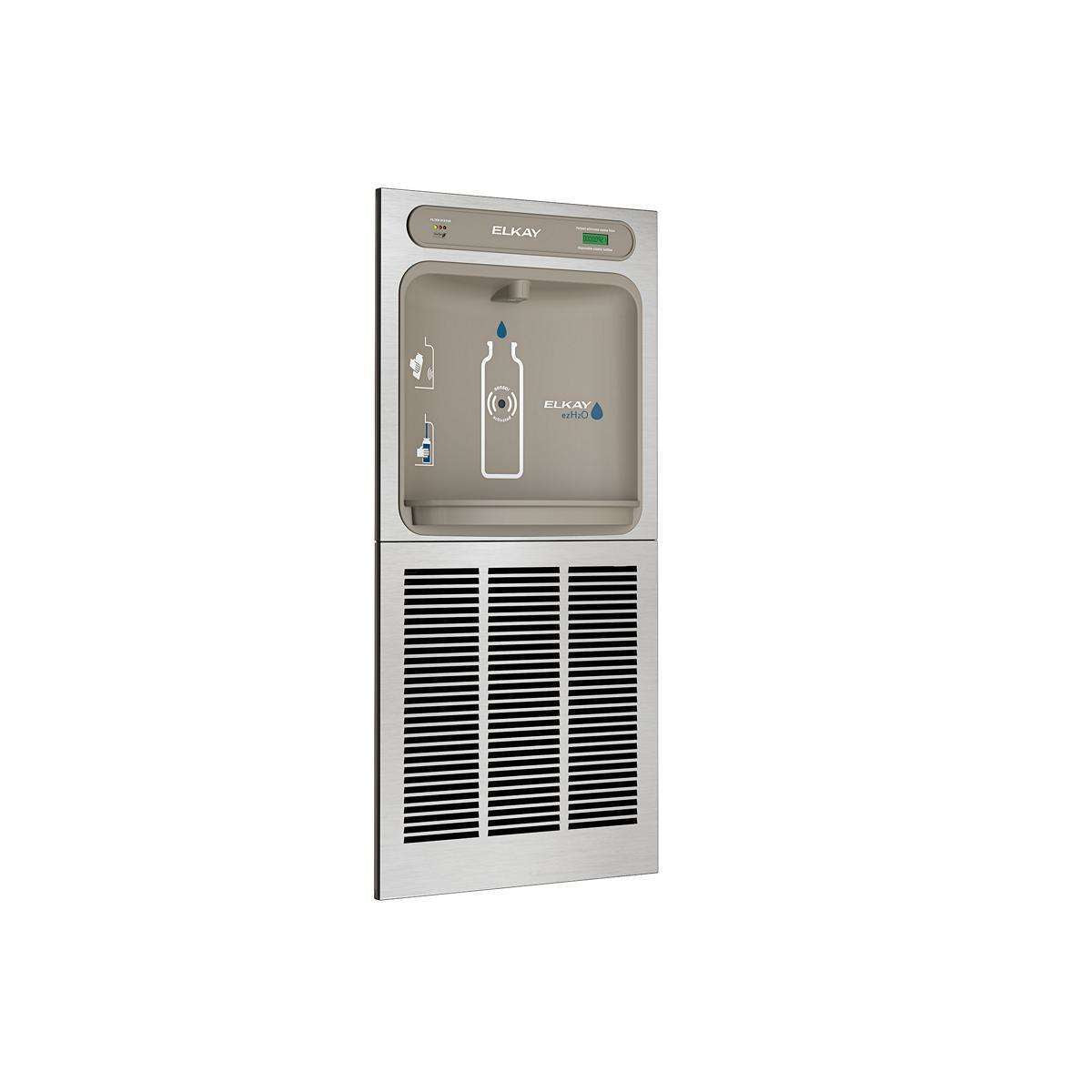

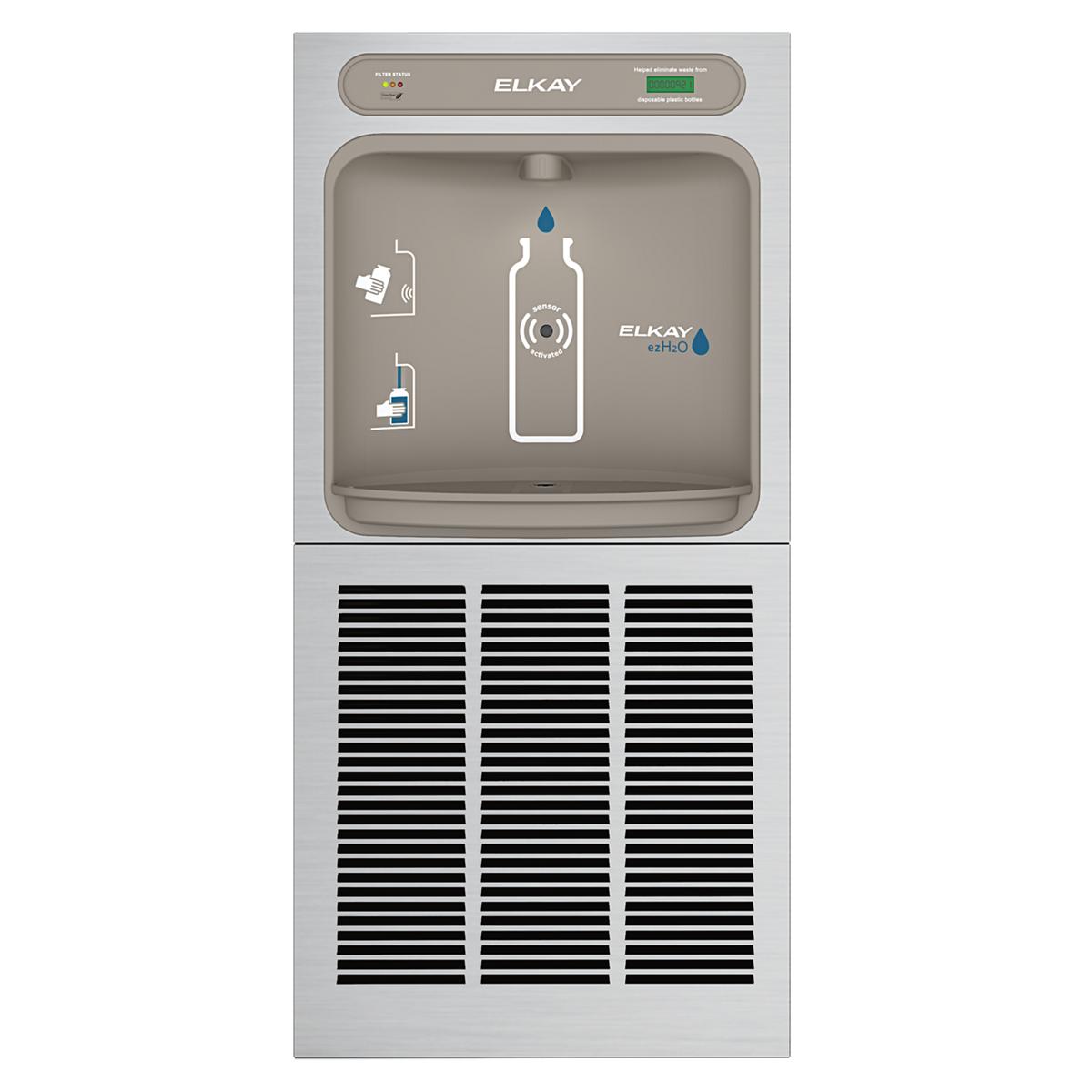

Elkay ezH2O In-Wall Bottle Filling Station, High Efficiency Filtered Refrigerated Stainless LZWSGRN8K

The Elkay LZWSGRN8K is a filtered bottle filling station, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design with high-efficiency ECH8GRN water chiller. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

• Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Touchless, sensor activation (bottle filler) designed for easy use.
• Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.
• High-performance compressor and insulation greatly reduce energy consumption.
• Visual filter monitor with LED filter status indicator for when filter change is necessary.
• The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
• Rated for indoor use.

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Is this ADA compliant?

Yes, this model meets ADA / ICC A117.1 accessibility requirements.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 260W.

How does this mount?

In-Wall installation.

Specifications

• Type: ezH2O In-Wall Bottle Filling Station High Efficiency Filtered Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Sensor
• Country of Origin: United States
• MPN: LZWSGRN8K
• Certifications: NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: Yes
• Stations Served: 1
• Bi-Level: No
• Bubbler Style: No Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 260
• Full Load Amps: 1.0
• Installation Location: Indoor
• Overall Length (in): 19.75
• Overall Width (in): 3.5
• Overall Height (in): 40.8125
