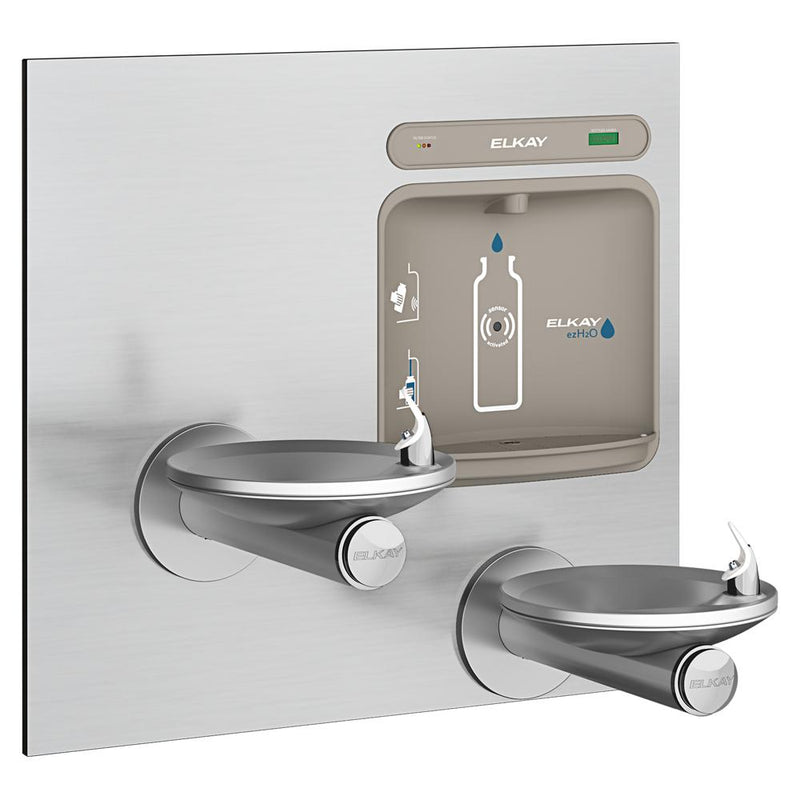

Elkay ezH2O Bottle Filling Station with Bi-Level Integral SwirlFlo Fountain, Filtered, Stainless Steel LZWS-EDFPBM117K

The Elkay LZWS-EDFPBM117K is a filtered bi-level bottle filling station, wall-mount. It features a stainless steel body. This model is certified lead-free for potable-water installations.

ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo® Fountain Filtered Non-Refrigerated Stainless. Features shall include Antimicrobial*, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.

Features

• Antimicrobial
• Green Ticker™
• Hands Free
• Laminar Flow
• Real Drain
• Visual Filter Monitor
• 115V/60Hz
• Dimensions
• L: 38-1/2IN
• H: 36-5/8IN
• Bubbler Style
• Flexi-Guard ® Safety Bubbler
• Mounting Type
• Wall Mount (In-Wall Frame/Plate)
• Chilling Capacity
• Non-refrigerated
• Installation Location
• Shipping Dimensions
• L: 41-5/8IN
• W: 45-1/4IN
• H: 39-7/8IN
• Shipping Weight
• Included With Product
• Fountain with Integral Bottle Filling Station (EDFPBM117WS-F)
• Mounting Frame (MFWS200)
• Ships In Multiple Boxes
• Code Compliance
• ASME A112.19.3/CSA B45.4
• CSA B45.4
• CSA C22.2 No. 120

Common Questions

Is this unit filtered?

Yes, it ships with an integrated filter cartridge.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

Is this refrigerated?

No, this unit dispenses ambient-temperature water only.

What electrical supply does it need?

115V/60Hz, 15W.

How does this mount?

Wall-Mount installation.

Specifications

• Type: ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo® Fountain Filtered Non-Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Sensor
• MPN: LZWS-EDFPBM117K
• Certifications: ASME A112.19.3/CSA B45.4, ADA, NSF-61, NSF-372, NSF-42, NSF-53, NSF-401, UL-399, UL
• Lead-Free: Yes
• Refrigerated: No
• Filtered: Yes
• Stations Served: 2
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard Safety Bubbler
• Electrical Requirement: 115V/60Hz
• Rated Watts: 15
• Full Load Amps: 1.0
• Installation Location: Indoor
• Overall Length (in): 38.5
• Overall Width (in): 19.0
• Overall Height (in): 36.625
