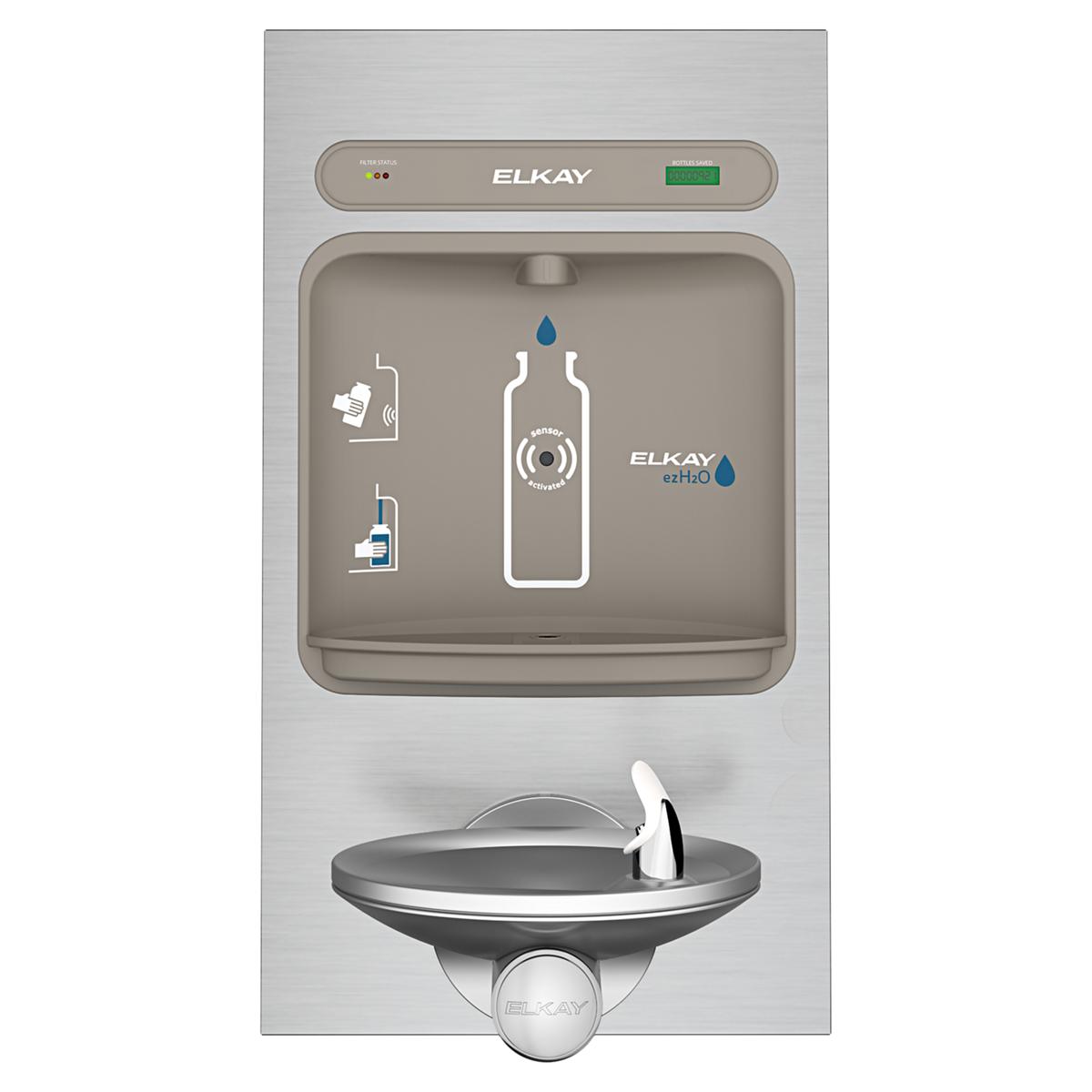

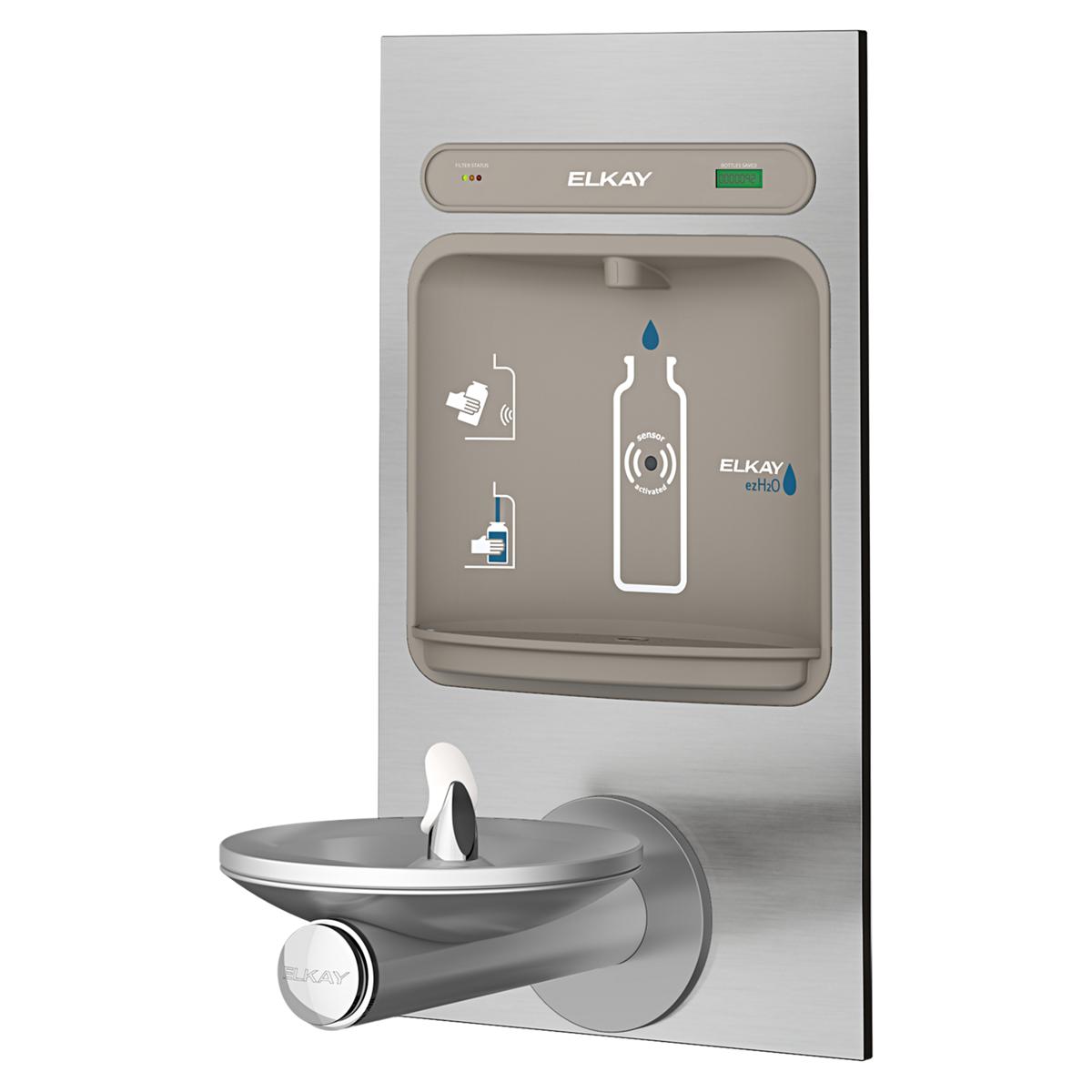

The Elkay LZWS-EDFPBM114K is a filtered bottle filling station, in-wall. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including single fountain with integral bottle filler. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Features
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler).
- Fill rate is 1.5 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- Is this refrigerated?
- No, this unit dispenses ambient-temperature water only.
- What electrical supply does it need?
- 115V/60Hz, 15W.
- How does this mount?
- In-Wall installation.
Specifications
- Type: ezH2O Bottle Filling Station with Integral SwirlFlo Fountain Filtered Non-Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Sensor + Push Button
- Country of Origin: United States
- MPN: LZWS-EDFPBM114K
- Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Refrigerated: No
- Filtered: Yes
- Stations Served: 1
- Bi-Level: No
- Bubbler Style: Flexi-Guard Safety Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 15
- Full Load Amps: 1.0
- Installation Location: Indoor
- Overall Length (in): 19.75
- Overall Width (in): 19.0
- Overall Height (in): 34.625
Product Information
Details
| Series | LZWS-EDFPBM114K | Device Type | ezH2O Bottle Filling Station with Integral SwirlFlo Fountain Filtered Non-Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Sensor + Push Button | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 1.0 |
| Installation location | Indoor | Overall height in | 34.625 in |
| Overall length in | 19.75 in | Overall width in | 19.0 in |
| Rated watts | 15 | Bubbler style | Flexi-Guard Safety Bubbler |
| Filtered | Yes | Stations | 1 |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | NSF-61 |
| NSF-372 | NSF-42 |
| NSF-53 | UL-399 |
| cUL | UL |
| ADA | — |
Compare with similar products
| Series | LZWS-EDFPBM114K
| LZWS-LRPBM8K
| LZWS8K
| LZWS-EDFPBM117K
| LZWS-EDFP217K
| LZWSMDK
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | ezH2O Bottle Filling Station with Integral SwirlFlo Fountain Filtered Non-Refrigerated Stainless
| ezH2O Bottle Filling Station with Integral SwirlFlo Fountain Refrigerated Filtered Refrigerated Stainless
| ezH2O In-Wall Bottle Filling Station Filtered Refrigerated Stainless
| ezH2O Bottle Filling Station with Bi-Level Integral SwirlFlo Fountain Filtered Non-Refrigerated Stainless
| ezH2O Bottle Filling Station with Integral Soft Sides Fountain Filtered Non-Refrigerated Stainless
| ezH2O In-Wall Bottle Filling Station with Mounting Frame Filtered Non-Refrigerated Stainless
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Operation | Sensor + Push Button
| Sensor + Push Button
| Sensor
| Sensor + Push Button
| Sensor + Push Button
| Sensor
|
| Certifications | ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
| NSF-61, NSF-372, NSF-42, NSF-53, UL-399, cUL, UL, ADA
|
