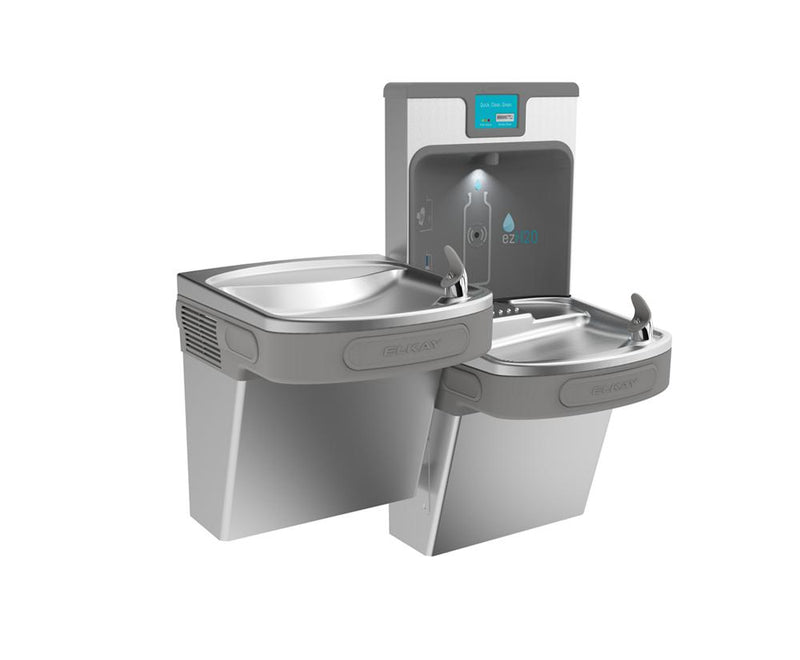

The Elkay LZSTL8WSSP is a filtered bi-level bottle filling station, wall-mount, 8.0 GPH. It features a stainless steel body.
Enhanced Bottle Filler & Bi -Level ADA Cooler Refrigerated Stainless High Capacity Lead Reducing Drop Down Wrapper . Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Quick Filter Change, Alcove Light . Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
Features
- Compressor: Hermetically -sealed, reciprocating type, single phase.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is
- Cooling Unit: Combination tube -tank type. Continuous copper tubing
- Refrigerant Control: Refrigerant R -134a is controlled by
- Temperature Control: Easily accessible enclosed adjustable thermostat
- Drop-down wrapper provides easy access to filter from front and side
- The included 6,000-gallon filter is tested and certified to NSF 42, 53
- Touchless, sensor activation (bottle filler) designed for easy use; easy -
- Hermetically sealed refrigeration system provides chilled water
- Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal
- Visual filter monitor with LED filter status indicator for when filter
- System automatically recognizes new filter and updates LED lights
- Green Ticker™ informs user of number of 20 oz. plastic water bottles
- Key plastic components are manufactured with silver ion antimicrobial
- Low-energy LED light encourages use, assists with filling dark bottles
- One-box packaging so the cooler and bottle filler ship together • Connected-ready; use our retrofit accessory to set up wireless
Common Questions
- Is this unit filtered?
- Yes, it ships with an integrated filter cartridge.
- Does this satisfy the ADA hi/lo pair requirement?
- Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 370W.
- How does this mount?
- Wall-Mount installation.
Specifications
-
Type: Enhanced Bottle Filler & Bi-Level ADA Cooler Refrigerated
-
Body Material: Stainless Steel
-
Operation: Sensor
-
MPN: LZSTL8WSSP
-
Certifications: ADA, NSF-42, UL-399, UL
-
Chilling Capacity (GPH): 8.0
-
Refrigerated: Yes
-
Filtered: Yes
-
Stations Served: 2
-
Bi-Level: Yes
-
Bubbler Style: Flexi-Guard Safety Bubbler
-
Electrical Requirement: 115V/60Hz
-
Rated Watts: 370
-
Full Load Amps: 5.0
-
Installation Location: Indoor
-
Overall Length (in): 36.75
-
Overall Width (in): 19.0
-
Overall Height (in): 39.5
