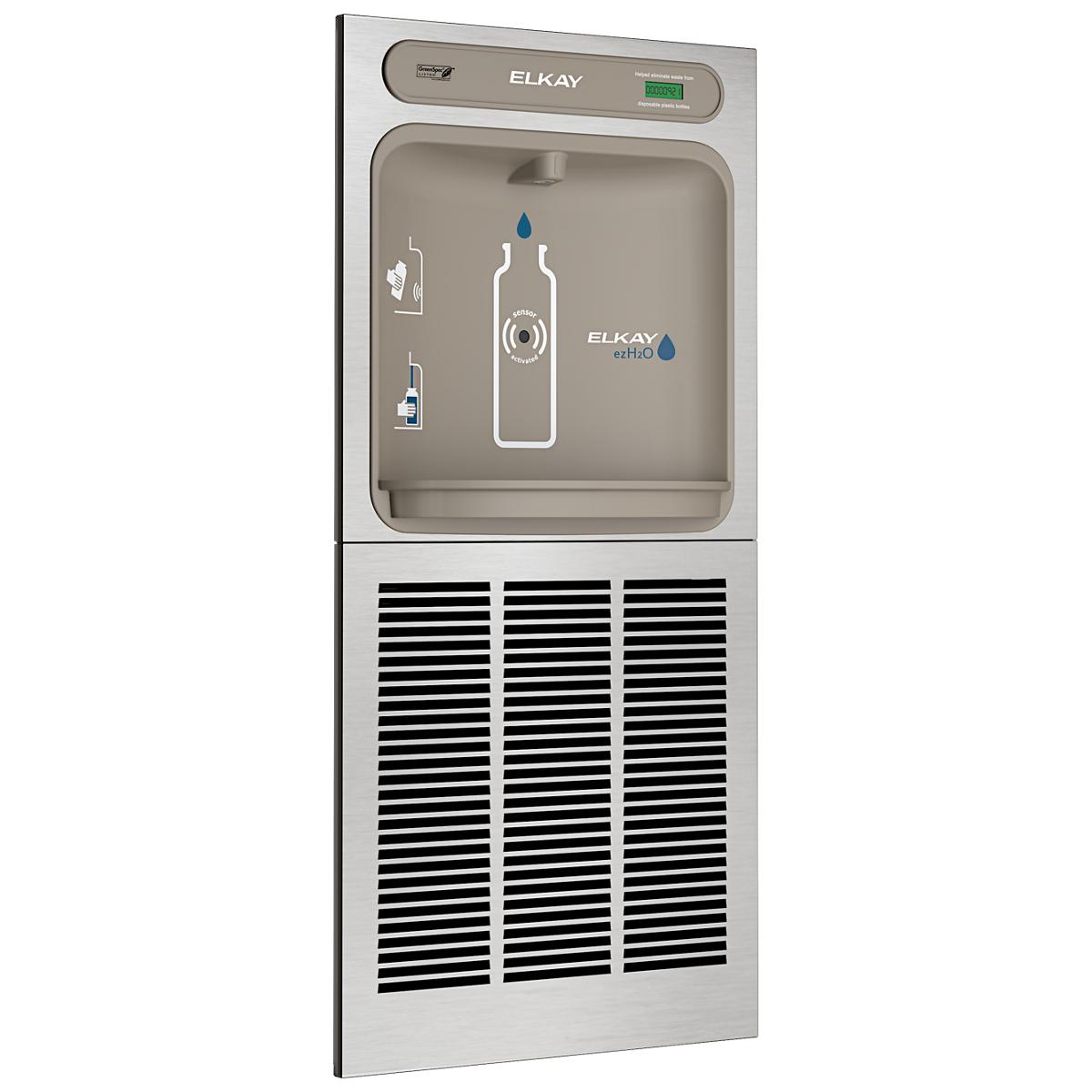

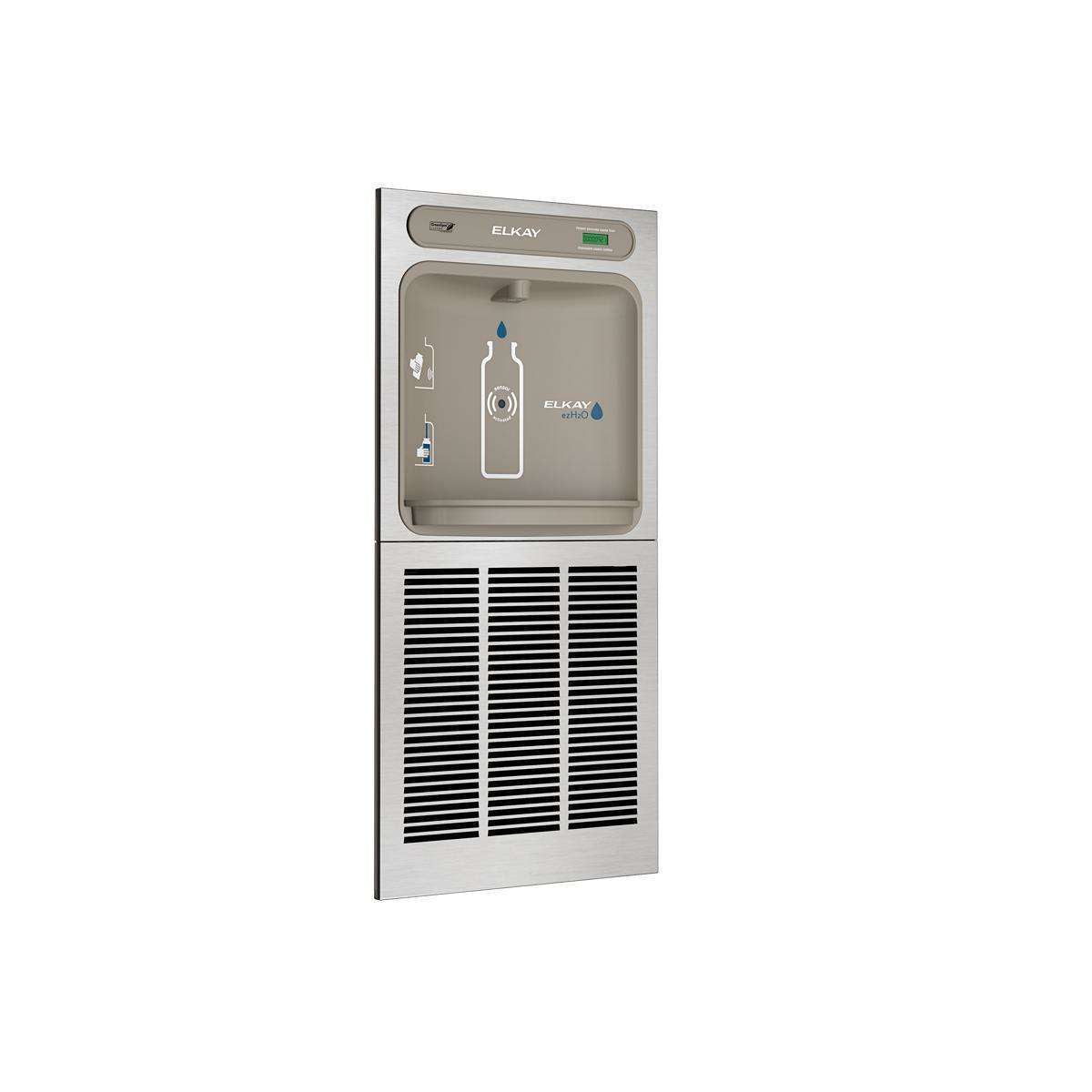

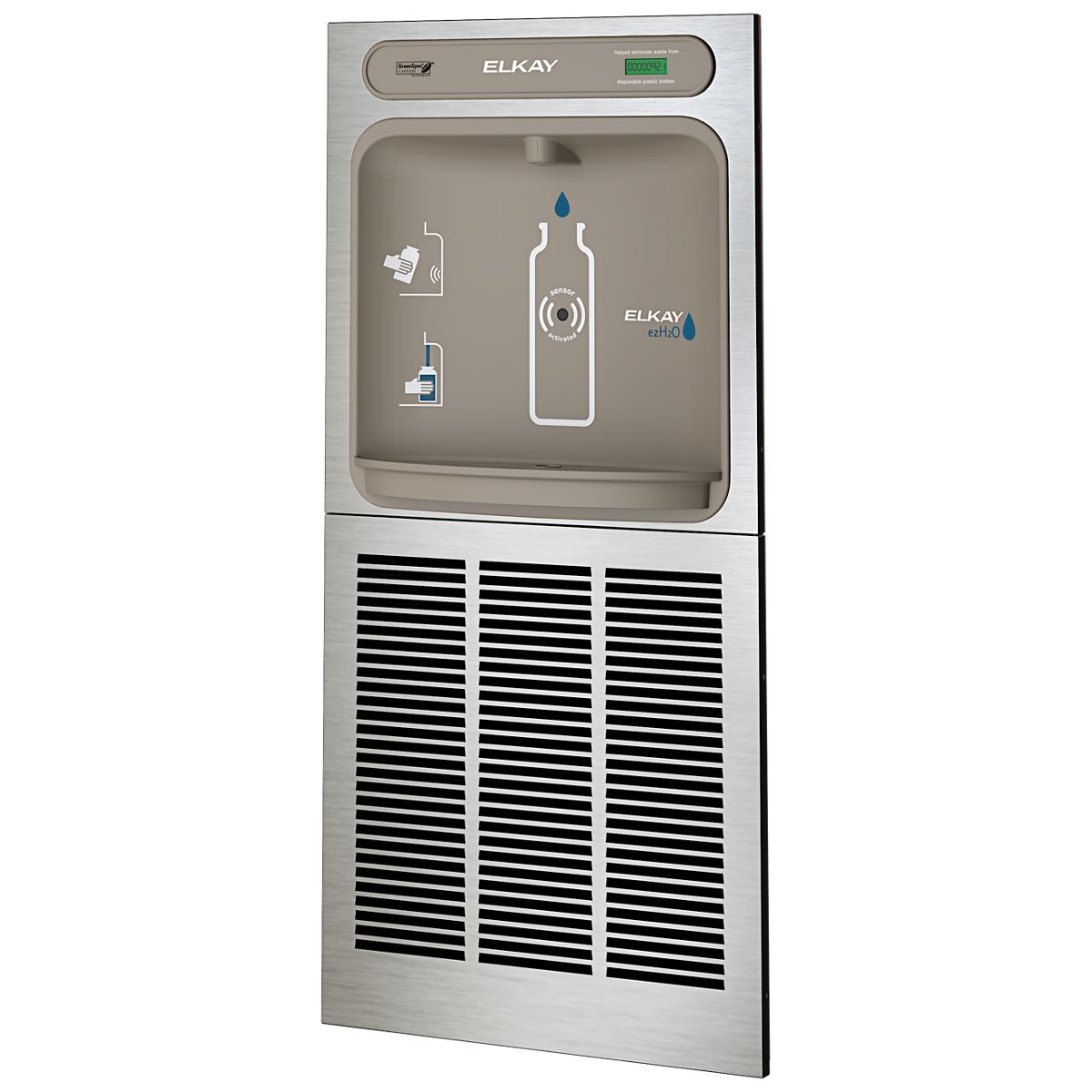

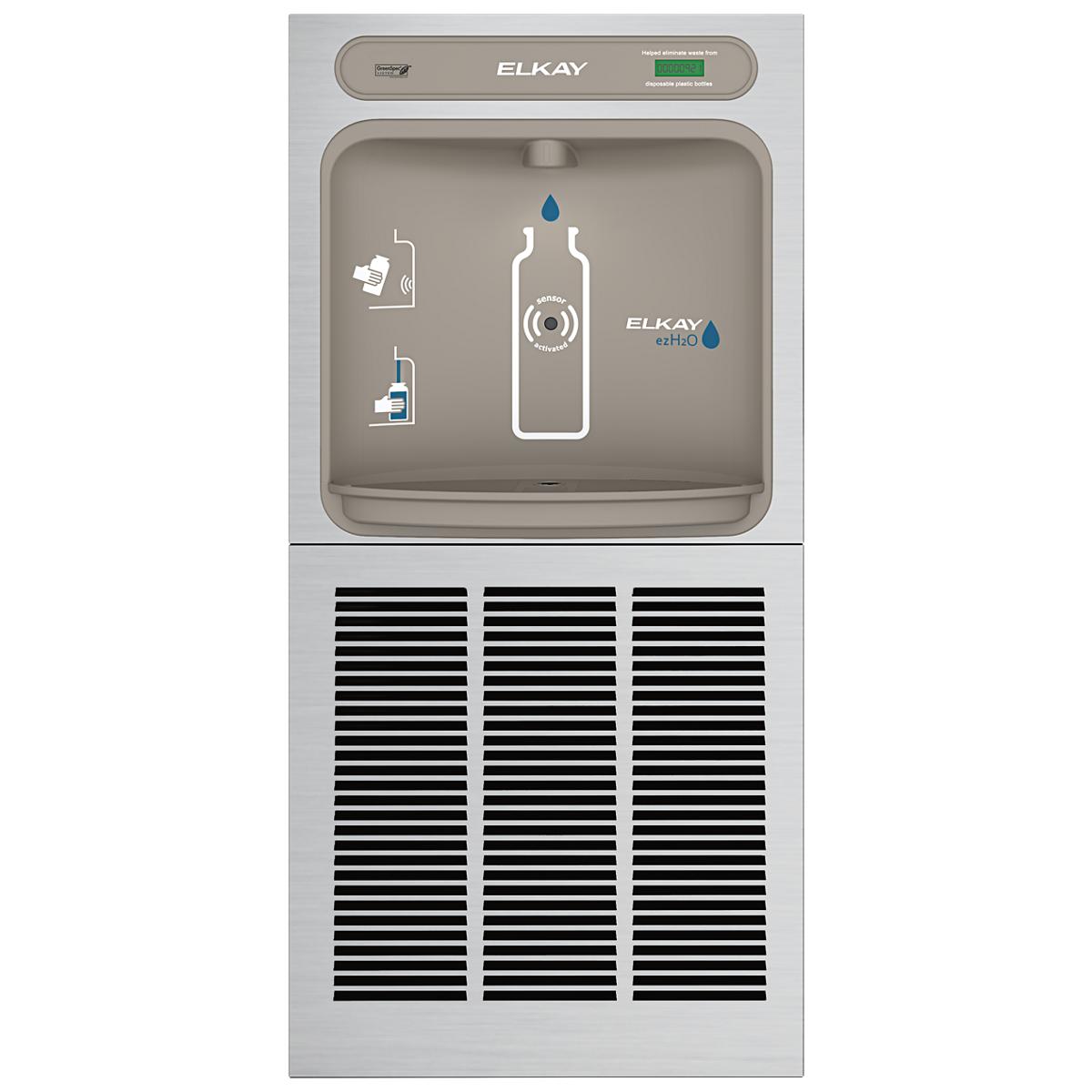

The Elkay EZWSGRN8K is a non-filtered bottle filling station, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design with high-efficiency ECH8GRN water chiller. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Features
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Touchless, sensor activation (bottle filler) designed for easy use.
- Fill rate is 1.1 GPM.
- High-performance compressor and insulation greatly reduce energy consumption.
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
- Rated for indoor use.
Common Questions
- Is this unit filtered?
- No, this is a non-filtered unit.
- Is this ADA compliant?
- Yes, this model meets ADA / ICC A117.1 accessibility requirements.
- How much chilled water does it deliver?
- 8.0 GPH of 50°F water per ASHRAE 18 test conditions.
- What electrical supply does it need?
- 115V/60Hz, 260W.
- How does this mount?
- In-Wall installation.
Specifications
- Type: ezH2O In-Wall Bottle Filling Station High Efficiency Non-Filtered Refrigerated Stainless
- Body Material: Stainless Steel
- Operation: Sensor
- Country of Origin: United States
- MPN: EZWSGRN8K
- Certifications: NSF-61, NSF-372, UL-399, cUL, UL, ADA
- Lead-Free: Yes
- Chilling Capacity (GPH): 8.0
- Refrigerated: Yes
- Filtered: No
- Stations Served: 1
- Bi-Level: No
- Bubbler Style: No Bubbler
- Electrical Requirement: 115V/60Hz
- Rated Watts: 260
- Full Load Amps: 1.0
- Installation Location: Indoor
- Overall Length (in): 19.75
- Overall Width (in): 3.5
- Overall Height (in): 40.8125
Product Information
Details
| Series | EZWSGRN8K | Device Type | ezH2O In-Wall Bottle Filling Station High Efficiency Non-Filtered Refrigerated Stainless |
| Lead Free | Yes | Body Material | Stainless Steel |
| Operation | Sensor | Baa | USA |
| Electrical requirement | 115V/60Hz | Full load amps | 1.0 |
| Installation location | Indoor | Overall height in | 40.8125 in |
| Overall length in | 19.75 in | Overall width in | 3.5 in |
| Rated watts | 260 | Bubbler style | No Bubbler |
| Chilling capacity gph | 8.0 | Refrigerated | Yes |
| Stations | 1 | — | — |
Certifications & Standards
| NSF-61 | NSF-372 |
| UL-399 | cUL |
| UL | ADA |
