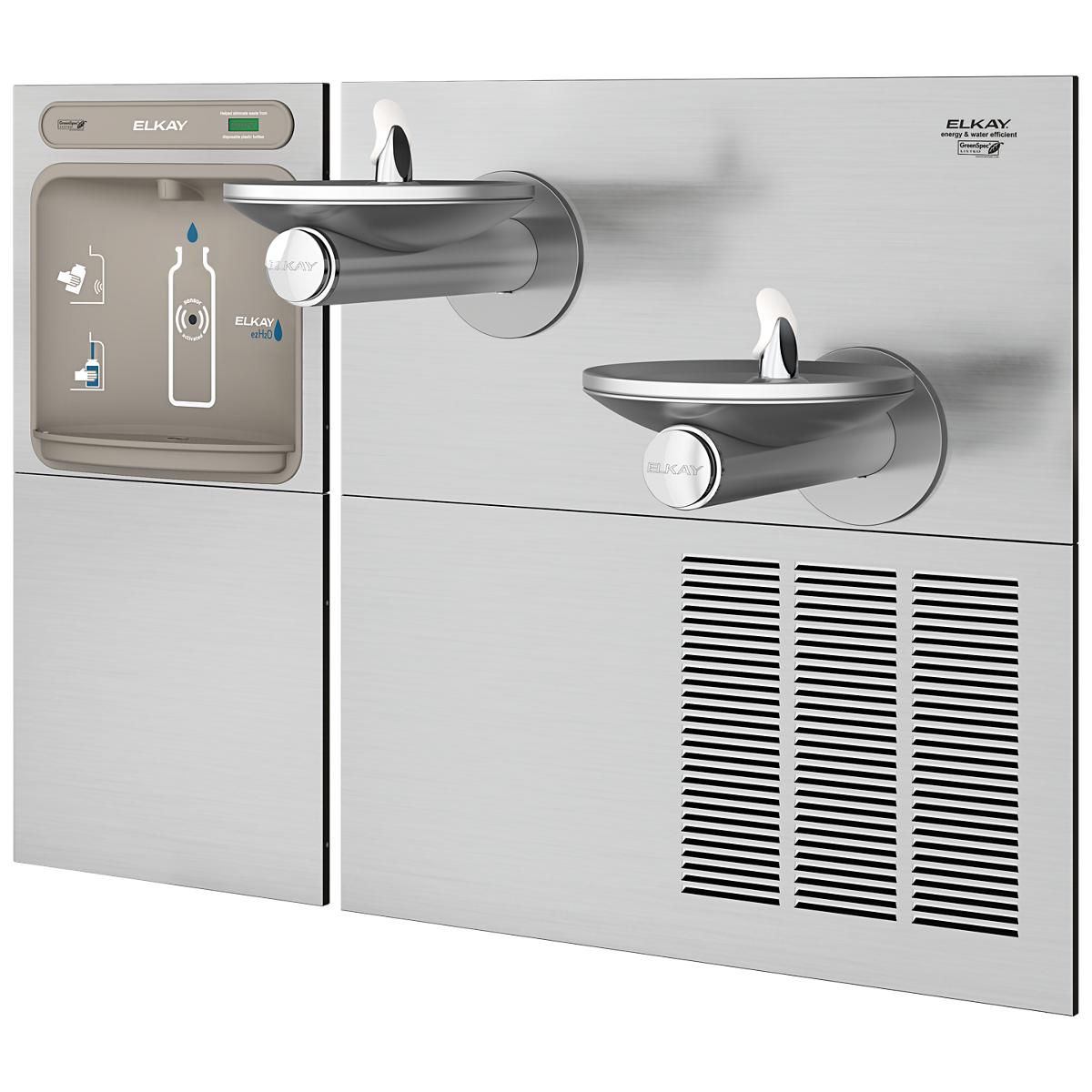

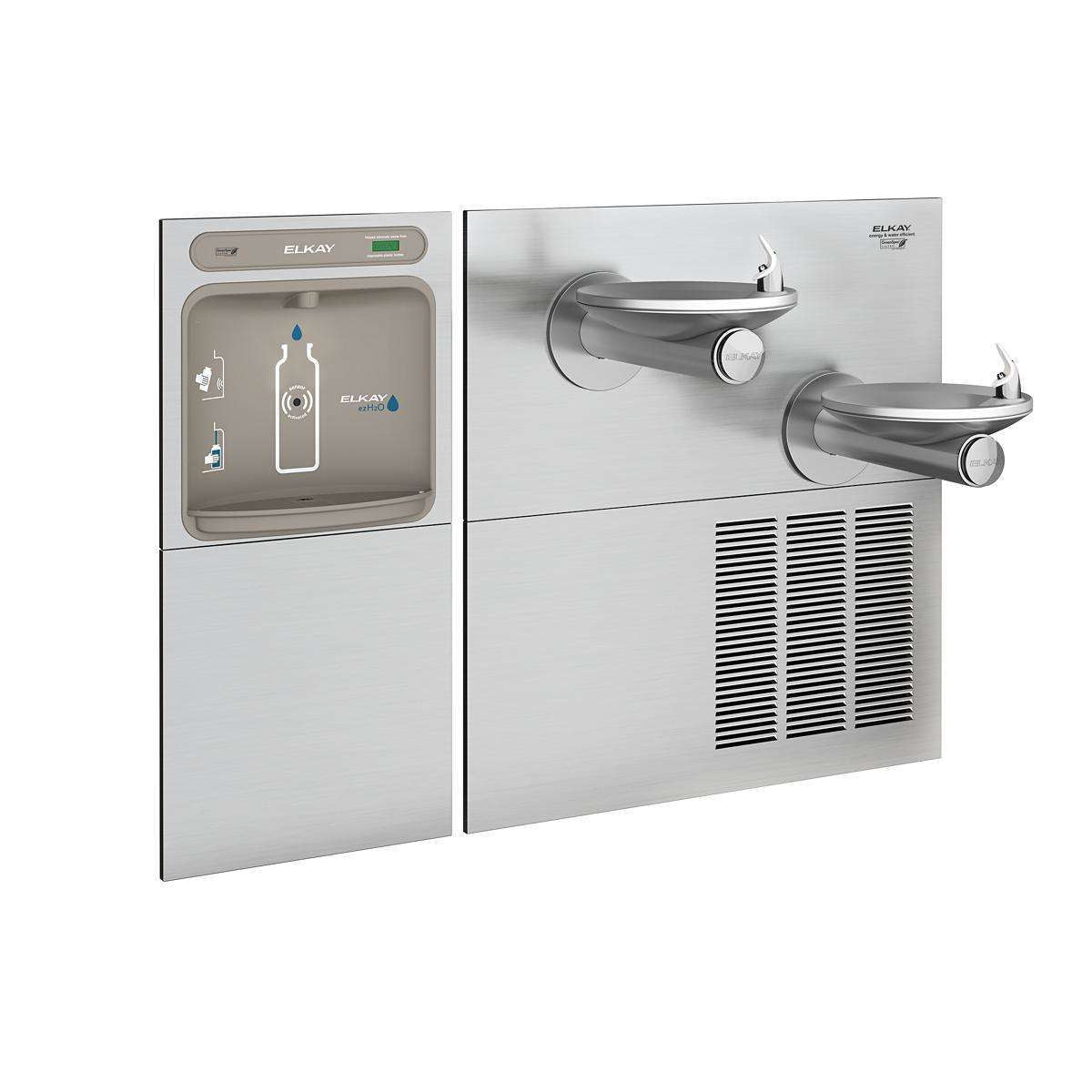

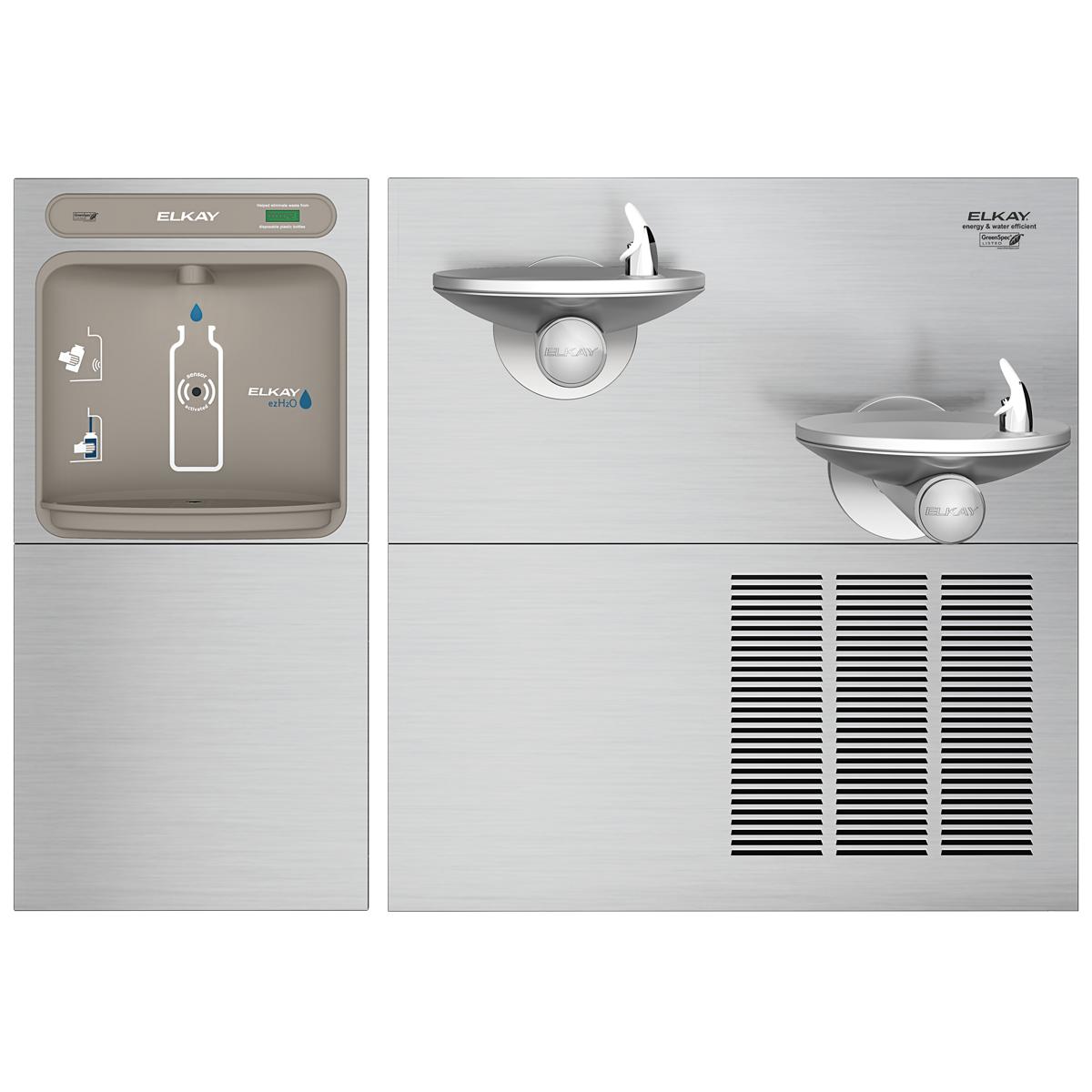

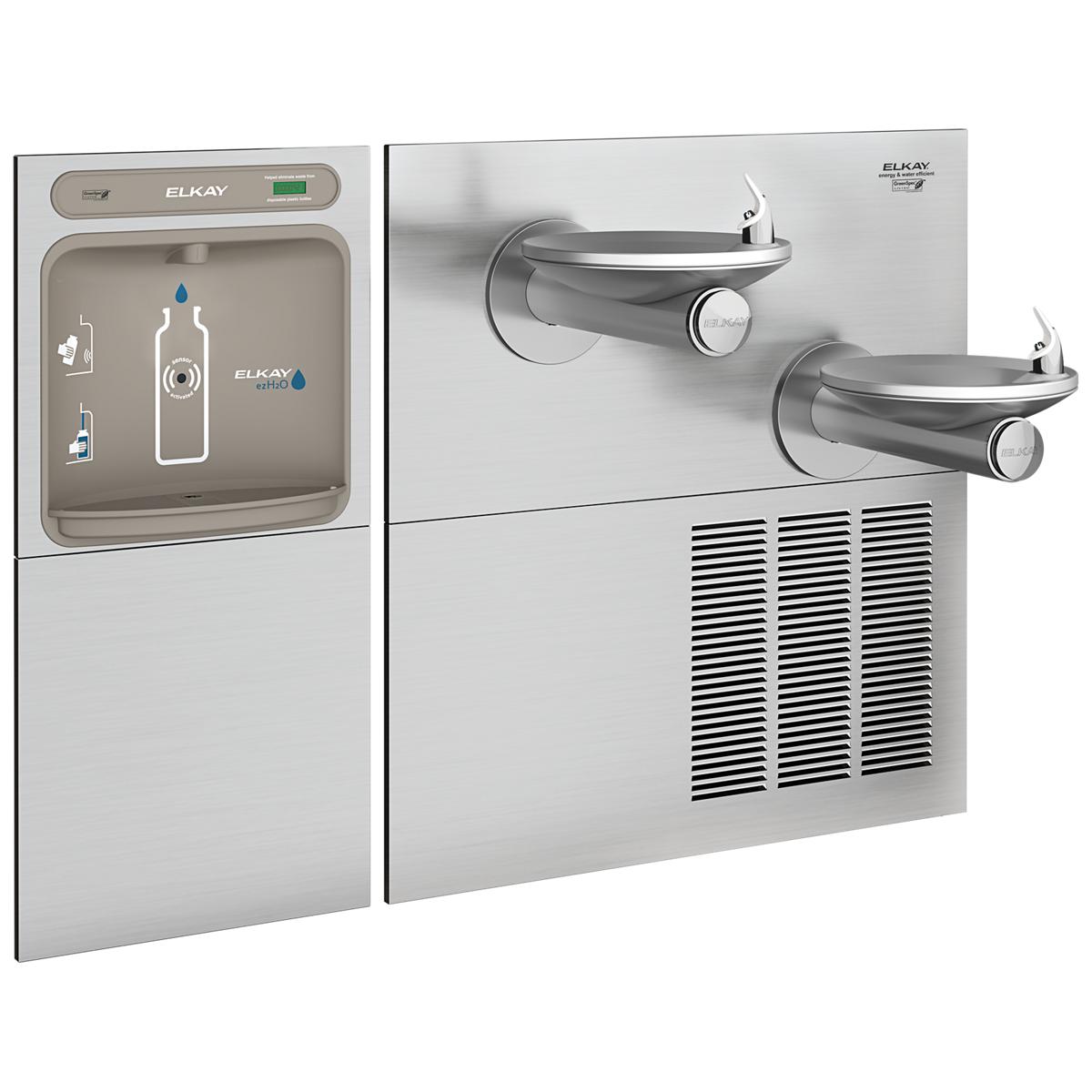

Elkay ezH2O Bottle Filling Station & SwirlFlo Bi-Level Fountain, High Efficiency Non-Filtered Refrigerated Stainless EZWS-SFGRN28K

The Elkay EZWS-SFGRN28K is a non-filtered bi-level bottle filling station, in-wall, 8.0 GPH. It features a stainless steel body. This model is certified lead-free for potable-water installations.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including the bottle filling station and refrigerated fountain. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

• Styles available with either SwirlFlo high-efficiency fountain or Soft Sides refrigerated fountain.
• Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• Touchless, sensor activation designed for easy use (bottle filler); easy-to-operate push-button activation (bubbler).
• Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
• High-performance compressor and insulation reduce energy consumption to demonstrate a commitment to sustainability.
• Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
• Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
• Real drain system eliminates standing water.
• Flexi-Guard StreamSaver bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms and reduce water waste.
• Rated for indoor use.

Common Questions

Is this unit filtered?

No, this is a non-filtered unit.

Does this satisfy the ADA hi/lo pair requirement?

Yes, this is a bi-level unit that combines a wheelchair-accessible and a standing-height station in one fixture, satisfying the ADA 2010 / ICC A117.1 §602 substitution.

How much chilled water does it deliver?

8.0 GPH of 50°F water per ASHRAE 18 test conditions.

What electrical supply does it need?

115V/60Hz, 260W.

How does this mount?

In-Wall installation.

Specifications

• Type: ezH2O Bottle Filling Station & SwirlFlo Bi-Level Fountain High Efficiency Non-Filtered Refrigerated Stainless
• Body Material: Stainless Steel
• Operation: Sensor + Push Button
• Country of Origin: United States
• MPN: EZWS-SFGRN28K
• Certifications: ASME A112.19.3/CSA B45.4, NSF-61, NSF-372, UL-399, cUL, UL, ADA
• Lead-Free: Yes
• Chilling Capacity (GPH): 8.0
• Refrigerated: Yes
• Filtered: No
• Stations Served: 3
• Bi-Level: Yes
• Bubbler Style: Flexi-Guard StreamSaver
• Electrical Requirement: 115V/60Hz
• Rated Watts: 260
• Full Load Amps: 1.0
• Installation Location: Indoor
• Overall Length (in): 58.25
• Overall Width (in): 19.0
• Overall Height (in): 40.8125
