Similar products
Specifications
Description

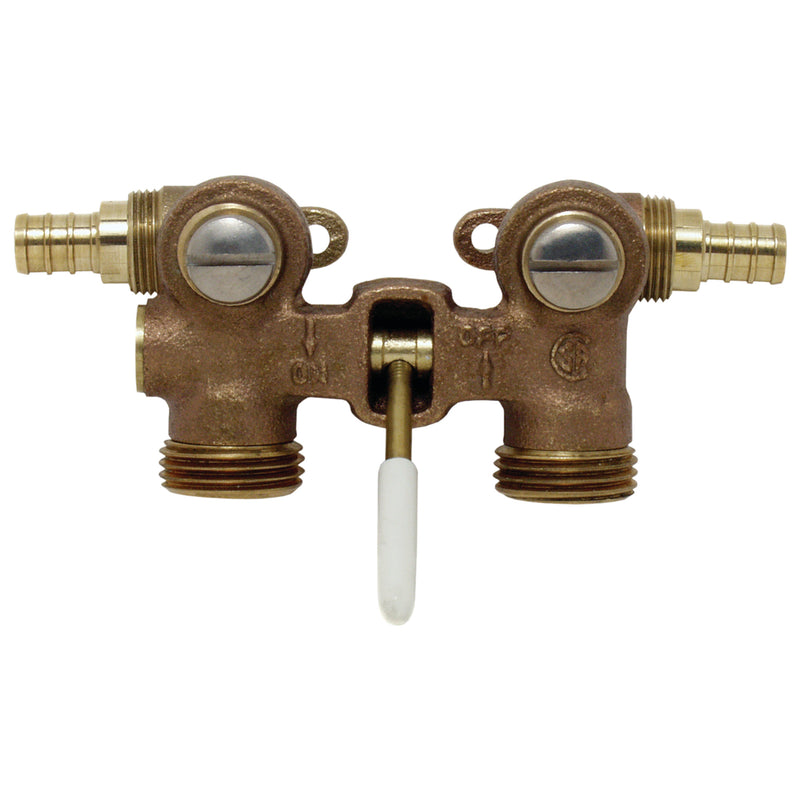

The Watts WPWMV-2 is a washing machine shutoff valve with a PEX Crimp inlet and a Hose Thread (GHT) outlet.
This WaterPEX® washing machine shut off valve makes it quick and easy to shut off all water supply to the washing machine. Designed to fit standard washing machine connections, the valve features swivel CrimpRing™ WaterPEX connections. Water supply is shut off with a single easy lever handle.
Features
- Brass valve with plastic enclosure
- Quarter turn valve
- White enclosure
- Threaded shank with nut
Common Questions
- What tubing does this connect to?
- The WPWMV-2 uses PEX crimp connections — it is a true PEX valve, not a push-to-connect fitting, so it needs PEX tubing and a crimp tool. It is not interchangeable with copper or CPVC without an adapter.
- Is this a quarter-turn or a multi-turn stop?
- Quarter-turn. The handle moves 90° from full open to full closed against a ball, so there is no stem packing to seize or weep — the usual failure of an old multi-turn stop that has not been operated in years.
- What outlet does this have?
- A 3/4 in male garden-hose thread (MGHT) outlet — it takes a standard garden hose or washing machine hose directly, with no adapter.
- Does this shut the water off automatically if a hose bursts?
- No — this is a manual valve. You get hot and cold shutoff from one handle, but someone has to turn it, and most washer hoses fail while nobody is home. For leak-triggered shutoff that works unattended, use the Watts A2C IntelliFlow, which senses the machine's current and closes both inlets on its own when its floor sensor sees water.
Specifications
- Connection: PEX
- Pack Quantity: 24
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: WPWMV-2
- Lead-Free: No
- Turn Type: Quarter-Turn
- Inlet Connection: PEX Crimp
- Outlet Connection: Hose Thread (GHT)
- Outlets: 2
- Automatic Shutoff: No
- Leak Sensor: No
- Hot & Cold Rated: Yes
- Contractor (Bulk) Pack: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Install Sheet |
|---|---|---|---|---|
| 0650922 | 098268318036 | United States | 1 Year Limited | Download |
Dimensions
| End Connection | PEX | — | — |
Details
| Series | WPWMV | Pack Qty | 24 |
| Turn Type | Quarter-Turn | Inlet Connection Type | PEX Crimp |
| Outlet Connection Type | Hose Thread (GHT) | Outlet Count | 2 |
| Hot Cold Rated | Yes | — | — |
Compare with similar products
| Turn Type | Quarter-Turn
| Quarter-Turn
| Quarter-Turn
| Quarter-Turn
| — |
| Inlet Connection Type | PEX Crimp
| PEX Crimp
| PEX Crimp
| PEX Crimp
| Sweat
|
| Outlet Connection Type | Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
|
| Outlet Count | 2
| 2
| 2
| 2
| 2
|
| Includes | — | — | Faceplate, Wall Box
| Wall Box
| Faceplate
|
| Hot Cold Rated | Yes | Yes | Yes | Yes | Yes |
| Series | WPWMV
| 2
| WPWME-1
| WPWMCC-1
| 2M2 DWB
|
| Country Of Origin | United States
| Taiwan
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Install Sheet | — | ||||
| End Connection | PEX
| PEX
| PEX
| PEX
| Sweat
|
| Max Pressure PSI | — | 150.0 psi | — | — | 150.0 psi |
| Max Temp °F | — | 180.0 °F | — | — | 180.0 °F |
| Pack Qty | 24
| 16
| 10
| — | 6
|
