The Watts DWBM2 is a washing machine shutoff valve with a Sweat inlet and a Hose Thread (GHT) outlet. It is rated to 150 psi and up to 180°F.

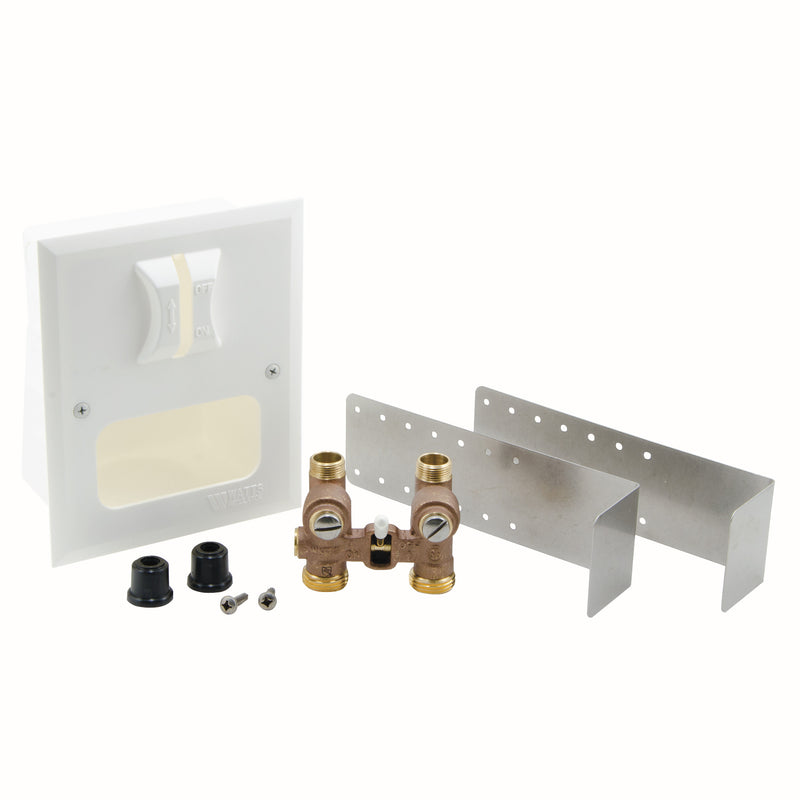

This Duo-Clozure™ washing machine shutoff valve is used in washing machine applications to manually control water flow and pressure from the hot and cold water supply piping to the flexible hoses feeding a washing machine. It prevents the washing machine hoses from bursting thereby preventing water damage to the home. It consists of a washing machine shutoff valve with 1/2 inch ell solder connections, adjustable stud mounting brackets, a single Duo-Cloz lever to control shutoff of both hot and cold water supplies, and water pressure test plugs. Includes a decorative white faceplate that can be painted or papered to match wall decor. The maximum pressure is 150 psi (10.3 bar).
Features
- Decorative white faceplate
- Side or top water supply piping
- Water pressure test plugs
- Easy to install
Common Questions
- What outlet does this have?
- A 3/4 in male garden-hose thread (MGHT) outlet — it takes a standard garden hose or washing machine hose directly, with no adapter.
- Does this shut the water off automatically if a hose bursts?
- No — this is a manual valve. You get hot and cold shutoff from one handle, but someone has to turn it, and most washer hoses fail while nobody is home. For leak-triggered shutoff that works unattended, use the Watts A2C IntelliFlow, which senses the machine's current and closes both inlets on its own when its floor sensor sees water.
Specifications
- Connection: Sweat
- Max Pressure (psi): 150
- Pack Quantity: 6
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: DWBM2
- Temperature: up to 180°F
- Lead-Free: No
- Inlet Connection: Sweat
- Outlet Connection: Hose Thread (GHT)
- Outlets: 2
- Automatic Shutoff: No
- Leak Sensor: No
- Includes: Faceplate
- Hot & Cold Rated: Yes
- Contractor (Bulk) Pack: No
Product Information
Dimensions
| End Connection | Sweat | — | — |
Details
| Series | 2M2 DWB | Max Pressure PSI | 150.0 psi |
| Max Temp °F | 180.0 °F | Pack Qty | 6 |
| Inlet Connection Type | Sweat | Outlet Connection Type | Hose Thread (GHT) |
| Outlet Count | 2 | Includes | Faceplate |
| Hot Cold Rated | Yes | — | — |
Compare with similar products
| Turn Type | — | Quarter-Turn
| Quarter-Turn
| Quarter-Turn
| Quarter-Turn
|
| Inlet Connection Type | Sweat
| PEX Crimp
| PEX Crimp
| PEX Crimp
| PEX Crimp
|
| Outlet Connection Type | Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
| Hose Thread (GHT)
|
| Outlet Count | 2
| 2
| 2
| 2
| 2
|
| Includes | Faceplate
| — | Faceplate, Wall Box
| Wall Box
| — |
| Hot Cold Rated | Yes | Yes | Yes | Yes | Yes |
| Series | 2M2 DWB
| 2
| WPWME-1
| WPWMCC-1
| WPWMV
|
| Country Of Origin | United States
| Taiwan
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Install Sheet | — | ||||
| End Connection | Sweat
| PEX
| PEX
| PEX
| PEX
|
| Max Pressure PSI | 150.0 psi | 150.0 psi | — | — | — |
| Max Temp °F | 180.0 °F | 180.0 °F | — | — | — |
| Pack Qty | 6
| 16
| 10
| — | 24
|
