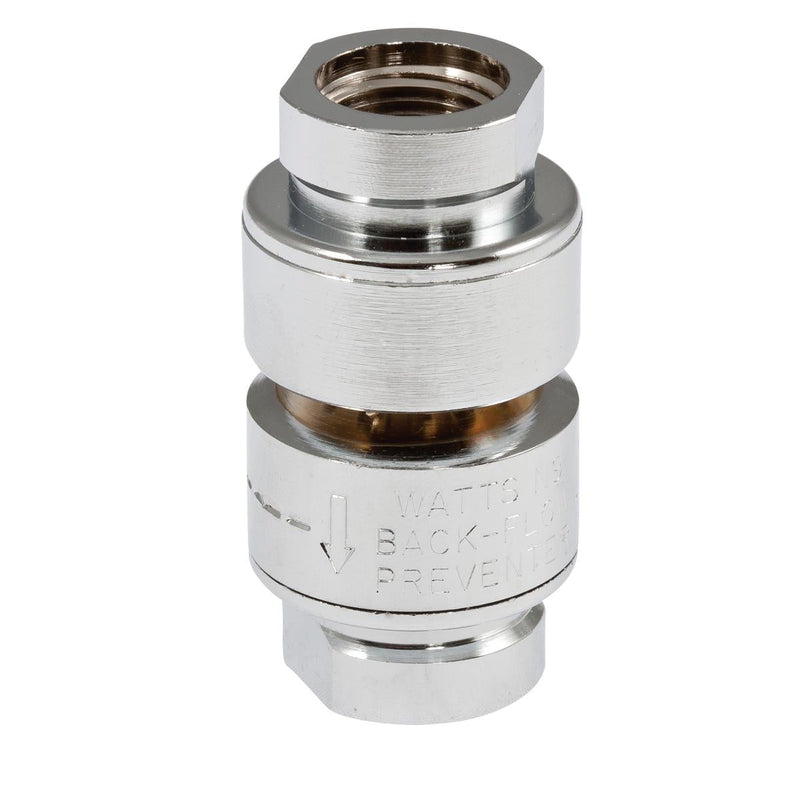

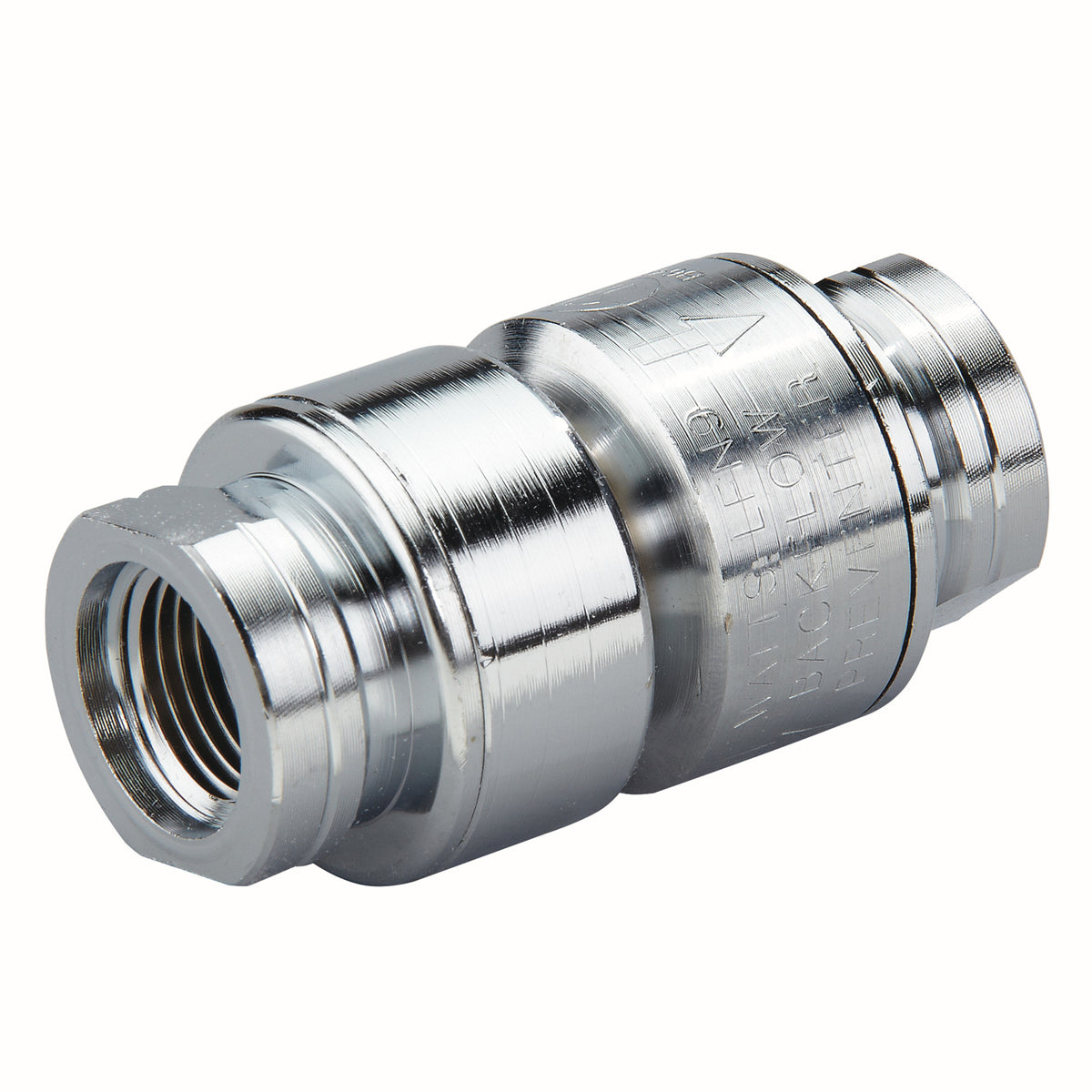

The Watts LFN9C-M5 3/8 is a 3/8" lead-free dual check valve with FNPT connections, approved for low health hazard protection. It is rated to 125 psi and 33°F to 140°F. This model is certified lead-free for potable-water installations.
This 3/8 inch lead free dual check vacuum breaker backflow preventer prevents the reverse flow of polluted water from entering into the potable water supply. It consists of a chrome plated lead free body construction with an atmospheric vent and NPT female inlet and outlet connections. It is designed for non-health hazard continuous pressure applications, such as parlor sinks.
Features
- Lead free construction
- Compact design
- Female NPT threads
- In-line applications
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Can this device be field tested?
- No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
Specifications
- Type: Dual Check
- Size: 3/8"
- Inlet Size: 3/8"
- Outlet Size: 3/8"
- Connection: FNPT
- Max Pressure (psi): 125
- Application: Domestic Water
- Backflow Protection: Backpressure
- Operation: Continuous
- Pack Quantity: 50
- Country of Origin: Mexico
- Warranty: 1 Year Limited
- MPN: LFN9C-M5 3/8
- Temperature: 33°F to 140°F
- Certifications: CSA-B64
- Lead-Free: Yes
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
- Shutoff Valves: None
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: No
- Air Gap Fitting Included: No
Product Information
Dimensions
| Size Nominal | 3/8" | Inlet Size | 3/8" |
| Outlet Size | 3/8" | End Connection | FNPT |
Details
| Series | LFN9 | Device Type | Dual Check |
| Lead Free | Yes | Application | Domestic Water |
| Operation | Continuous | Max Pressure PSI | 125.0 psi |
| Max Temp °F | 140.0 °F | Pack Qty | 50 |
| Backflow Protection | Backpressure | Min Temp °F | 33.0 °F |
| Assembly Type | Dual Check | Hazard Rating | Low Health Hazard |
| Test Cocks | 0 | Shutoff Valve Type | None |
Certifications & Standards
| CSA-B64 | — |
Compare with similar products
| Backflow Protection | Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
|
| Assembly Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | — | ASSE 1012
| ASSE 1022
| ASSE 1022
| ASSE 1022
| ASSE 1022
|
| Test Cocks | 0
| 0
| 0
| 0
| 0
| 0
|
| Shutoff Valve Type | None
| None
| None
| None
| None
| None
|
| Strainer Included | — | Yes | Yes | Yes | Yes | Yes |
| Series | LFN9
| LF9D
| SD-3
| SD-3
| SD-3
| SD-3
|
| Country Of Origin | Mexico
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Size Nominal | 3/8"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Inlet Size | 3/8"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Outlet Size | 3/8"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | — | — | — | — |
| End Connection | FNPT
| Sweat
| SAE Flare
| SAE Flare
| SAE Flare
| MNPT
|
| Body Material | — | Brass
| Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | — | Rubber
| Rubber
| Rubber
| Rubber
| Rubber
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 125.0 psi | 175.0 psi | 150.0 psi | 150.0 psi | 150.0 psi | 150.0 psi |
| Max Temp °F | 140.0 °F | 250.0 °F | — | — | — | — |
| Certifications | CSA-B64
| ASSE-1012, CSA-B64
| ASSE-1022
| ASSE-1022
| ASSE-1022
| ASSE-1022
|
| Pack Qty | 50
| 12
| 25
| 25
| 25
| 25
|
| Options | — | Strainer
| Strainer
| Strainer
| Strainer
| Strainer
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
