Specifications
Description

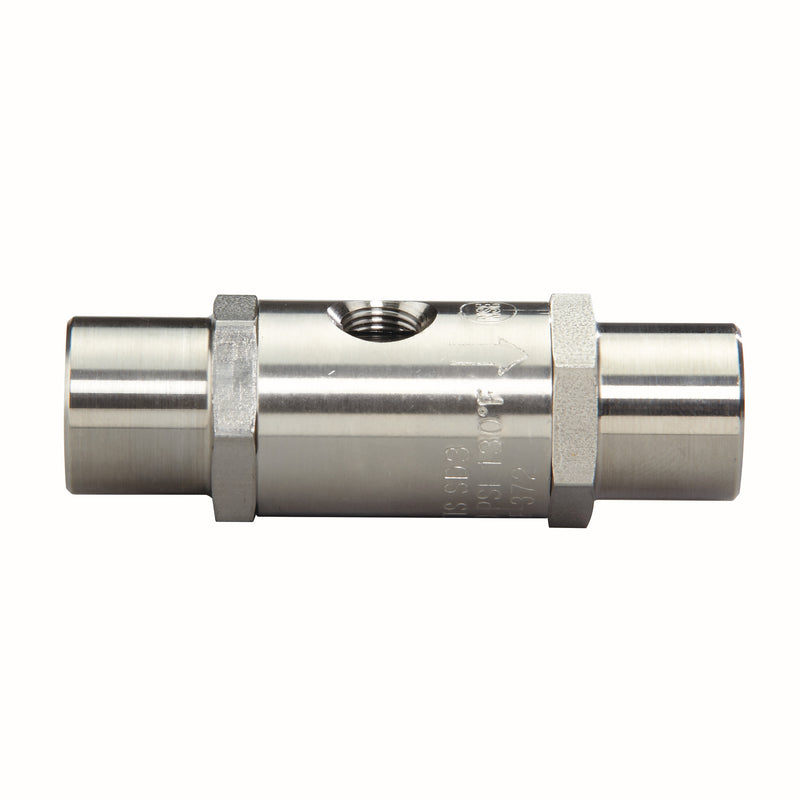

The Watts SD-3-FF-LS 1/4 is a 1/4" dual check valve with SAE Flare connections, approved for low health hazard protection. It features a stainless body and a rubber seat. Rated to 150 psi.
This 1/4" dual check valve backflow preventer with atmospheric port and strainer for carbonated beverage machines prevents the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to backpressure backflow. It consists of stainless steel body construction with internal rubber components and is designed for continuous or intermittent pressure applications. It has an atmospheric port that provides visual indication of failure of the second check It is ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. End connections are SAE female flare. Maximum working pressure is 150 psi (10 bar).
Features
- Used for for carbonated beverage machines
- Stainless steel body construction
- Maximum working pressure is 150 psi
- Atmospheric port provides visual indication of failure
- Includes: Strainer
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1022.
- Can this be installed on potable water?
- No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.
- Can this device be field tested?
- No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
Specifications
- Type: Dual Check
- Size: 1/4"
- Inlet Size: 1/4"
- Outlet Size: 1/4"
- Connection: SAE Flare
- Body Material: Stainless
- Seat / Seal Material: Rubber
- Max Pressure (psi): 150
- Application: Domestic Water
- Backflow Protection: Backpressure
- Operation: Continuous
- Pack Quantity: 25
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: SD-3-FF-LS 1/4
- Certifications: ASSE-1022
- Lead-Free: No
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1022
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
- Shutoff Valves: None
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: Yes
- Air Gap Fitting Included: No
Product Information
Dimensions
| Size Nominal | 1/4" | Inlet Size | 1/4" |
| Outlet Size | 1/4" | End Connection | SAE Flare |
Details
| Series | SD-3 | Device Type | Dual Check |
| Body Material | Stainless | Seat Material | Rubber |
| Application | Domestic Water | Operation | Continuous |
| Max Pressure PSI | 150.0 psi | Pack Qty | 25 |
| Backflow Protection | Backpressure | Options | Strainer |
| Min Temp °F | 33.0 °F | Assembly Type | Dual Check |
| Hazard Rating | Low Health Hazard | ASSE Standard | ASSE 1022 |
| Test Cocks | 0 | Shutoff Valve Type | None |
| Strainer Included | Yes | — | — |
Certifications & Standards
| ASSE-1022 | — |
Compare with similar products
| Backflow Protection | Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
|
| Assembly Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1022
| ASSE 1012
| ASSE 1022
| ASSE 1022
| ASSE 1022
| ASSE 1022
|
| Test Cocks | 0
| 0
| 0
| 0
| 0
| 0
|
| Shutoff Valve Type | None
| None
| None
| None
| None
| None
|
| Strainer Included | Yes | Yes | Yes | Yes | Yes | Yes |
| Series | SD-3
| LF9D
| SD-3
| SD-3
| SD-3
| SD-3
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Size Nominal | 1/4"
| 3/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| Inlet Size | 1/4"
| 3/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| Outlet Size | 1/4"
| 3/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| End Connection | SAE Flare
| Sweat
| SAE Flare
| SAE Flare
| MNPT
| FNPT
|
| Body Material | Stainless
| Brass
| Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | Rubber
| Rubber
| Rubber
| Rubber
| Rubber
| Rubber
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 150.0 psi | 175.0 psi | 150.0 psi | 150.0 psi | 150.0 psi | 150.0 psi |
| Certifications | ASSE-1022
| ASSE-1012, CSA-B64
| ASSE-1022
| ASSE-1022
| ASSE-1022
| ASSE-1022
|
| Pack Qty | 25
| 12
| 25
| 25
| 25
| 25
|
| Options | Strainer
| Strainer
| Strainer
| Strainer
| Strainer
| Strainer
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
