Specifications
Description

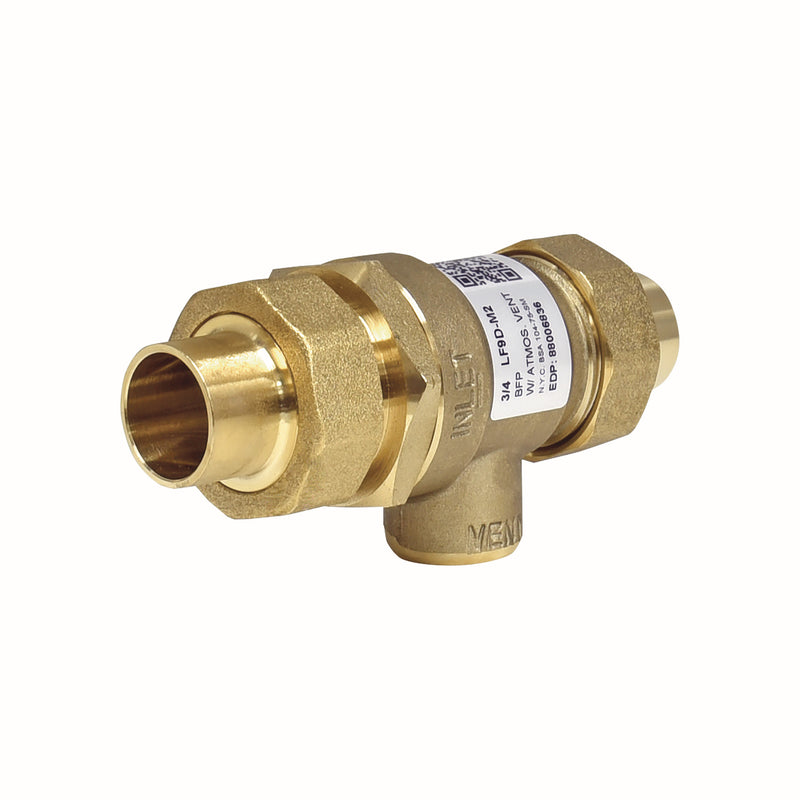

The Watts 3/4 LF9DS is a 3/4" lead-free dual check valve with Sweat connections, approved for low health hazard protection. It features a brass body and a rubber seat. Rated to 175 psi and 33°F to 250°F. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free dual check valve backflow preventer with intermediate atmospheric vent prevents the reverse flow of hot or cold polluted water from entering into the potable water supply. This valve is designed for continuous pressure non-health hazard applications in smaller supply lines, such as laboratory equipment, processing tanks, sterilizers, dairy equipment, and specifically for boiler feed lines. It consists of a lead free forged brass body with stainless steel internal parts, integral strainer, two durable tight seating rubber check valve backflow preventers, and soldered end connections.
Features
- Lead free forged brass body for durability
- Compact design
- Stainless steel internal parts
- Horizontal or vertical installation
- Includes: Strainer
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1012.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Can this device be field tested?
- No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
- How does this have to be installed?
- It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.
Specifications
- Type: Dual Check
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: Sweat
- Body Material: Brass
- Seat / Seal Material: Rubber
- Max Pressure (psi): 175
- Application: Domestic Water
- Backflow Protection: Backpressure
- Operation: Continuous
- Pack Quantity: 12
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 3/4 LF9DS
- Temperature: 33°F to 250°F
- Certifications: ASSE-1012, CSA-B64
- Lead-Free: Yes
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1012
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
- Shutoff Valves: None
- Approved Orientation: Horizontal & Vertical
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: Yes
- Air Gap Fitting Included: No
Product Information
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | Sweat |
Details
| Series | LF9D | Device Type | Dual Check |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Rubber | Application | Domestic Water |
| Operation | Continuous | Max Pressure PSI | 175.0 psi |
| Max Temp °F | 250.0 °F | Pack Qty | 12 |
| Backflow Protection | Backpressure | Options | Strainer |
| Min Temp °F | 33.0 °F | Assembly Type | Dual Check |
| Hazard Rating | Low Health Hazard | ASSE Standard | ASSE 1012 |
| Test Cocks | 0 | Shutoff Valve Type | None |
| Orientation | Horizontal & Vertical | Strainer Included | Yes |
Certifications & Standards
| ASSE-1012 | CSA-B64 |
Compare with similar products
| Backflow Protection | Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
|
| Assembly Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1012
| ASSE 1022
| ASSE 1022
| ASSE 1022
| ASSE 1022
| ASSE 1022
|
| Test Cocks | 0
| 0
| 0
| 0
| 0
| 0
|
| Shutoff Valve Type | None
| None
| None
| None
| None
| None
|
| Strainer Included | Yes | Yes | Yes | Yes | Yes | Yes |
| Series | LF9D
| SD-3
| SD-3
| SD-3
| SD-3
| SD-3
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Size Nominal | 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| Inlet Size | 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| Outlet Size | 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
| 1/4"
|
| End Connection | Sweat
| SAE Flare
| SAE Flare
| SAE Flare
| MNPT
| FNPT
|
| Body Material | Brass
| Stainless
| Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | Rubber
| Rubber
| Rubber
| Rubber
| Rubber
| Rubber
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 175.0 psi | 150.0 psi | 150.0 psi | 150.0 psi | 150.0 psi | 150.0 psi |
| Certifications | ASSE-1012, CSA-B64
| ASSE-1022
| ASSE-1022
| ASSE-1022
| ASSE-1022
| ASSE-1022
|
| Pack Qty | 12
| 25
| 25
| 25
| 25
| 25
|
| Options | Strainer
| Strainer
| Strainer
| Strainer
| Strainer
| Strainer
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
