Description
The Watts LF7R 1/2 is a 1/2" lead-free dual check valve with NPT connections, approved for low health hazard protection. It features a copper body and a epdm seat. Rated to 175 psi. This model is certified lead-free for potable-water installations.

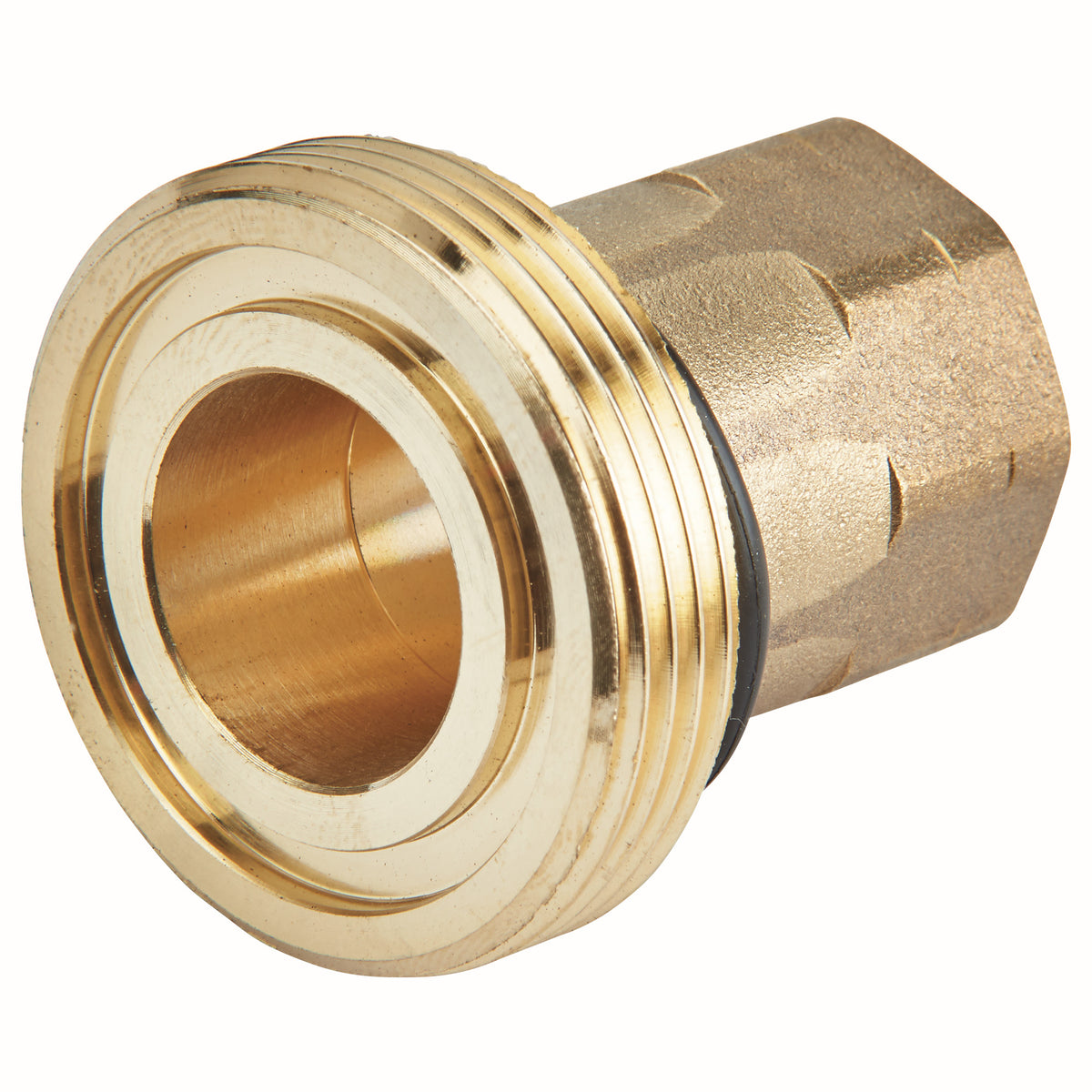

This lead free female union NPT tailpiece extends the lay length of a 1/2 inch lead free dual check valve backflow preventer, series LF7R, to match the length of the 1/2 inch dual check valve backflow preventer, series 7. It is made of lead free brass and has female union NPT connection.
Features
- Lead free brass construction for durability
- Female union NPT
- Matches lay length for series 7 dual check valve
- For 1/2 inch LF7R U2 Series
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1024.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Can this device be field tested?
- No. It has no test cocks and is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
Specifications
- Type: Dual Check
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Body Material: Copper
- Seat / Seal Material: EPDM
- Max Pressure (psi): 175
- Backflow Protection: Backpressure
- Operation: Continuous
- Pack Quantity: 25
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF7R 1/2
- Certifications: ASSE-1024
- Lead-Free: Yes
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1024
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
- Shutoff Valves: None
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: No
- Air Gap Fitting Included: No
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 0072234 | 098268069655 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
Details
| Series | LF7R | Device Type | Dual Check |
| Lead Free | Yes | Body Material | Copper |
| Seat Material | EPDM | Operation | Continuous |
| Max Pressure PSI | 175.0 psi | Pack Qty | 25 |
| Backflow Protection | Backpressure | Min Temp °F | 33.0 °F |
| Assembly Type | Dual Check | Hazard Rating | Low Health Hazard |
| ASSE Standard | ASSE 1024 | Test Cocks | 0 |
| Shutoff Valve Type | None | — | — |
Certifications & Standards
| ASSE-1024 | — |
Compare with similar products
| Backflow Protection | Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
| Backpressure
|
| Assembly Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1024
| ASSE 1012
| ASSE 1022
| ASSE 1022
| ASSE 1022
| ASSE 1022
|
| Test Cocks | 0
| 0
| 0
| 0
| 0
| 0
|
| Shutoff Valve Type | None
| None
| None
| None
| None
| None
|
| Strainer Included | — | Yes | Yes | Yes | Yes | Yes |
| Series | LF7R
| LF9D
| SD-3
| SD-3
| SD-3
| SD-3
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | |||||
| Install Sheet | — | |||||
| Device Type | Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
| Dual Check
|
| Size Nominal | 1/2"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Inlet Size | 1/2"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Outlet Size | 1/2"
| 3/4"
| 1/4"
| 1/4"
| 3/8"
| 3/8"
|
| Lead Free | Yes | Yes | — | — | — | — |
| End Connection | NPT
| Sweat
| SAE Flare
| SAE Flare
| SAE Flare
| MNPT
|
| Body Material | Copper
| Brass
| Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | EPDM
| Rubber
| Rubber
| Rubber
| Rubber
| Rubber
|
| Application | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 175.0 psi | 175.0 psi | 150.0 psi | 150.0 psi | 150.0 psi | 150.0 psi |
| Certifications | ASSE-1024
| ASSE-1012, CSA-B64
| ASSE-1022
| ASSE-1022
| ASSE-1022
| ASSE-1022
|
| Pack Qty | 25
| 12
| 25
| 25
| 25
| 25
|
| Options | — | Strainer
| Strainer
| Strainer
| Strainer
| Strainer
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
