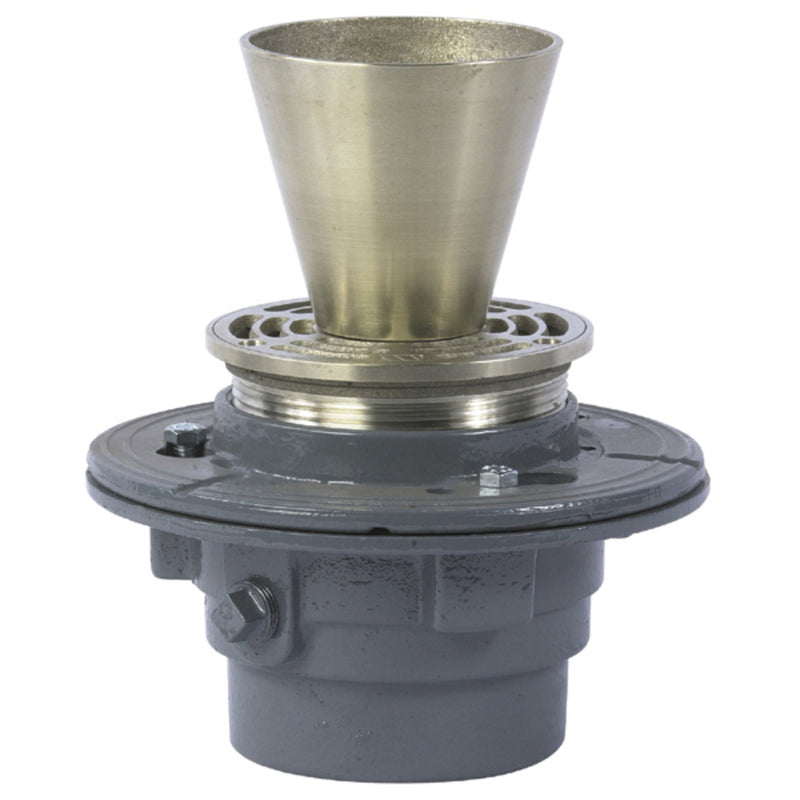

Watts FD-103P-EF-1 Floor Drain, Cast Iron, Push-On

The Watts FD-103P-EF-1 is a epoxy-coated cast iron floor drain with a 3" Push-On outlet. It features a cast iron body.

This Watts Drains adjustable, epoxy coated, cast iron floor drain features a 4 inch nickel bronze funnel, an anchor flange, a reversible clamping collar with primary and secondary weepholes, an adjustable, round, heel-proof, a 5 inch nickel bronze strainer with 5 square inches of free area and a 3 inch push on outlet.

Features

• Cast iron
• 3 inch push
• 4 inch NB funnel
• Adjustable top

Common Questions

What size is the strainer or grate?

The top is 4". It adjusts vertically to the finished floor.

What pipe does it connect to?

It has a 3" Push-On outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 3"
• Outlet Size: 3"
• Connection: Push-On
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FD-103P-EF-1
• Top Material: Nickel Bronze
• Top / Strainer Size: 4"
• Spec.Coating: Epoxy
• Spec.Adjustable: Yes
• Heel Proof: Yes
