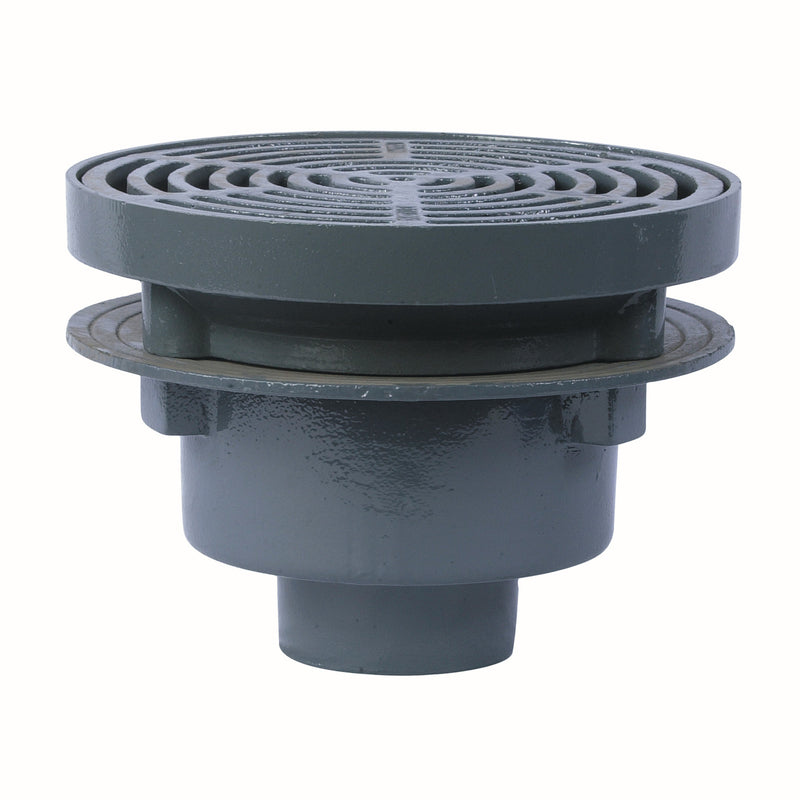

Watts FD-340-Y-4 Floor Drain, Cast Iron, No-Hub

The Watts FD-340-Y-4 is a epoxy-coated cast iron floor drain with a 4" No-Hub outlet. It features a cast iron body.

This Watts Drains epoxy coated, cast iron floor drain is designed for basement, industrial and warehouse areas. It features a 12 inch round, fixed top, heel-proof, ductile iron grate, weepholes, anchor flange and 4 inch no hub connection. This item carries an extra heavy duty load rating.

Features

• Cast Iron
• Round
• No Hub
• 4"

Common Questions

What size is the strainer or grate?

The top is 12" round.

What pipe does it connect to?

It has a 4" No-Hub outlet.

Can it take traffic?

It carries a Extra Heavy Duty load rating. The grate is heel-proof for walking surfaces.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 4"
• Outlet Size: 4"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FD-340-Y-4
• Top Material: Ductile Iron
• Top Shape: Round
• Top / Strainer Size: 12"
• Spec.Coating: Epoxy
• Load Rating: Extra Heavy Duty
• Heel Proof: Yes
