Specifications
Description

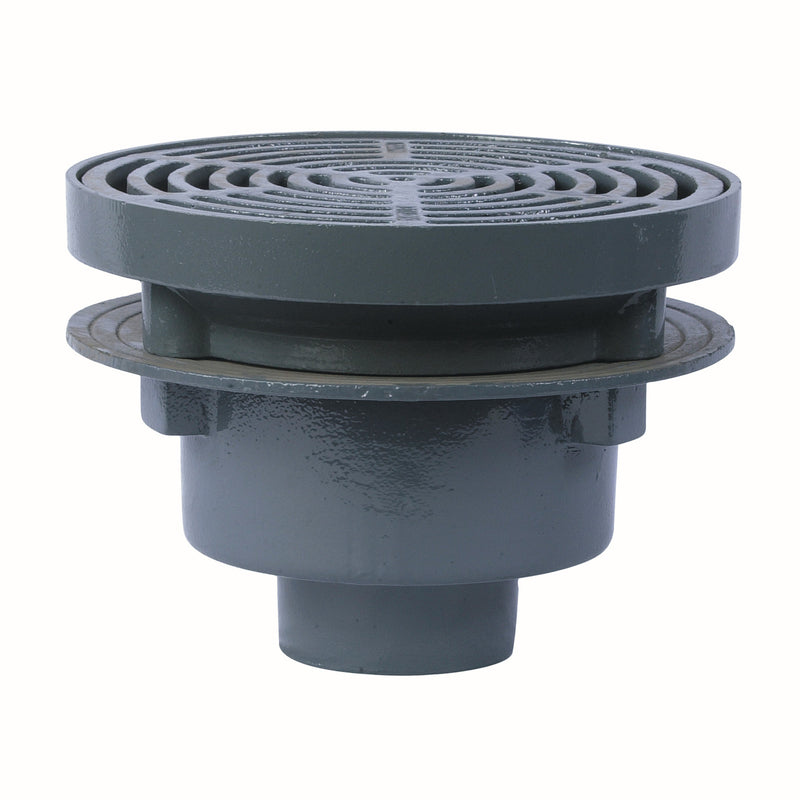

The Watts FD-343-Y-5 is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.
This Watts Drains fixed top, epoxy coated, cast iron floor drain features an anchor flange, weepholes, a sediment bucket, a heel-proof, 12 inch round, ductile iron grate with 37 square inches of free area and a 3 inch no hub outlet. It carries an extra heavy duty load rating.
Features
- Cast iron
- 12 inch fixed top
- 3 inch no hub
- Sediment bucket
Common Questions
- What size is the strainer or grate?
- The top is 12" round.
- What pipe does it connect to?
- It has a 3" No-Hub outlet.
- Can it take traffic?
- It carries a Extra Heavy Duty load rating. The grate is heel-proof for walking surfaces.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: FD-343-Y-5
- Top Material: Ductile Iron
- Top Shape: Round
- Top / Strainer Size: 12"
- Spec.Coating: Epoxy
- Load Rating: Extra Heavy Duty
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| FD-343-Y-5 | 098268067774 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-340-Y | Body Material | Cast Iron |
| Application | Drainage | Top Size | 12" |
| Coating | Epoxy | Heel proof | Yes |
| Load rating | Extra Heavy Duty | Top material | Ductile Iron |
| Top shape | Round | — | — |
Compare with similar products
| Top Size | 12"
| 5"
|
| Series | FD-340-Y
| CO12
|
| Country Of Origin | China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
|
| Size Nominal | 3"
| 4"
|
| Outlet Size | 3"
| 4"
|
| End Connection | No-Hub
| Solvent
|
| Application | Drainage
| Drainage
|
