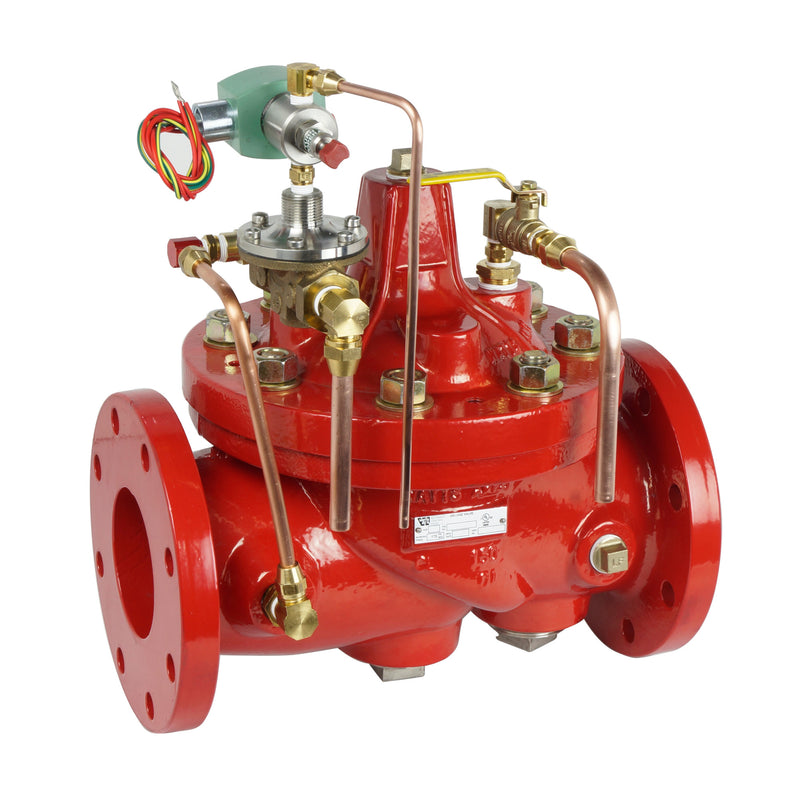

The Watts M100D-B DI 150 UL-NC SS PILOT 24VDC 3 is a 3" globe-pattern pilot-operated deluge / fire protection control valve with Flanged connections. It features a ductile iron body and a buna-n seat. Rated to 175 psi and up to 160°F.
This 3 inch ACV is armed with ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This deluge valve, M100D-B, is UL listed and has a normally closed stainless steel 24VDC pilot. This Mustang valve style has a globe body pattern with class 150 flanged end connections.
Features
- Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
- Globe pattern with class 150 flanged end connections
- Has a normally closed stainless steel 24VDC pilot
- UL listed
Common Questions
- What is the maximum working pressure?
- This unit is built as 150# Flanged and is rated to 175 psi. End connection sets the ceiling on this platform, and 150# and 300# bodies are not interchangeable — confirm the class matches your flange drilling before ordering.
- What fluid temperature can the Buna-N trim handle?
- This valve is built with Buna-N elastomers, good to about 160°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve UL Listed for fire protection?
- Yes — this model carries the UL listing required for fire-protection service. Non-listed control valves cannot be substituted on a fire job even when the body and pilot are otherwise identical.
Specifications
-
Type: Globe
-
Size: 3"
-
Inlet Size: 3"
-
Outlet Size: 3"
-
Connection: Flanged
-
Body Material: Ductile Iron
-
Seat / Seal Material: Buna-N
-
Pressure Class: Class 150
-
Max Pressure (psi): 175
-
Application: Fire Protection
-
Operation: Pilot-Operated Diaphragm
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: M100D-B DI 150 UL-NC SS PILOT 24VDC 3
-
Temperature: up to 160°F
-
Certifications: UL
-
Lead-Free: No
-
Item Type: Valve
-
Control Function: Deluge / Fire Protection Control
-
Valve Platform: Mustang (M-Series)
-
Body Pattern: Globe
-
End Connection / Pressure Class: 150# Flanged
-
Configured Options: Stainless Steel Pilot;Normally Closed;Solenoid Pilot, 24VDC
-
Coating: ArmorTek 3-Part Epoxy
-
UL Listed / FM Approved: Yes
