Specifications
Description

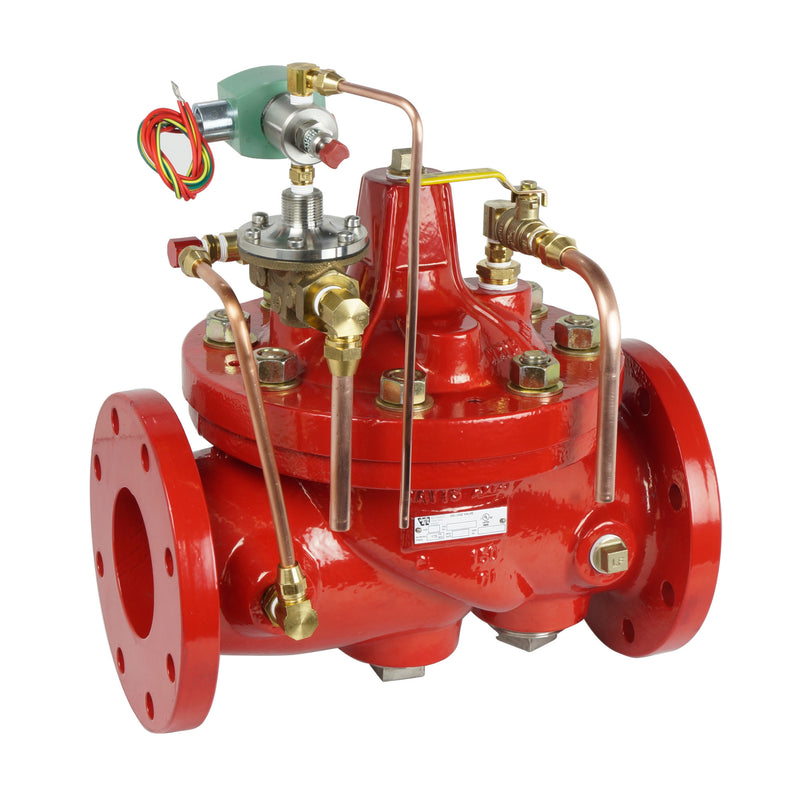

The Watts M100D-B DI 150 UL-NC LF PILOT 120VAC 6 is a 6" lead-free globe-pattern pilot-operated deluge / fire protection control valve with Flanged connections. It features a ductile iron body and a buna-n seat. Rated to 175 psi and up to 160°F. This model is certified lead-free for potable-water installations.
This 6 inch ACV is armed with ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This deluge valve, M100D-B, is UL listed and has a normally closed lead free 120VAC pilot. This Mustang valve style has a globe body pattern with class 150 flanged end connections.
Features
- Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
- Globe pattern with class 150 flanged end connections
- Has a normally closed lead free 120VAC pilot
- UL listed
Common Questions
- What is the maximum working pressure?
- This unit is built as 150# Flanged and is rated to 175 psi. End connection sets the ceiling on this platform, and 150# and 300# bodies are not interchangeable — confirm the class matches your flange drilling before ordering.
- What fluid temperature can the Buna-N trim handle?
- This valve is built with Buna-N elastomers, good to about 160°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve UL Listed for fire protection?
- Yes — this model carries the UL listing required for fire-protection service. Non-listed control valves cannot be substituted on a fire job even when the body and pilot are otherwise identical.
Specifications
- Type: Globe
- Size: 6"
- Inlet Size: 6"
- Outlet Size: 6"
- Connection: Flanged
- Body Material: Ductile Iron
- Seat / Seal Material: Buna-N
- Pressure Class: Class 150
- Max Pressure (psi): 175
- Application: Fire Protection
- Operation: Pilot-Operated Diaphragm
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: M100D-B DI 150 UL-NC LF PILOT 120VAC 6
- Temperature: up to 160°F
- Certifications: UL
- Lead-Free: Yes
- Item Type: Valve
- Control Function: Deluge / Fire Protection Control
- Valve Platform: Mustang (M-Series)
- Body Pattern: Globe
- End Connection / Pressure Class: 150# Flanged
- Configured Options: Lead-Free Pilot;Normally Closed;Solenoid Pilot, 120VAC
- Coating: ArmorTek 3-Part Epoxy
- UL Listed / FM Approved: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 4429-02 | 098268600940 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 6" | Inlet Size | 6" |
| Outlet Size | 6" | End Connection | Flanged |
| Pressure Class | Class 150 | — | — |
Details
| Series | M100D-B | Device Type | Globe |
| Lead Free | Yes | Body Material | Ductile Iron |
| Seat Material | Buna-N | Application | Fire Protection |
| Operation | Pilot-Operated Diaphragm | Max Pressure PSI | 175.0 psi |
| Max Temp °F | 160.0 °F | Item Type | Valve |
| Control Function | Deluge / Fire Protection Control | Valve Platform | Mustang (M-Series) |
| Body Pattern | Globe | Pressure Class End | 150# Flanged |
| Options | Lead-Free Pilot, Normally Closed, Solenoid Pilot, 120VAC | Coating | ArmorTek 3-Part Epoxy |
| UL FM Listed | Yes | — | — |
Certifications & Standards
| UL | — |
Compare with similar products


| Item Type | Valve
| Valve
|
| Control Function | Deluge / Fire Protection Control
| Backflow Prevention (RPZ)
|
| Valve Platform | Mustang (M-Series)
| Classic (F-Series)
|
| Body Pattern | Globe
| Globe
|
| Pressure Class End | 150# Flanged
| 150# Flanged
|
| Options | Lead-Free Pilot, Normally Closed, Solenoid Pilot, 120VAC
| Flood Sensor
|
| Coating | ArmorTek 3-Part Epoxy
| Fusion-Bonded Epoxy
|
| Series | M100D-B
| LFF113FP
|
| Country Of Origin | United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||
| Device Type | Globe
| RPZ
|
| Size Nominal | 6"
| 6"
|
| Inlet Size | 6"
| 6"
|
| Outlet Size | 6"
| 6"
|
| Lead Free | Yes | Yes |
| End Connection | Flanged
| Flanged
|
| Body Material | Ductile Iron
| Ductile Iron
|
| Seat Material | Buna-N
| EPDM
|
| Operation | Pilot-Operated Diaphragm
| Continuous
|
| Pressure Class | Class 150
| Class 150
|
| Max Temp °F | 160.0 °F | 300.0 °F |
| Certifications | UL
| NSF-61
|
