Watts 10 LFM113FP 150 Lead-Free RPZ Backflow Preventer, Ductile Iron, Flanged

The Watts 10 LFM113FP 150 is a 10" lead-free globe-pattern reduced pressure zone (RPZ) backflow preventer with Flanged connections. It features a ductile iron body and a epdm seat. Rated to up to 300°F. This model is certified lead-free for potable-water installations.

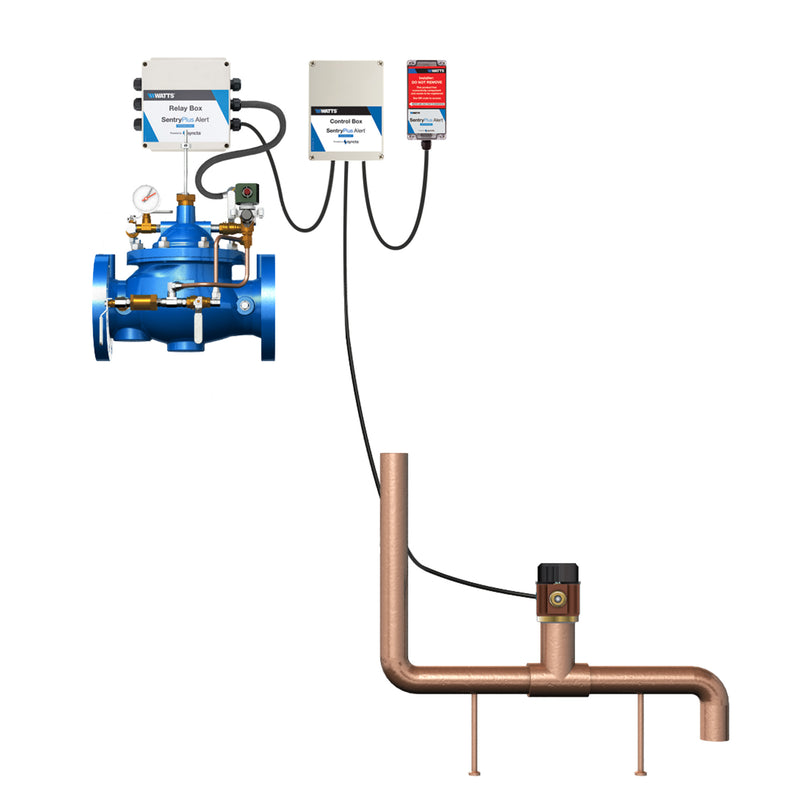

This 10 inch LFF113RFP flood protection shutdown control valve with 150 pound flanged end connections prevents catastrophic property damage due to excessive RPZ backflow relief valve discharge by continuously monitoring for excess discharge, and closing the water supply to the backflow during potentially catastrophic flood conditions. If the RPZ relief valve opens, excess flow trips the flow sensor which energizes the solenoid and closes the valve. It features a time delay to prevent false alarms and a control valve switch to provide an indication of valve closure. This valve also features SentryPlus Alert technology to provide multi-channel alerts to notify in real time if there is an issue so action can be taken. Alerts can be a text, email, or phone call.

Features

• Class 150 flanged
• SentryPlus Alert flood monitoring and alert system
• Multi-channel alerts
• Solenoid control

Common Questions

What fluid temperature can the EPDM trim handle?

This valve is built with EPDM elastomers, good to about 300°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.

Is this valve certified lead-free for potable water?

Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

• Type: RPZ
• Size: 10"
• Inlet Size: 10"
• Outlet Size: 10"
• Connection: Flanged
• Body Material: Ductile Iron
• Seat / Seal Material: EPDM
• Pressure Class: Class 150
• Operation: Continuous
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 10 LFM113FP 150
• Temperature: up to 300°F
• Certifications: NSF-61
• Lead-Free: Yes
• Item Type: Valve
• Control Function: Backflow Prevention (RPZ)
• Valve Platform: Mustang (M-Series)
• Body Pattern: Globe
• End Connection / Pressure Class: 150# Flanged
• Coating: Fusion-Bonded Epoxy
