Watts LFF113FP THD-FP2 1 1/4 Lead-Free RPZ Backflow Preventer, Ductile Iron, NPT

The Watts LFF113FP THD-FP2 1 1/4 is a 1-1/4" lead-free globe-pattern reduced pressure zone (RPZ) backflow preventer with NPT connections. It features a ductile iron body and a epdm seat. Rated to up to 300°F. This model is certified lead-free for potable-water installations.

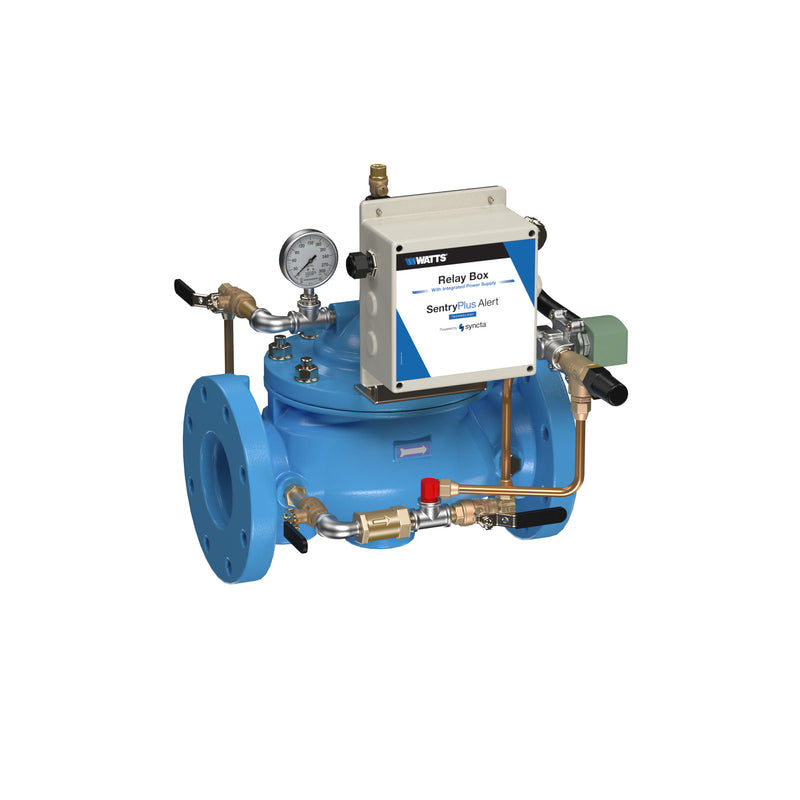

This 1 1/4 inch LFF113FP flood protection shutdown control valve protects against property damage caused by continuous discharge from a reduced pressure zone backflow assembly. With SentryPlus Alert® continuous monitoring technology in place, the flood sensor and sensor activation module attached to the assembly relief valve signal the relay box when discharge is continuous. The activation module includes a tiny time delay to prevent signaling based on intermittent or nuisance relief valve discharges. Activated through an add-on connection kit, the sensor can trigger the alert system sending notification of flood detection to facility personnel. This Classic valve style has a globe body pattern with threaded end connections.

Features

• Threaded
• SentryPlus Alert flood monitoring and alert system
• Multi-channel alert capabilities
• Solenoid control

Common Questions

What fluid temperature can the EPDM trim handle?

This valve is built with EPDM elastomers, good to about 300°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.

Is this valve certified lead-free for potable water?

Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

• Type: RPZ
• Size: 1-1/4"
• Inlet Size: 1-1/4"
• Outlet Size: 1-1/4"
• Connection: NPT
• Body Material: Ductile Iron
• Seat / Seal Material: EPDM
• Operation: Continuous
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: LFF113FP THD-FP2 1 1/4
• Temperature: up to 300°F
• Certifications: NSF-61
• Lead-Free: Yes
• Item Type: Valve
• Control Function: Backflow Prevention (RPZ)
• Valve Platform: Classic (F-Series)
• Body Pattern: Globe
• End Connection / Pressure Class: THD (NPT Threaded)
• Configured Options: Flood Sensor
• Coating: Fusion-Bonded Epoxy
