Specifications
Description

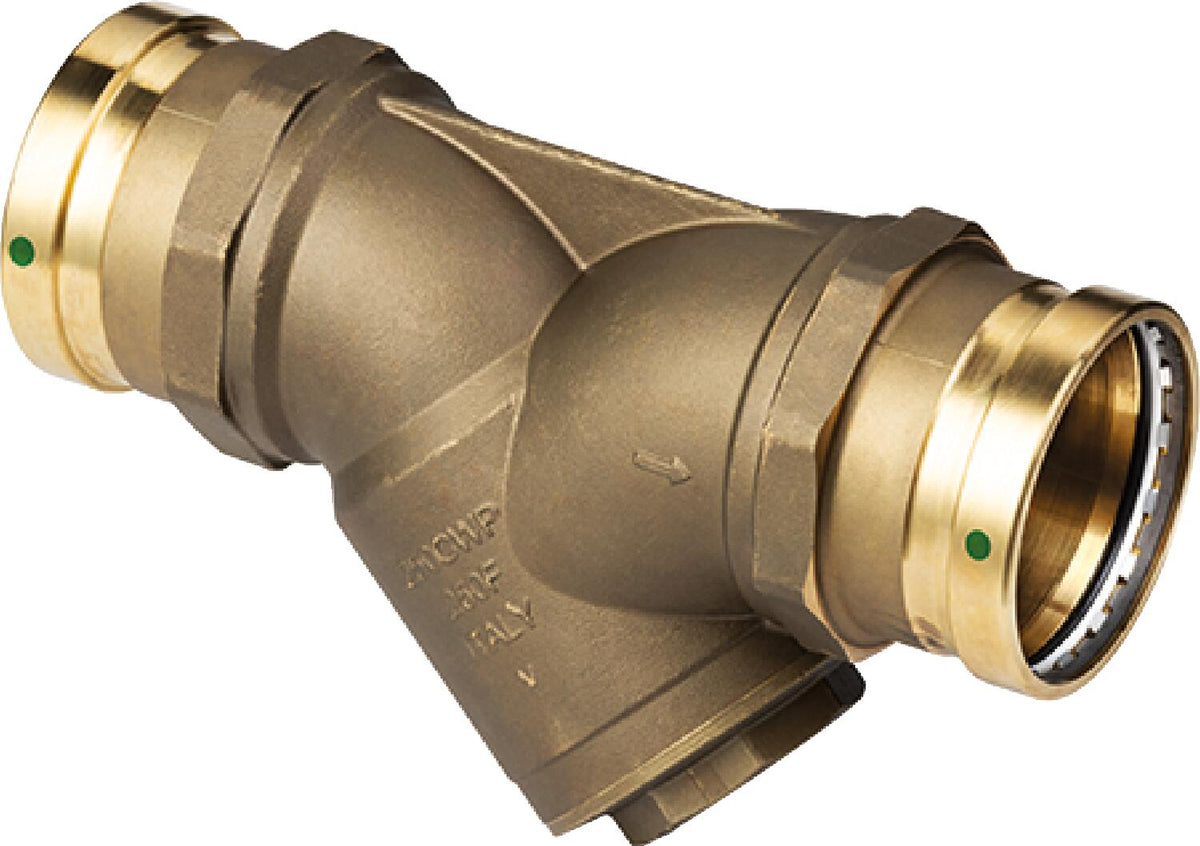

The Viega 87265 is a 3" wye strainer from Viega's ProPress system with Press x Press ends for copper tube (CTS sizes). It features a brass body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For potable water installations
- Not suitable for gas installations
- Brass
- Press connection
- Mesh 20
- Components EPDM sealing elements, strainer screen
Common Questions
- What pipe and press tool does this valve need?
- It installs with a ProPress XL-C press jaw or ring, on copper tube (CTS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
Specifications
- Type: Wye Strainer
- Size: 3"
- Connection: Press
- Body Material: Brass
- Application: Domestic Water
- Country of Origin: Italy
- MPN: 87265
- Temperature: 0°F to 250°F
- Press Profile: ProPress XL-C
- Size Basis: CTS
- Sealing Element: EPDM
- For Use On: Copper
- End Connections: Press x Press
- Body Pattern: Y
- Screen Mesh: 20
Product Information
| SKU | Country of Origin |
|---|---|
| 87265 | Italy |
Dimensions
| Size Nominal | 3" | End Connection | Press |
Details
| Series | ProPress | Device Type | Wye Strainer |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Mesh Size | 20 | Body pattern | Y |
| Work material | Copper | End combination | Press x Press |
Compare with similar products
| Assembly Type | — | — | — | RPZ
| Dual Check
| — |
| Hazard Rating | — | — | — | High Health Hazard
| Low Health Hazard
| — |
| ASSE Standard | — | — | — | ASSE 1013
| ASSE 1012
| — |
| Test Cocks | — | — | — | 4
| 0
| — |
| Series | ProPress
| 112-600XLHR
| PureFlow Press
| 112-975XL2
| 760
| MegaPress 316
|
| Country Of Origin | Italy
| — | Canada
| — | — | China
|
| Spec Sheet | — | — | — | |||
| Install Sheet | — | — | — | |||
| Device Type | Wye Strainer
| Water Pressure Reducing Valve with Removable Integral Strainer
| Stop Valve
| Backflow Preventer - Bronze Reduced Pressure Principle Assembly
| Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent
| Globe Valve
|
| Size Nominal | 3"
| 1-1/2"
| 3/8"
| 1-1/2"
| 3/4"
| 1"
|
| Outlet Size | — | 1-1/2"
| 1/4" OD
| — | — | — |
| Lead Free | — | Yes | Yes | Yes | — | — |
| End Connection | Press
| FNPT
| PEX
| FNPT
| FNPT
| Press
|
| Body Material | Brass
| Lead-Free Bronze
| Nickel-plated brass
| Bronze
| Brass
| 316 stainless steel
|
| Application | Domestic Water
| Domestic Water
| — | Domestic Water
| Domestic Water
| — |
| Max Pressure PSI | — | 300.0 psi | — | 175.0 psi | 175.0 psi | — |
| Max Temp °F | 250.0 °F | 140.0 °F | — | 180.0 °F | 210.0 °F | 250.0 °F |
| Certifications | — | ASSE-1003, IAPMO, CSA, NSF-61
| — | ASSE-1013, AWWA-C511, CSA-B64.4, C-UL, UL, USC, NSF-61, NSF-372, IAPMO
| ASSE-1012, CSA-B64.3
| — |
| Min Temp °F | 0.0 °F | — | — | — | — | 0.0 °F |
