Specifications
Description

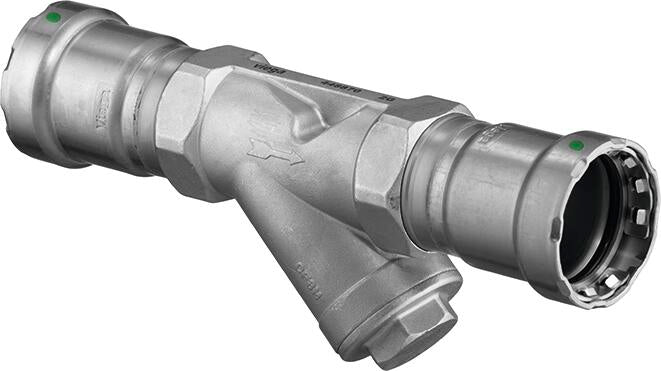

The Viega 87110 is a 1/2" wye strainer from Viega's MegaPress FKM system with Press x Press ends for steel pipe (IPS sizes). It features a 316 stainless steel valve/carbon steel press ends body. Rated to 14°F to 284°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Not suitable for potable water installations, fuel gas application
- stainless steel body, carbon steel press ends
- Press connection
- Mesh 20
- Components FKM sealing element, strainer screen
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress press jaw or ring, on steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with FKM sealing elements, which Viega rates from 14°F to 284°F.
Specifications
- Type: Wye Strainer
- Size: 1/2"
- Connection: Press
- Body Material: 316 stainless steel valve/Carbon steel press ends
- Application: Non-Potable Water
- Country of Origin: Turkey
- MPN: 87110
- Temperature: 14°F to 284°F
- Press Profile: MegaPress
- Size Basis: IPS
- Sealing Element: FKM
- For Use On: Steel
- End Connections: Press x Press
- Body Pattern: Y
- Screen Mesh: 20
Product Information
| SKU | Country of Origin |
|---|---|
| 87110 | Turkey |
Dimensions
| Size Nominal | 1/2" | End Connection | Press |
Details
| Series | MegaPress FKM | Device Type | Wye Strainer |
| Body Material | 316 stainless steel valve/Carbon steel press ends | Application | Non-Potable Water |
| Max Temp °F | 284.0 °F | Min Temp °F | 14.0 °F |
| Mesh Size | 20 | Body pattern | Y |
| Work material | Steel | End combination | Press x Press |
