Description
The Elkay EFS2523C is a Stainless Steel 25" x 23" x 8" Single Bowl Floor Mount Service Sink Package. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 16-gauge, Type 304 stainless steel.
- Eliminates high lifting of heavy containers.
- Fits into closet corners and limited work spaces.
- 1-3/4" coved corners.
- Apron on three sides.
- Top has 5⁄32" raised rims.
- Exposed surfaces are polished to a lustrous satin finish.
- Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- Furnished with wall hanger.
- KIT INCLUDES: EFS2523 sink, one LK43 drain; save time having to purchase each piece separately.
Common Questions
- What does 16-gauge mean?
- 16 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet.
- What is included in the kit?
- This kit includes: EFS2523 sink, one LK43 drain.
Specifications
- Type: Stainless Steel 25" x 23" x 8" Single Bowl Floor Mount Service Sink Package
- Outlet Size: 4-9/16"
- Body Material: Stainless Steel
- MPN: EFS2523C
- Certifications: ASME A112.19.3/CSA B45.4
- Number of Bowls: 1
- Bowl Dimensions: 20-1/16" x 17-15/16" x 8"
- Drain Location: Center
- Gauge: 16
- Sound Deadening: Bottom only pads
- Mount Type: Floor
- Coating / Finish: Buffed Satin
- Overall Length (in): 25.0
- Overall Width (in): 23.0
- Overall Height (in): 8.0
- Kit Includes: EFS2523 sink, one LK43 drain

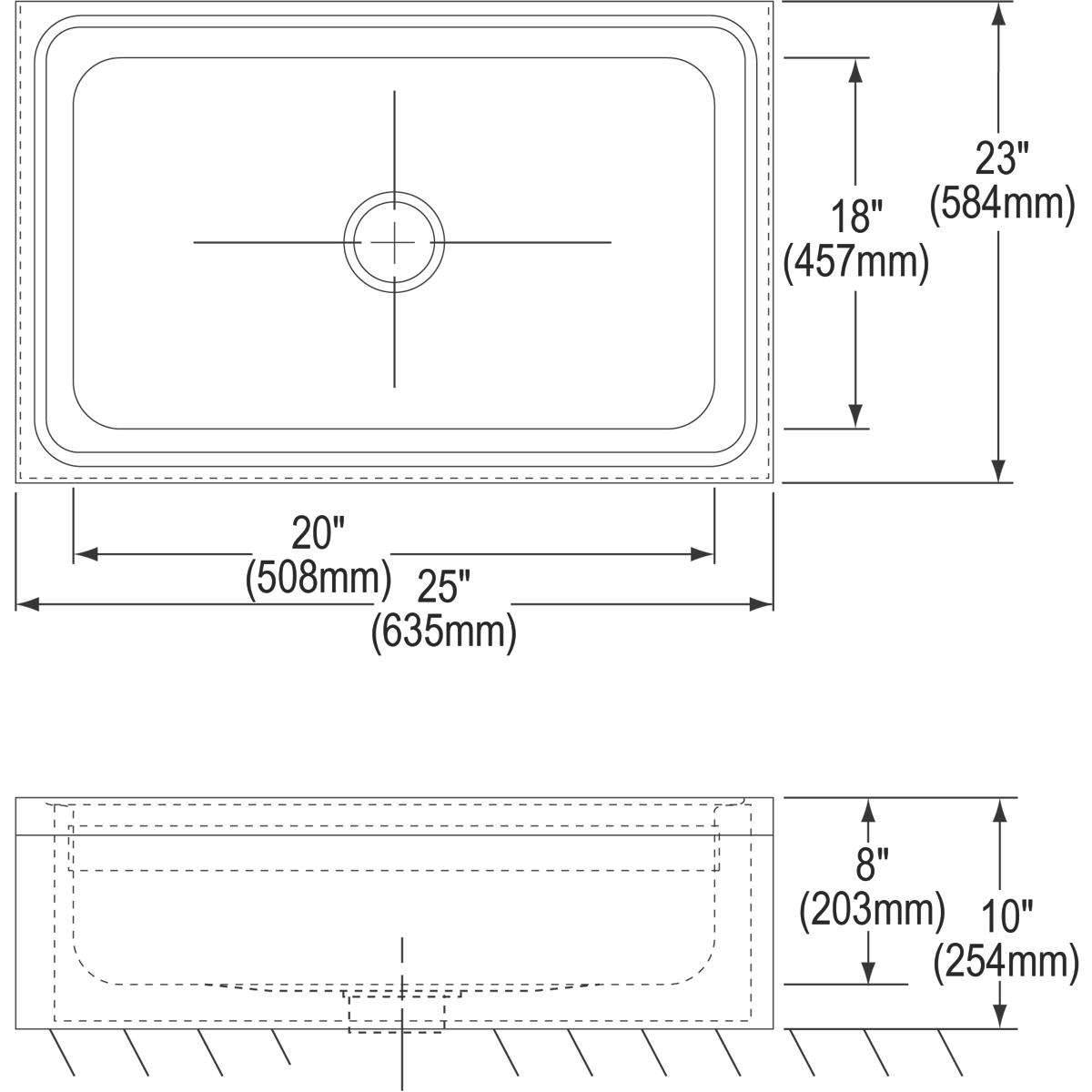

Dimensions
| Outlet Size | 4-9/16" | — | — |
Details
| Series | EFS2523C | Device Type | Stainless Steel 25" x 23" x 8" Single Bowl Floor Mount Service Sink Package |
| Body Material | Stainless Steel | Contents | EFS2523 sink, one LK43 drain |
| Baa | USA | Coating | Buffed Satin |
| Mount type | Floor | Overall height in | 8.0 in |
| Overall length in | 25.0 in | Overall width in | 23.0 in |
| Bowl count | 1 | Bowl dimensions | 20-1/16" x 17-15/16" x 8" |
| Drain location | Center | Gauge | 16 |
| Sound deadening | Bottom only pads | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | — |
Compare with similar products
| Contents | EFS2523 sink, one LK43 drain
| ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap
| ESSW2118 sink, one LKB940C faucet, one LK173 cast iron P-trap
| ESSB2520 sink, one LK940BR03L2H faucet, one LK173 cast iron P-trap
| ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain
| ESS4924 sink, one LK940GN08T4H faucet, one LK18B grid drain
|
| Series | EFS2523C
| ESSW2319C
| ESSW2118C
| ESSB2520C
| ESS4924RW6C
| ESS4924RW4C
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Stainless Steel 25" x 23" x 8" Single Bowl Floor Mount Service Sink Package
| Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 21" x 17-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
| Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
|
| Outlet Size | 4-9/16"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
|
