Description
The Elkay ESS4924RW6C is a Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit. It features a stainless steel body.
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- 14-gauge, Type 304 stainless steel.
- 1/4" radius vertical and horizontal coved corners with 1½" rolled rims.
- 8" high, full-length backsplash with 45-degree sloped top.
- Exposed surfaces are blended by hand to a uniform lustrous satin finish.
- Easy to clean and sanitize.
- 3-1/2" drain opening.
- Furnished with wall hanger and stainless steel support brackets.
- Right-hand 30" drainboard.

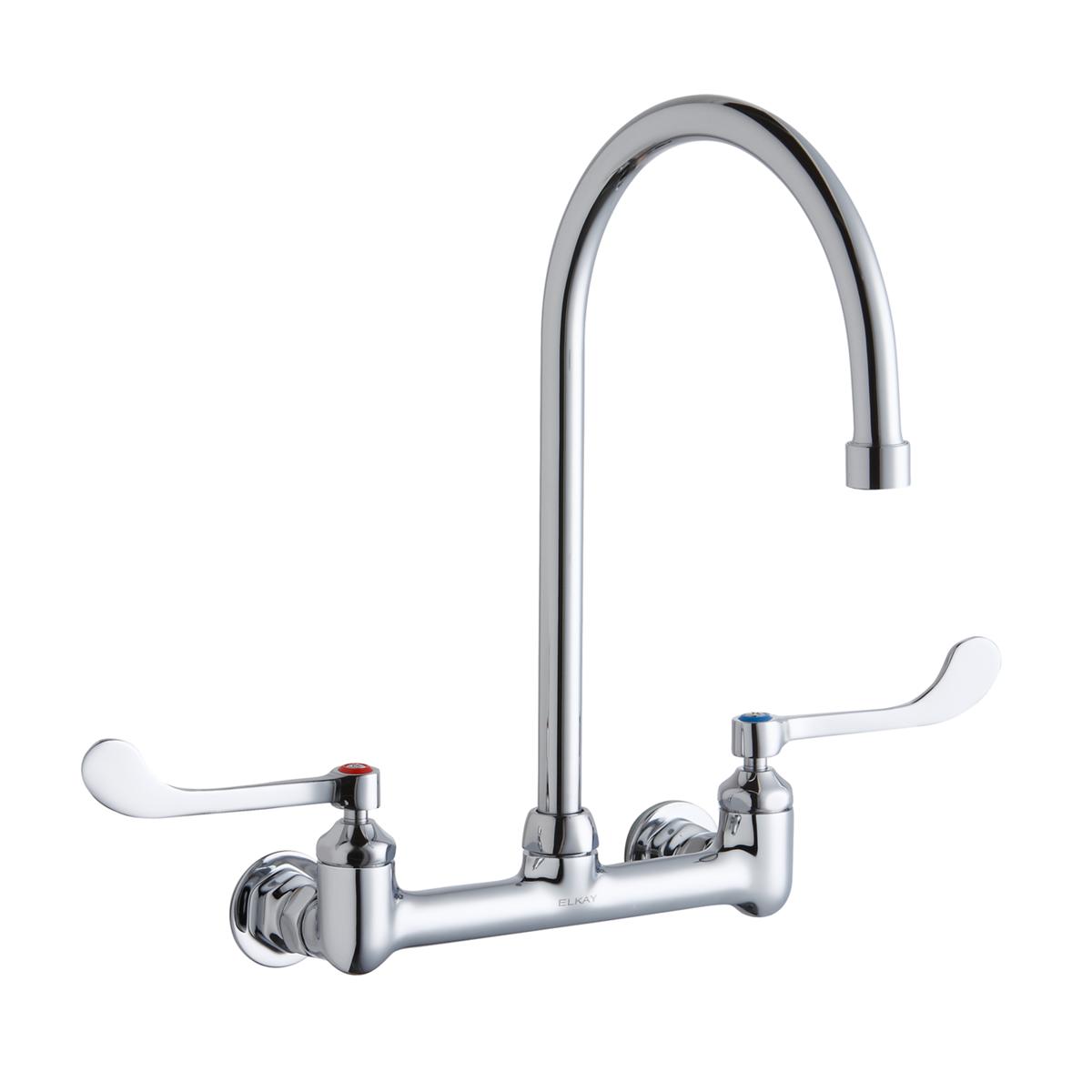

- KIT INCLUDES: ESS4924 sink, one LK940GN08T6H faucet, and one LK18B grid drain; save time having to purchase each piece separately.
Common Questions
- What does 14-gauge mean?
- 14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
- Will my faucet fit?
- Check your existing hole pattern against this sink's drilling: 2.
- What is included in the kit?
- This kit includes: ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain.
Specifications
- Type: Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
- Outlet Size: 3-1/2"
- Body Material: Stainless Steel
- MPN: ESS4924RW6C
- Certifications: ASME A112.19.3/CSA B45.4
- Number of Bowls: 1
- Bowl Dimensions: 18" x 20-1/2" x 10"
- Drain Location: Center
- Gauge: 14
- Mount Type: Wall-Mount
- Coating / Finish: Buffed Satin
- Faucet Holes: 2
- Overall Length (in): 49.5
- Overall Width (in): 24.0
- Overall Height (in): 10.0
- Kit Includes: ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain

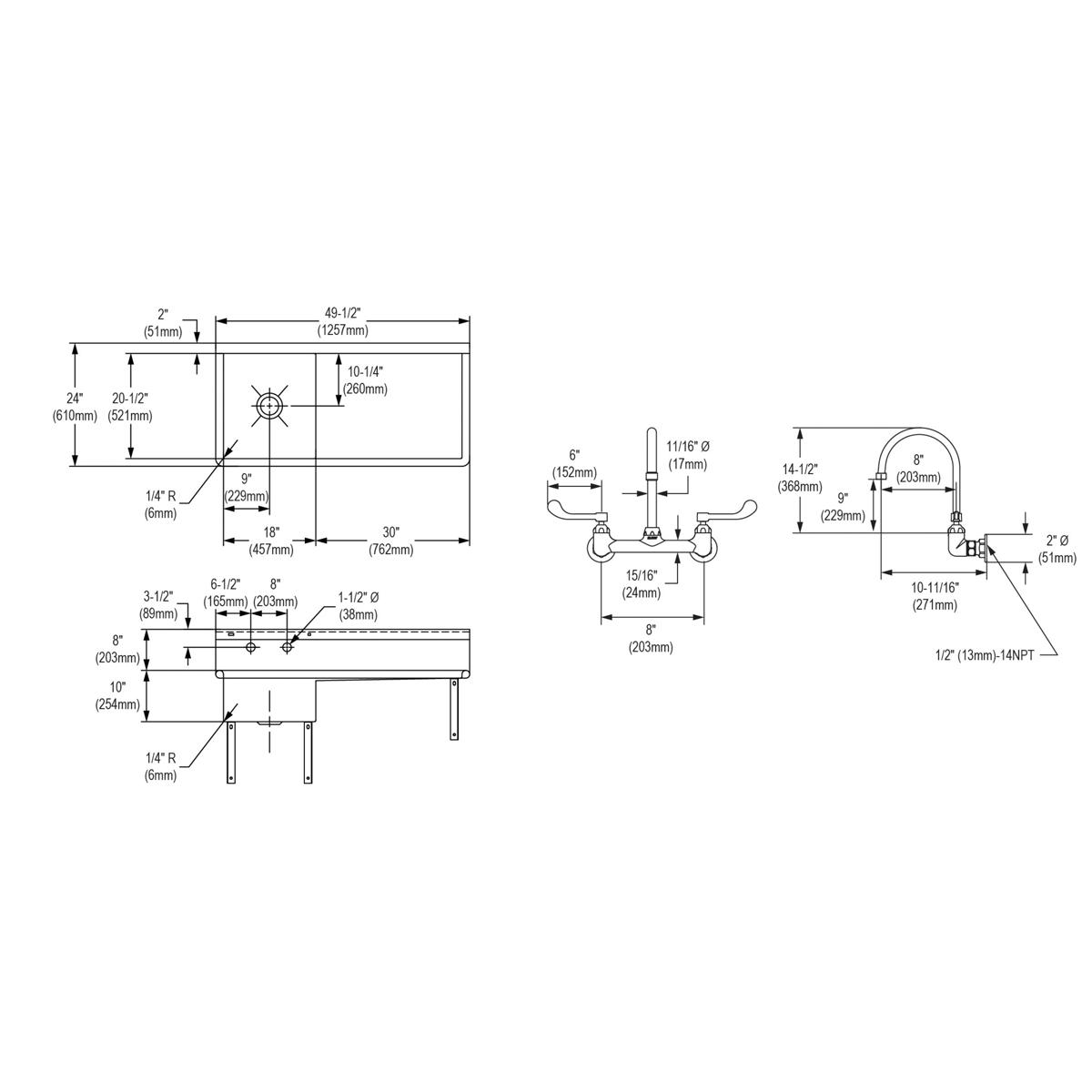

Dimensions
| Outlet Size | 3-1/2" | — | — |
Details
| Series | ESS4924RW6C | Device Type | Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit |
| Body Material | Stainless Steel | Contents | ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain |
| Baa | USA | Coating | Buffed Satin |
| Hole count | 2 | Mount type | Wall-Mount |
| Overall height in | 10.0 in | Overall length in | 49.5 in |
| Overall width in | 24.0 in | Bowl count | 1 |
| Bowl dimensions | 18" x 20-1/2" x 10" | Drain location | Center |
| Gauge | 14 | — | — |
Certifications & Standards
| ASME A112.19.3/CSA B45.4 | — |
Compare with similar products
| Contents | ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain
| ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap
| ESSW2118 sink, one LKB940C faucet, one LK173 cast iron P-trap
| ESSB2520 sink, one LK940BR03L2H faucet, one LK173 cast iron P-trap
| ESS4924 sink, one LK940GN08T4H faucet, one LK18B grid drain
| ESSW2520 sink, one LKB940C faucet, one LK173 cast iron P-trap
|
| Series | ESS4924RW6C
| ESSW2319C
| ESSW2118C
| ESSB2520C
| ESS4924RW4C
| ESSW2520C
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
| Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 21" x 17-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink Kit
| Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
| Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink Kit
|
| Outlet Size | 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
| 3-1/2"
|
| Body Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Certifications | ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4, IAPMO
| ASME A112.19.3/CSA B45.4
| ASME A112.19.3/CSA B45.4
|
