Elkay Stainless Steel 23" x 18-1/2" x 12, Wall Hung Service Sink Kit ESSW2319C

SKU: ESSW2319C
Price:
Sale price$3,255.75 Regular price$4,341.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $3,255.75

Free shipping over $200

Key Features

Bowls 1
Mount Type Wall-Mount
Gauge 14
Spec Sheet Download
See all product information

Similar products

Chicago Faucets 8" Wall Mounted Straight Sink Faucet 897 Series
Chicago Faucets 1-100XTDAB CartridgeChicago Faucets 1-100Xtdab Left Hand Quaturn Unit
Chicago Faucets Chicago Faucets 1-100XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Chicago Faucets 1-099XTDAB CartridgeChicago Faucets Right Hand Quaturn Unit 1-099XTDAB
Chicago Faucets Chicago Faucets 1-099XTDAB Cartridge
Sale price$31.26 Regular price$43.23
Compare Products

Specifications

Description

The Elkay ESSW2319C is a Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit. It features a stainless steel body.

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

Features

  • 14-gauge, Type 304 stainless steel.
  • 1-3/4" coved corners.
  • 1-1/2" rolled rims.
  • 12" high, full-length backsplash.
  • Exposed surfaces blended by hand to a uniform lustrous satin finish.
  • 3-1/2" drain opening.
  • Furnished with wall hanger and stainless steel support brackets.

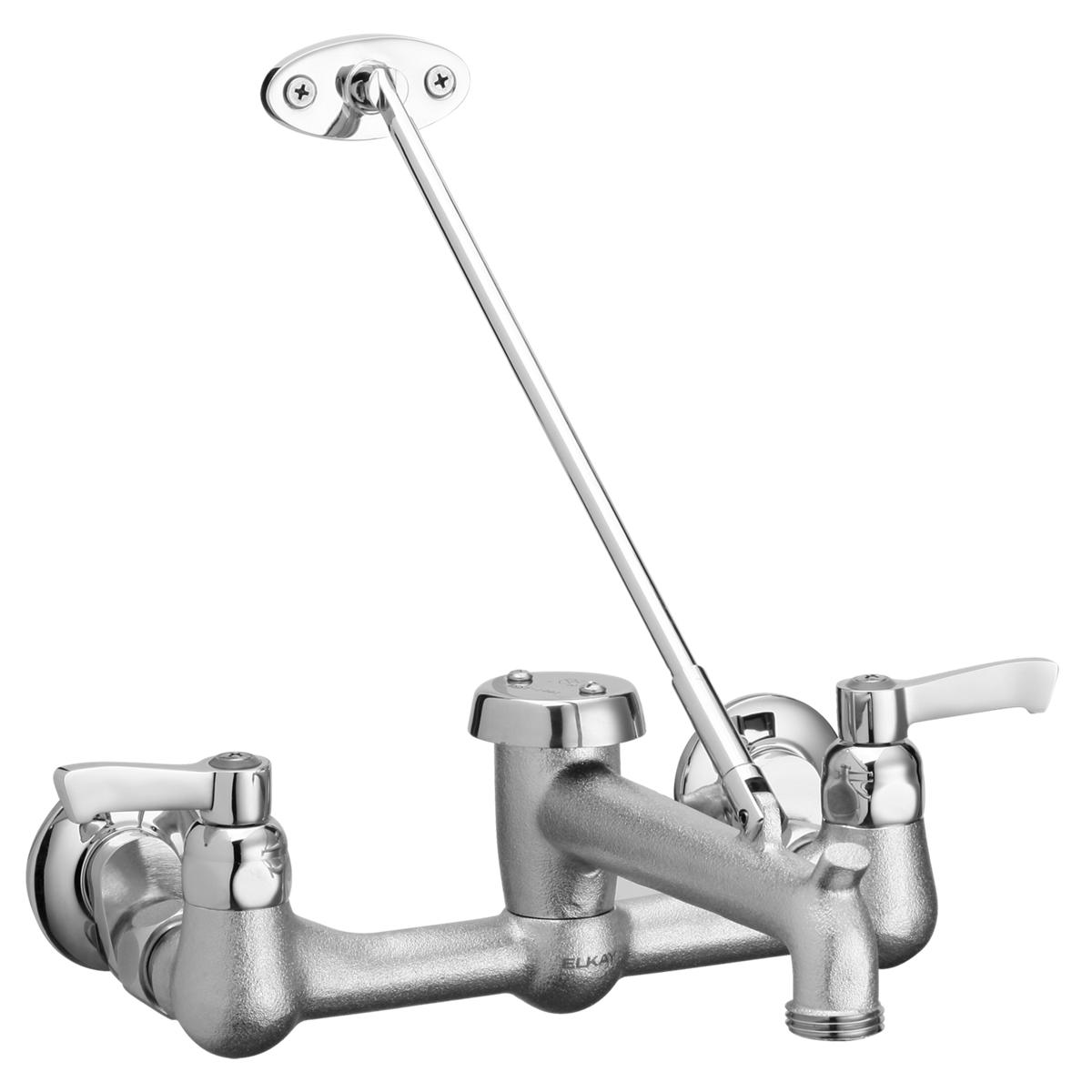

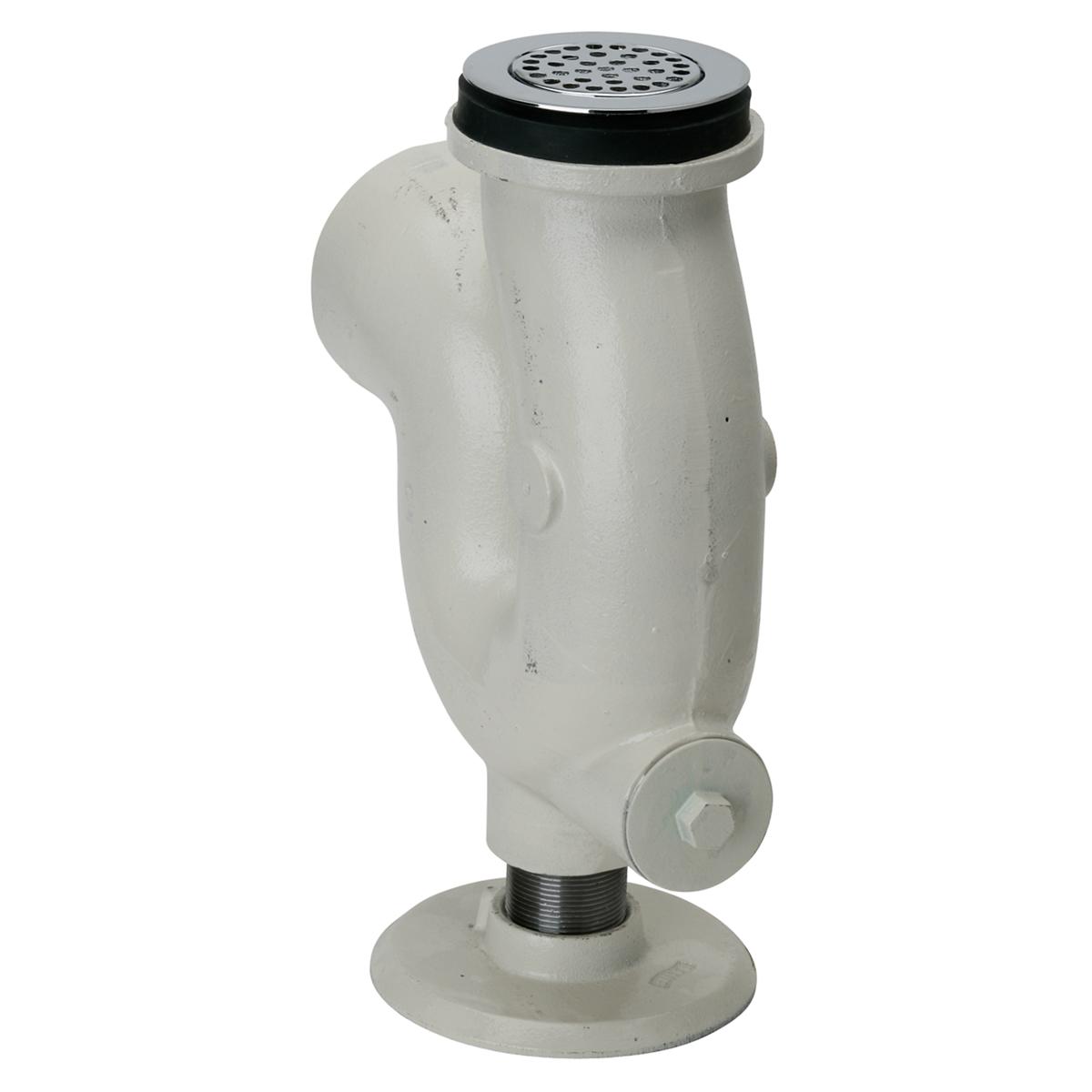

  • KIT INCLUDES: ESSW2319 sink, one LKB940C faucet, and one LK173 cast iron P-trap; save time having to purchase each piece separately.

Common Questions

What does 14-gauge mean?
14 gauge is the thickness of the stainless steel -- a lower number is thicker, quieter and more dent-resistant.
What is included in the kit?
This kit includes: ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap.

Specifications

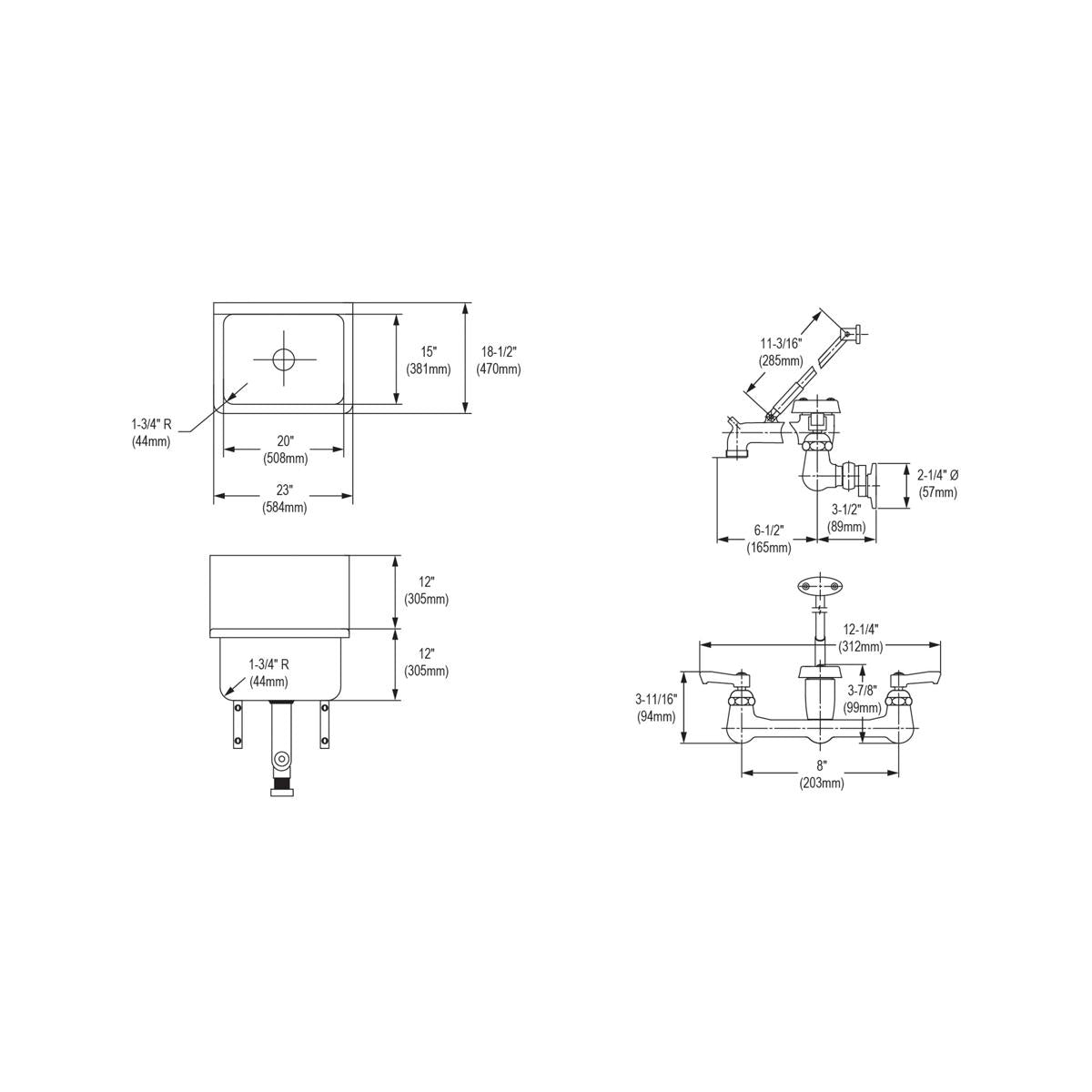

  • Type: Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit
  • Outlet Size: 3-1/2"
  • Body Material: Stainless Steel
  • MPN: ESSW2319C
  • Certifications: ASME A112.19.3/CSA B45.4
  • Number of Bowls: 1
  • Bowl Dimensions: 20" x 15" x 12"
  • Drain Location: Center
  • Gauge: 14
  • Mount Type: Wall-Mount
  • Coating / Finish: Buffed Satin
  • Overall Length (in): 23.0
  • Overall Width (in): 18.5
  • Overall Height (in): 39.75
  • Kit Includes: ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap

Product Information

SKUUPCSpec SheetInstall Sheet
ESSW2319C 094902020648 DownloadDownload

Dimensions

Outlet Size 3-1/2" ——

Details

Series ESSW2319C Device Type Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit
Body Material Stainless Steel Contents ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap
Baa USA Coating Buffed Satin
Mount type Wall-Mount Overall height in 39.75 in
Overall length in 23.0 in Overall width in 18.5 in
Bowl count 1 Bowl dimensions 20" x 15" x 12"
Drain location Center Gauge 14

Certifications & Standards

ASME A112.19.3/CSA B45.4 —

Compare with similar products

Contents
ESSW2319 sink, one LKB940C faucet, one LK173 cast iron P-trap
ESSW2118 sink, one LKB940C faucet, one LK173 cast iron P-trap
ESSB2520 sink, one LK940BR03L2H faucet, one LK173 cast iron P-trap
ESS4924 sink, one LK940GN08T6H faucet, one LK18B grid drain
ESS4924 sink, one LK940GN08T4H faucet, one LK18B grid drain
ESSW2520 sink, one LKB940C faucet, one LK173 cast iron P-trap
Series
ESSW2319C
ESSW2118C
ESSB2520C
ESS4924RW6C
ESS4924RW4C
ESSW2520C
Spec Sheet
Install Sheet
Device Type
Stainless Steel 23" x 18-1/2" x 12 Wall Hung Service Sink Kit
Stainless Steel 21" x 17-1/2" x 12 Wall Hung Service Sink Kit
Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink Kit
Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
Stainless Steel 49-1/2" x 24" x 10 Wall Hung Service Sink Kit
Stainless Steel 25" x 19-1/2" x 12 Wall Hung Service Sink Kit
Outlet Size
3-1/2"
3-1/2"
3-1/2"
3-1/2"
3-1/2"
3-1/2"
Body Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Certifications
ASME A112.19.3/CSA B45.4
ASME A112.19.3/CSA B45.4
ASME A112.19.3/CSA B45.4, IAPMO
ASME A112.19.3/CSA B45.4
ASME A112.19.3/CSA B45.4
ASME A112.19.3/CSA B45.4
