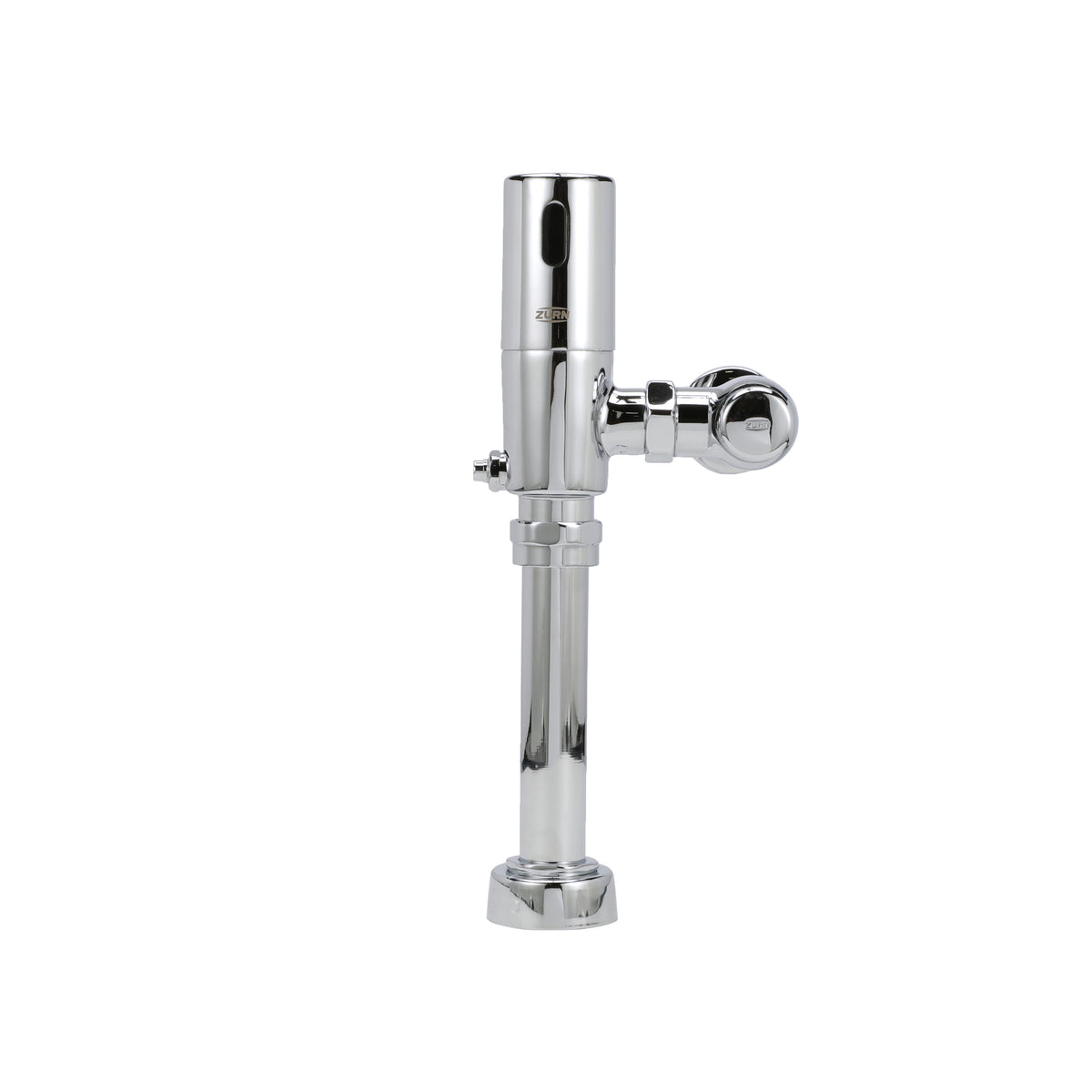

The Zurn ZTR6200-WS1 is a sensor-operated flush valve for a water closet. It delivers 1.6 gallons per flush. It features a brass body.
ZTR6200 series exposed, top mounted sensor activated flush valve for hands-free operation. Piston-type design, chrome plated flushometer valve with a polished exterior. Complete with chloramine resistant Internal seals and filtered piston kit. The valve features automatic sensor operation with manual override push button and robust vandal resistant metal cover. Available in flush volumes from 1.6 gpf to 1.1 gpf. Ideal for new construction and retrofit commercial restroom applications.
Common Questions
- How much water does this use per flush?
- 1.6 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Battery-powered -- no wiring required.
- What fixture is this for?
- A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Sensor Flush Valve for Water Closets
- Outlet Size: 1-1/2"
- Body Material: Brass
- Operation: Sensor
- MPN: ZTR6200-WS1
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 1.6
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Power Source: DC (Battery)
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | ZTR6200-WS1 | Device Type | Sensor Flush Valve for Water Closets |
| Body Material | Brass | Operation | Sensor |
| Fixture Served | Water Closet | Backflow device | Vacuum Breaker |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Spud connection | Top Spud | Vandal resistant | Yes |
| Power source | DC (Battery) | — | — |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | ZTR6200-WS1
| ZTR6203-ULF
| ZTR6203-EWS-LL
| ZTR6203-EWS
| ZTR6203-ULF-LL
| ZTR6203-QRT
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Sensor Flush Valve for Water Closets
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
|
| Outlet Size | 1-1/2"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
