Specifications
Description

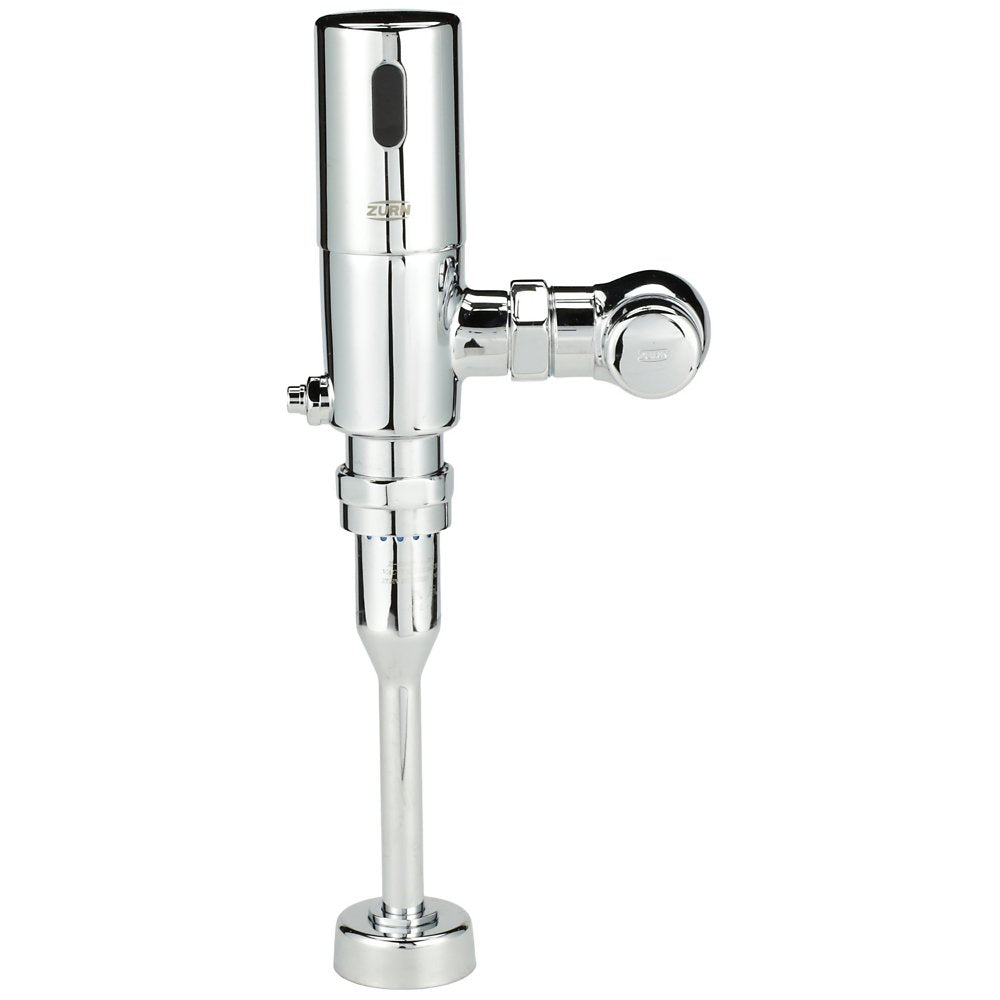

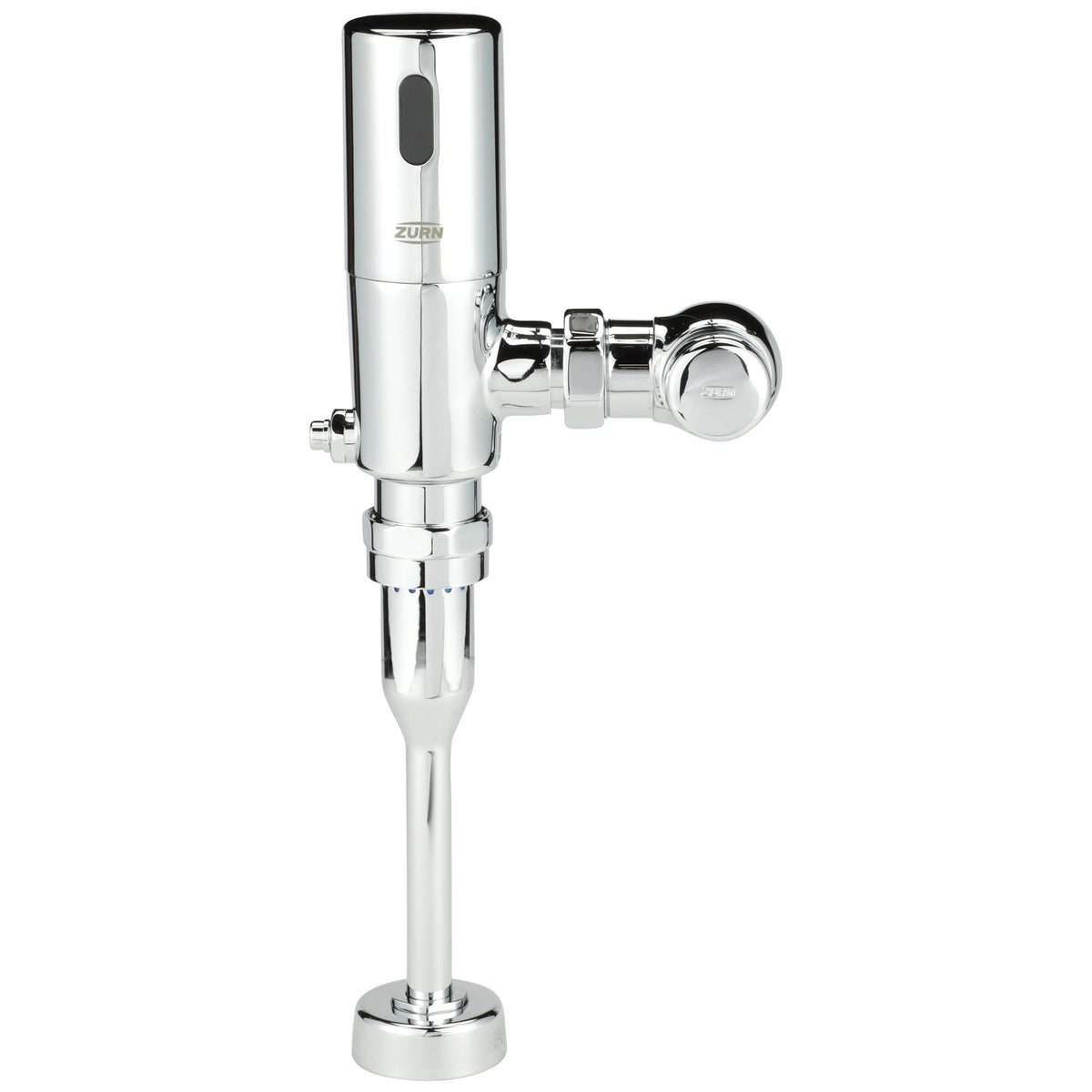

The Zurn ZTR6203-QRT is a sensor-operated flush valve for an urinal. It delivers 0.25 gallons per flush.
Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.
Features
- Battery-powered sensor operated flush valve
- Clog resistant piston operation with manual override button provides reliable actuation
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- 3-year limited warranty
- Battery-powered, 4 AA’s, with 3-year battery life, standard
Common Questions
- How much water does this use per flush?
- 0.25 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Battery-powered -- no wiring required.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Zurn ZTR Sensor Flush Valve for Urinals
- Outlet Size: 3/4"
- Operation: Sensor
- MPN: ZTR6203-QRT
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 0.25
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Power Source: DC (Battery)
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | ZTR6203-QRT | Device Type | Zurn ZTR Sensor Flush Valve for Urinals |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 0.25 gal | Mount type | Wall-Mount |
| Rough in in | 11-1/2" | Spud connection | Top Spud |
| Vandal resistant | Yes | Power source | DC (Battery) |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Urinal
| Urinal
| Urinal
|
| Series | ZTR6203-QRT
| ZTR6203-ULF
| ZTR6203-EWS-LL
| ZTR6203-EWS
| ZTR6203-ULF-LL
| ZTR6203-WS1-LL
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
| Zurn ZTR Sensor Flush Valve for Urinals
|
| Outlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
