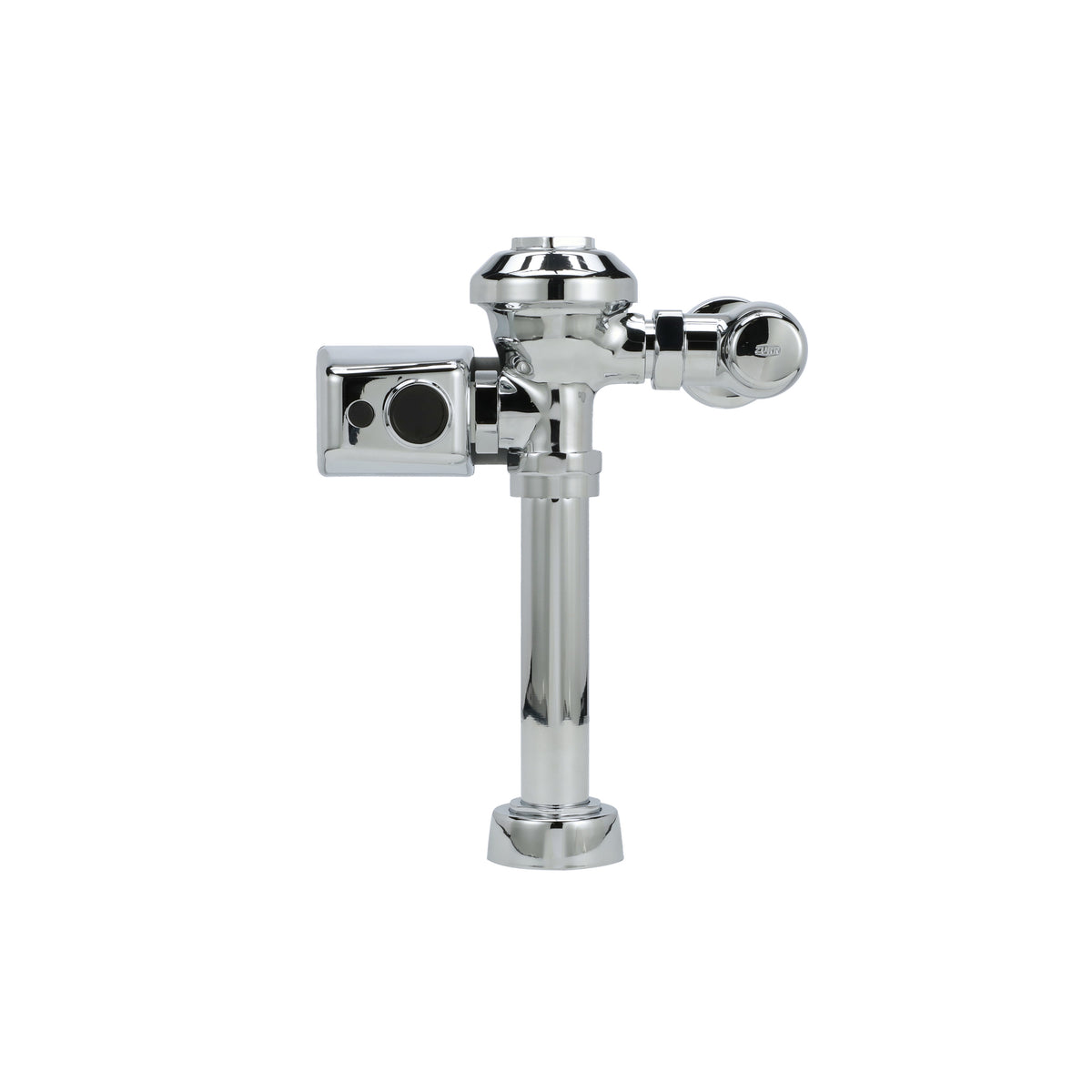

The Zurn ZER6000AV-WS1-CPM is a sensor-operated flush valve for a water closet. It delivers 1.6 gallons per flush. It features a aquavantage tpe diaphragm seat.
Zurn’s AquaVantage® AV Exposed Sensor Diaphragm Flush Valves are engineered for performance and water conservation. The ZER6000AV-CPM's battery-powered sensor accurately detects the user for hands-free water closet operation. Each flush valve contains a quiet GO BLUE® dual-seal diaphragm with a clog-resistant triple filtered bypass and chloramine-resistant seals for an extended lifespan and lower maintenance costs. It includes an adjustable tailpiece and, a manual override button. It offers optional flush rates ranging from a boosted 4.5 gpf full flush to a high-efficiency 1.28 gpf. With a durable, chrome-plated metal cover, the ZER6000AV-CPM is a high-performing, water-saving solution for any commercial retrofit or new construction project.
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Chrome-plated metal E-Z Flush sensor unit with 3-year battery life
- 3-year limited warranty
Common Questions
- How much water does this use per flush?
- 1.6 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Battery-powered -- no wiring required.
- What fixture is this for?
- A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets
- Outlet Size: 1-1/2"
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Sensor
- MPN: ZER6000AV-WS1-CPM
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 1.6
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Power Source: DC (Battery)
- Sensor Type: Infrared
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | ZER6000AV-WS1-CPM | Device Type | AquaVantage® AV Exposed, Sensor Operated, Battery Powered, Flush Valve for Water Closets |
| Seat Material | AquaVantage TPE Diaphragm | Operation | Sensor |
| Fixture Served | Water Closet | Backflow device | Vacuum Breaker |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Spud connection | Top Spud | Vandal resistant | Yes |
| Power source | DC (Battery) | — | — |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
