Similar products
Specifications
Description

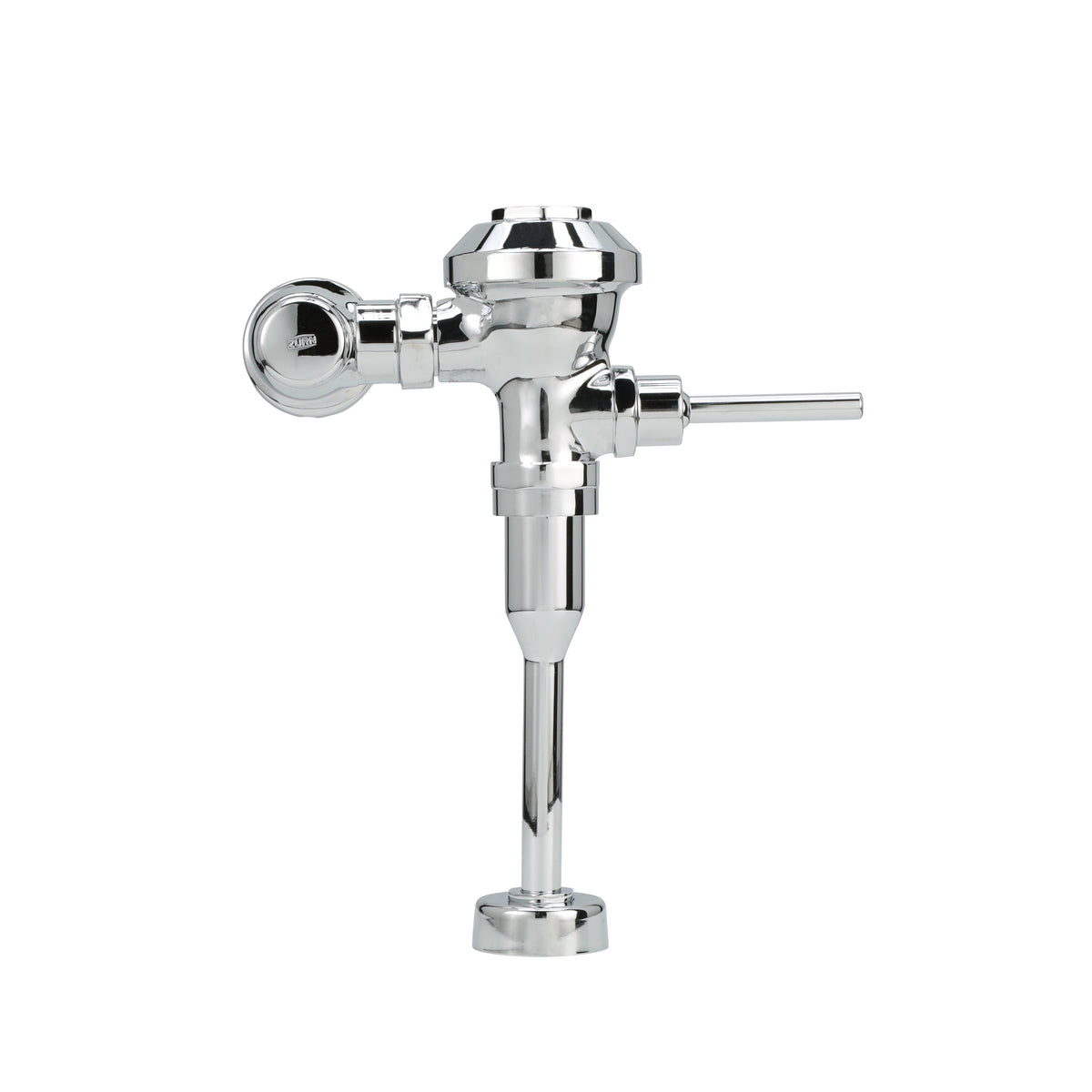

The Zurn Z6003-WS1-YB-YC is a manual flush valve for an urinal. It delivers 1.0 gallons per flush. It features a aquaflush filtered diaphragm seat.
Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Manual ADA compliant handle with no-leak seal technology
Common Questions
- How much water does this use per flush?
- 1.0 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Aquaflush Exposed Urinal Flush Valve
- Outlet Size: 3/4"
- Diaphragm Material: AquaFlush Filtered Diaphragm
- Operation: Manual
- MPN: Z6003-WS1-YB-YC
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Handle Style: Standard Handle
- Volume per Flush (gal): 1.0
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | Z6003-WS1-YB-YC | Device Type | Aquaflush Exposed Urinal Flush Valve |
| Seat Material | AquaFlush Filtered Diaphragm | Operation | Manual |
| Fixture Served | Urinal | Backflow device | Vacuum Breaker |
| Coating | Polished Chrome | Cycle volume gal | 1.0 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Spud connection | Top Spud | Vandal resistant | Yes |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Water Closet
| Water Closet
| Water Closet
|
| Series | Z6003-WS1-YB-YC
| Z6003-EWS-YB-YC
| Z6003
| Z6000-WS1-YB-YC
| Z6000-HET-YB-YC
| Z6000-YB-YC
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Aquaflush Exposed Urinal Flush Valve
| Aquaflush Exposed Urinal Flush Valve
| Aquaflush Exposed Urinal Flush Valve
| Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
| Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
| Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
|
| Outlet Size | 3/4"
| 3/4"
| 3/4"
| 1-1/2"
| 1-1/2"
| 1-1/2"
|
| Seat Material | AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
