Description

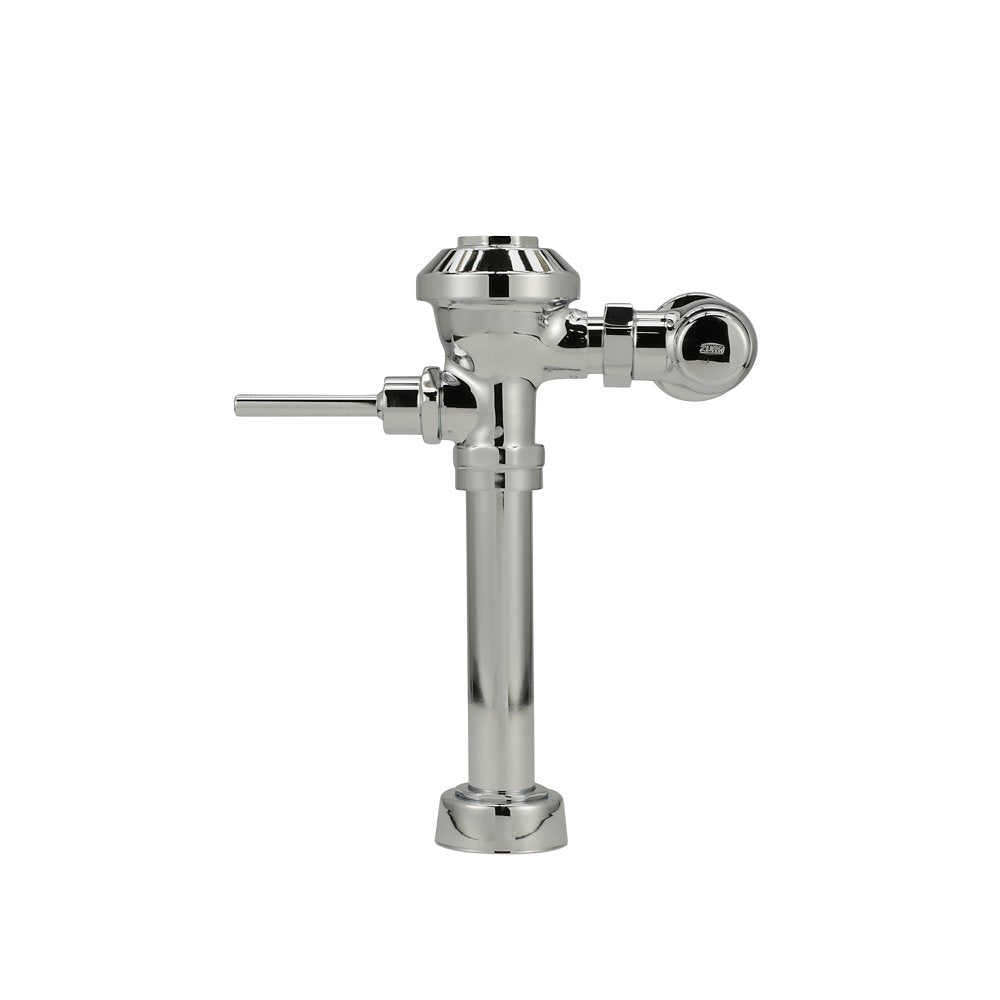

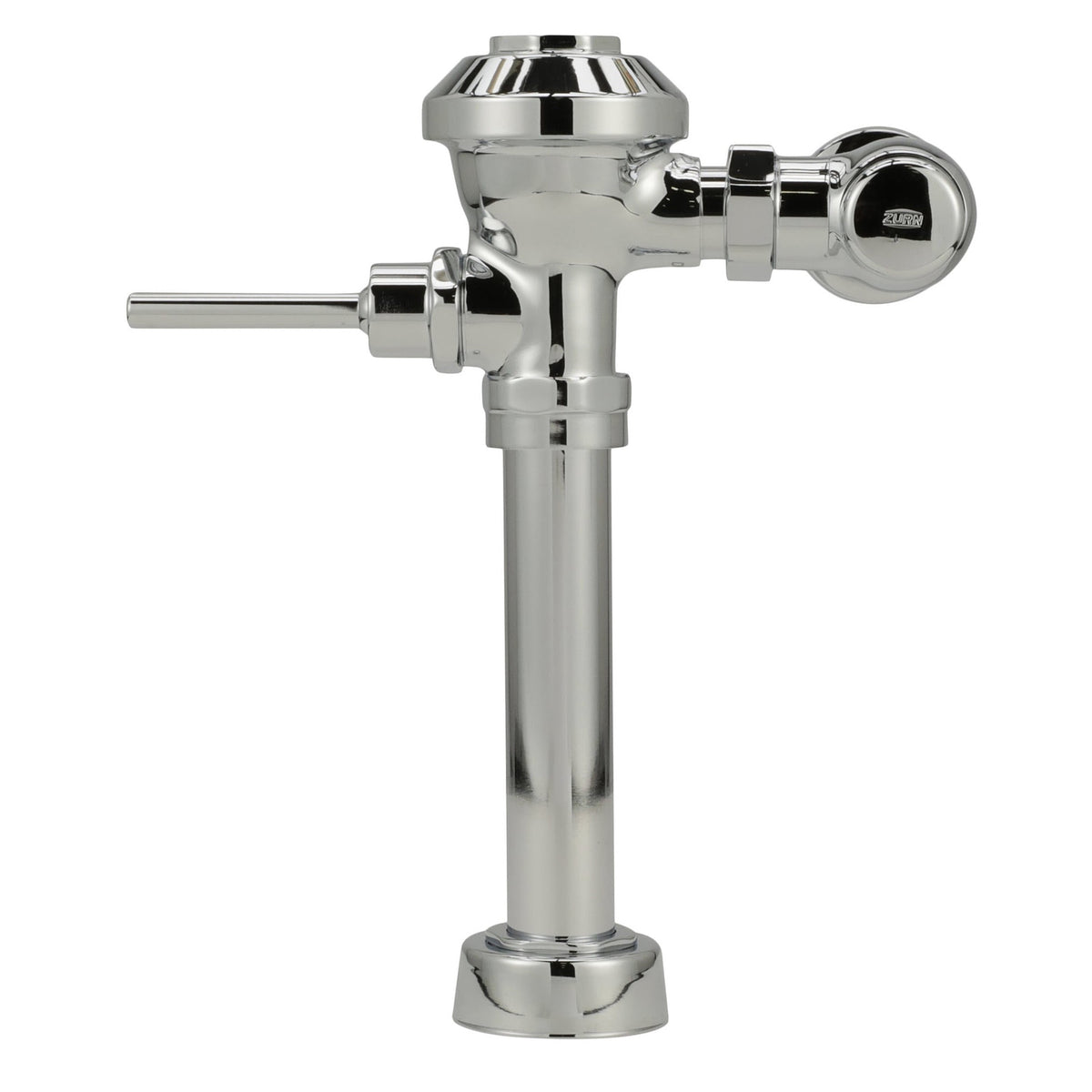

The Zurn Z6000-WS1-YB-YC is a manual flush valve for a water closet. It delivers 1.6 gallons per flush. It features a aquaflush filtered diaphragm seat.
Zurn manual flush valves provide a more reliable and sustainable restroom experience. Zurn Aquaflush® exposed quiet diaphragm type flush valve with top spud connection for water closets.
Features
- Clog-resistant linear bypass diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Quiet operation and soft-close technology that eliminates water hammer
- Polished chrome finish
- 3-year warranty
- LEED and WaterSense compliant options
- Low force ADA compliant handle
Common Questions
- How much water does this use per flush?
- 1.6 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- What fixture is this for?
- A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
- Outlet Size: 1-1/2"
- Diaphragm Material: AquaFlush Filtered Diaphragm
- Operation: Manual
- MPN: Z6000-WS1-YB-YC
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Handle Style: Standard Handle
- Volume per Flush (gal): 1.6
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | Z6000-WS1-YB-YC | Device Type | Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve |
| Seat Material | AquaFlush Filtered Diaphragm | Operation | Manual |
| Fixture Served | Water Closet | Backflow device | Vacuum Breaker |
| Coating | Polished Chrome | Cycle volume gal | 1.6 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Spud connection | Top Spud | Vandal resistant | Yes |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Urinal
| Urinal
| Urinal
| Water Closet
| Water Closet
|
| Series | Z6000-WS1-YB-YC
| Z6003-WS1-YB-YC
| Z6003-EWS-YB-YC
| Z6003
| Z6000-HET-YB-YC
| Z6000-YB-YC
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
| Aquaflush Exposed Urinal Flush Valve
| Aquaflush Exposed Urinal Flush Valve
| Aquaflush Exposed Urinal Flush Valve
| Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
| Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
|
| Outlet Size | 1-1/2"
| 3/4"
| 3/4"
| 3/4"
| 1-1/2"
| 1-1/2"
|
| Seat Material | AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
| AquaFlush Filtered Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
