Description

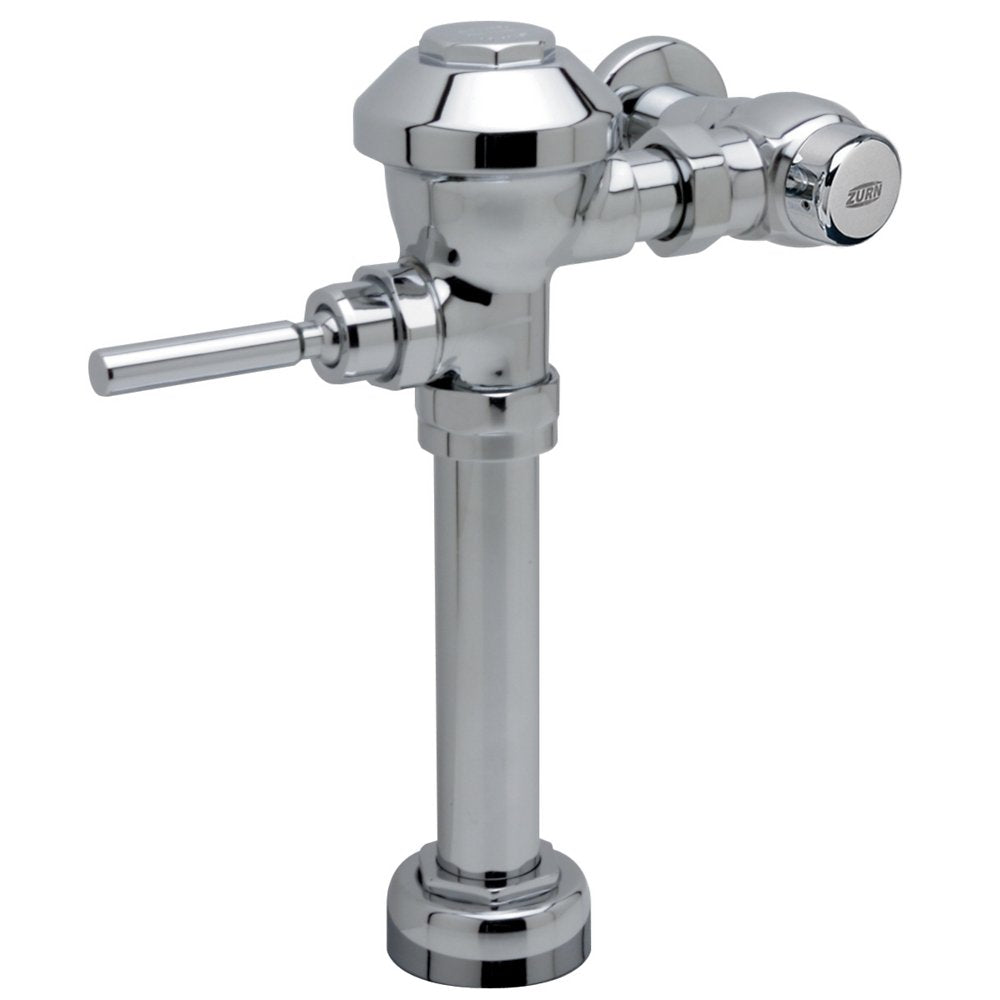

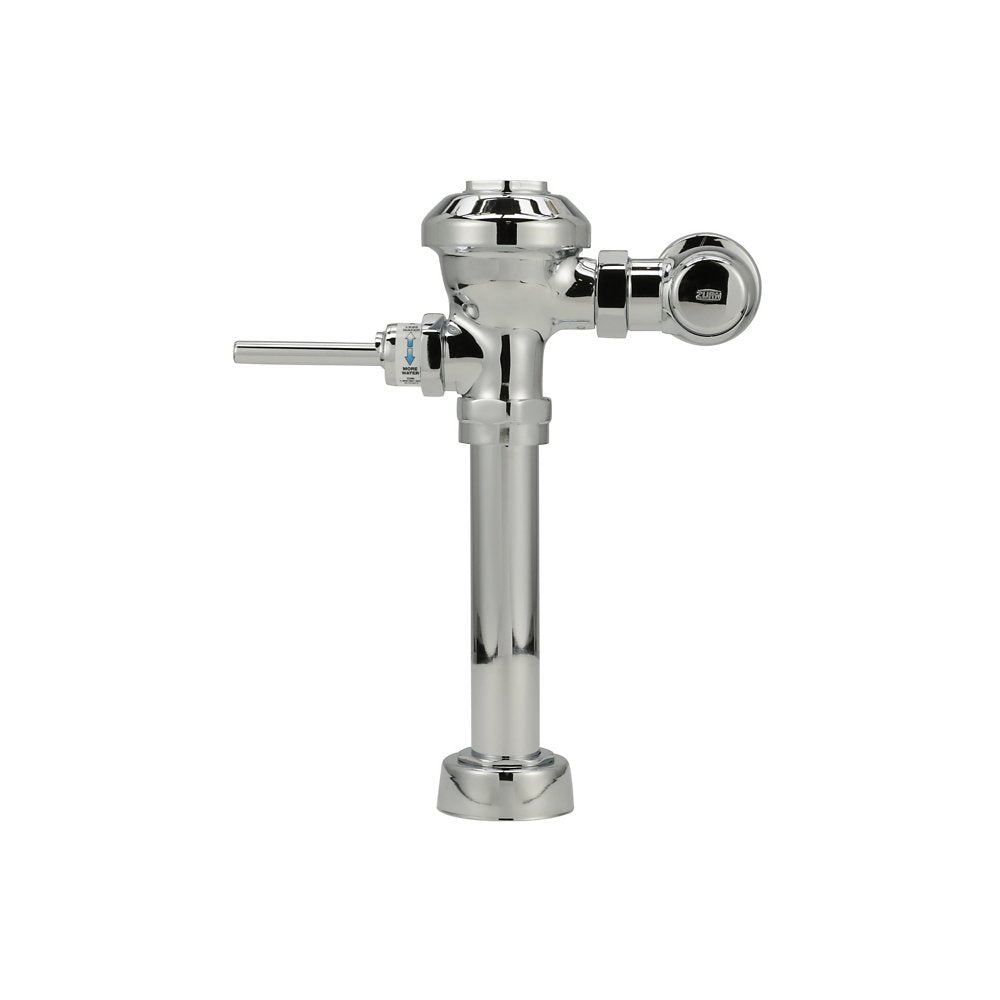

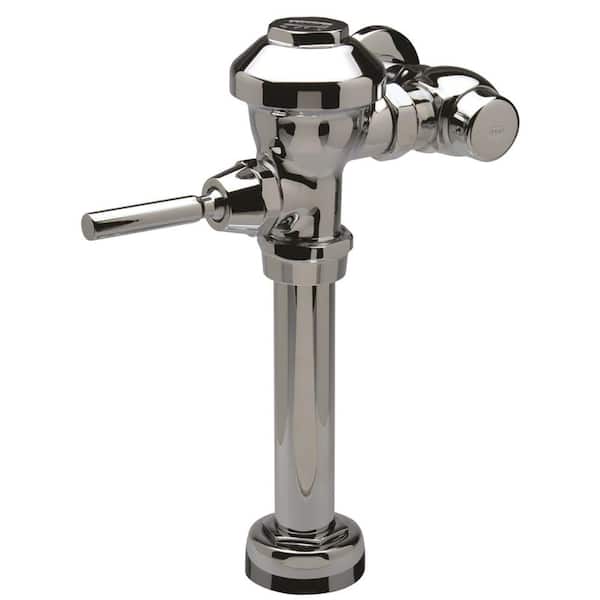

The Zurn Z6000AV-ONE is a manual flush valve for a water closet. It delivers 1.1 gallons per flush. It features a brass body and a aquavantage tpe diaphragm seat.
Engineered for performance, Zurn's AquaVantage® Exposed Manual Diaphragm Flush Valves provide consistent and reliable water closet operation. They feature a streamlined design while providing high-level performance, unsurpassed water conservation, and long-lasting savings. Each flush valve contains a quiet chemical and clog-resistant GO BLUE® triple-filter diaphragm, reducing maintenance expenses and extending their lifespan. The Z6000AV is available with flush rates ranging from a 3.5 gpf full flush to a maximum water-conserving 1.1 gpf. It even offers a dual-flush option. AquaVantage flush valves include a vandal-resistant control stop cover, a high-pressure vacuum breaker, a cast wall flange with set screw, and an ADA-compliant no-leak handle. Their advanced features make this line a leading solution for any commercial retrofit or new construction project.
Features
- Clog-resistant triple filter diaphragm

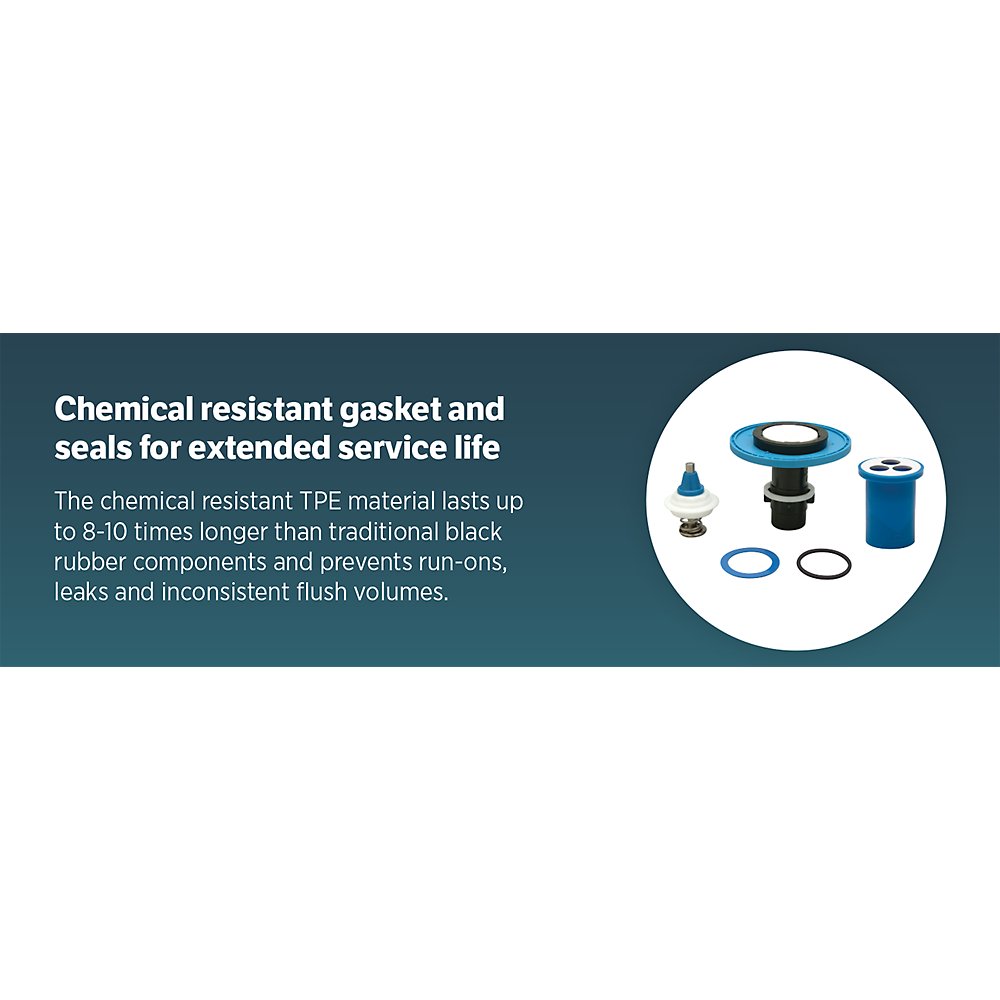

- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Manual ADA compliant handle with no-leak seal technology
- 3-year limited warranty
Common Questions
- How much water does this use per flush?
- 1.1 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- What fixture is this for?
- A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: AquaVantage® ‘AV’ Exposed Closet Flush Valve
- Outlet Size: 1-1/2"
- Body Material: Brass
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Manual
- MPN: Z6000AV-ONE
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Water Closet
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Handle Style: Standard Handle
- Volume per Flush (gal): 1.1
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
Dimensions
| Outlet Size | 1-1/2" | — | — |
Details
| Series | Z6000AV-ONE | Device Type | AquaVantage® ‘AV’ Exposed Closet Flush Valve |
| Body Material | Brass | Seat Material | AquaVantage TPE Diaphragm |
| Operation | Manual | Fixture Served | Water Closet |
| Backflow device | Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 1.1 gal | Mount type | Wall-Mount |
| Rough in in | 11-1/2" | Spud connection | Top Spud |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Water Closet
| Bedpan Washer
| Bedpan Washer
| Bedpan Washer
| Urinal
| Urinal
|
| Series | Z6000AV-ONE
| Z6011AV-HET-BWN
| Z6000AV-WS1-BWN
| Z6011AV-BWN
| Z6003AV-ULF
| Z6003AV-WS1
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | AquaVantage® ‘AV’ Exposed Closet Flush Valve

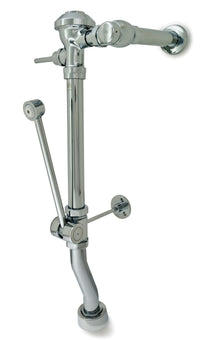

| Flush Valve with Bedpan Washer for Water Closets with Handicap Grab Bar
| AquaVantage® ‘AV’ Exposed Closet Flush Valve with Bed- pan Washer
| Flush Valve with Bedpan Washer for Water Closets with Handicap Grab Bar
| AquaVantage® ‘AV’ Exposed Urinal Flush Valve
| AquaVantage® ‘AV’ Exposed Urinal Flush Valve
|
| Outlet Size | 1-1/2"
| — | — | — | 3/4"
| 3/4"
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
