Description

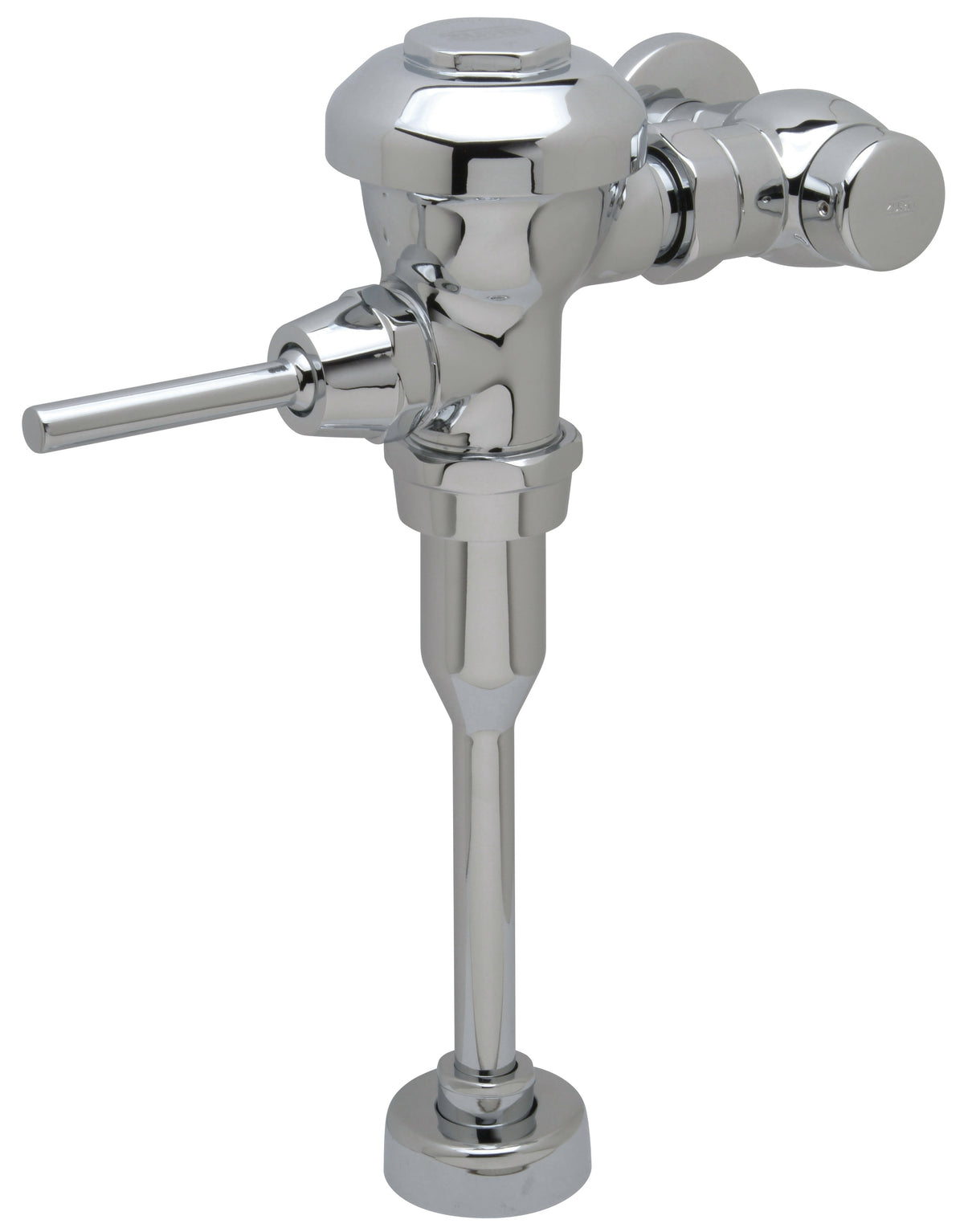

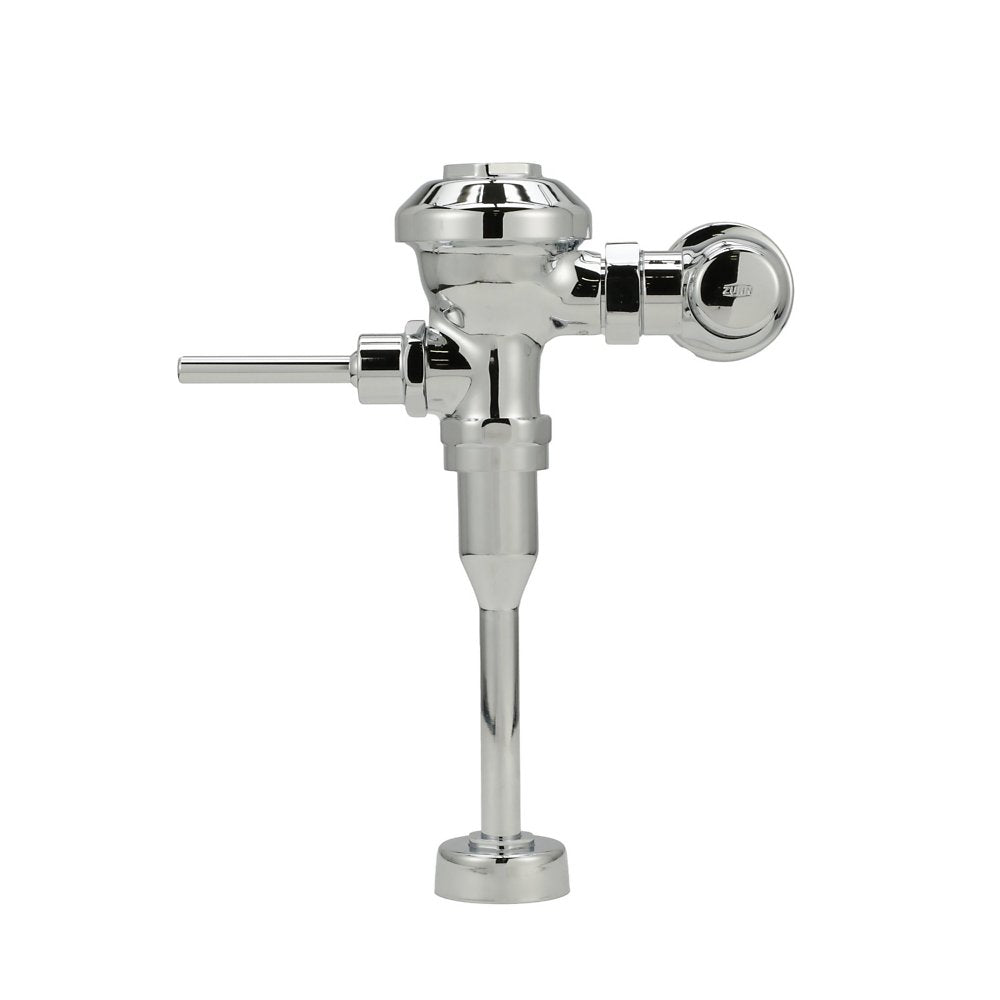

The Zurn Z6003AV-ULF is a manual flush valve for an urinal. It delivers 0.125 gallons per flush. It features a brass body and a aquavantage tpe diaphragm seat.
Manual flush valve Z6003AV comes with Zurn AquaVantage® exposed quiet diaphragm type flush valve and has a top spud connection for 3/4" Urinals. It is ADA compliant and comes with a 3 year warranty.
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Manual ADA compliant handle with no-leak seal technology
- 3-year warranty
Common Questions
- How much water does this use per flush?
- 0.125 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: AquaVantage® ‘AV’ Exposed Urinal Flush Valve
- Outlet Size: 3/4"
- Body Material: Brass
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Manual
- MPN: Z6003AV-ULF
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Handle Style: Standard Handle
- Volume per Flush (gal): 0.125
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | Z6003AV-ULF | Device Type | AquaVantage® ‘AV’ Exposed Urinal Flush Valve |
| Body Material | Brass | Seat Material | AquaVantage TPE Diaphragm |
| Operation | Manual | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 0.125 gal | Mount type | Wall-Mount |
| Rough in in | 11-1/2" | Spud connection | Top Spud |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Bedpan Washer
| Bedpan Washer
| Bedpan Washer
| Urinal
| Urinal
|
| Series | Z6003AV-ULF
| Z6011AV-HET-BWN
| Z6000AV-WS1-BWN
| Z6011AV-BWN
| Z6003AV-WS1
| Z6003AV-EWS
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | AquaVantage® ‘AV’ Exposed Urinal Flush Valve
| Flush Valve with Bedpan Washer for Water Closets with Handicap Grab Bar
| AquaVantage® ‘AV’ Exposed Closet Flush Valve with Bed- pan Washer
| Flush Valve with Bedpan Washer for Water Closets with Handicap Grab Bar
| AquaVantage® ‘AV’ Exposed Urinal Flush Valve
| AquaVantage® ‘AV’ Exposed Urinal Flush Valve
|
| Outlet Size | 3/4"
| — | — | — | 3/4"
| 3/4"
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
|
| Operation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
