Specifications
Description

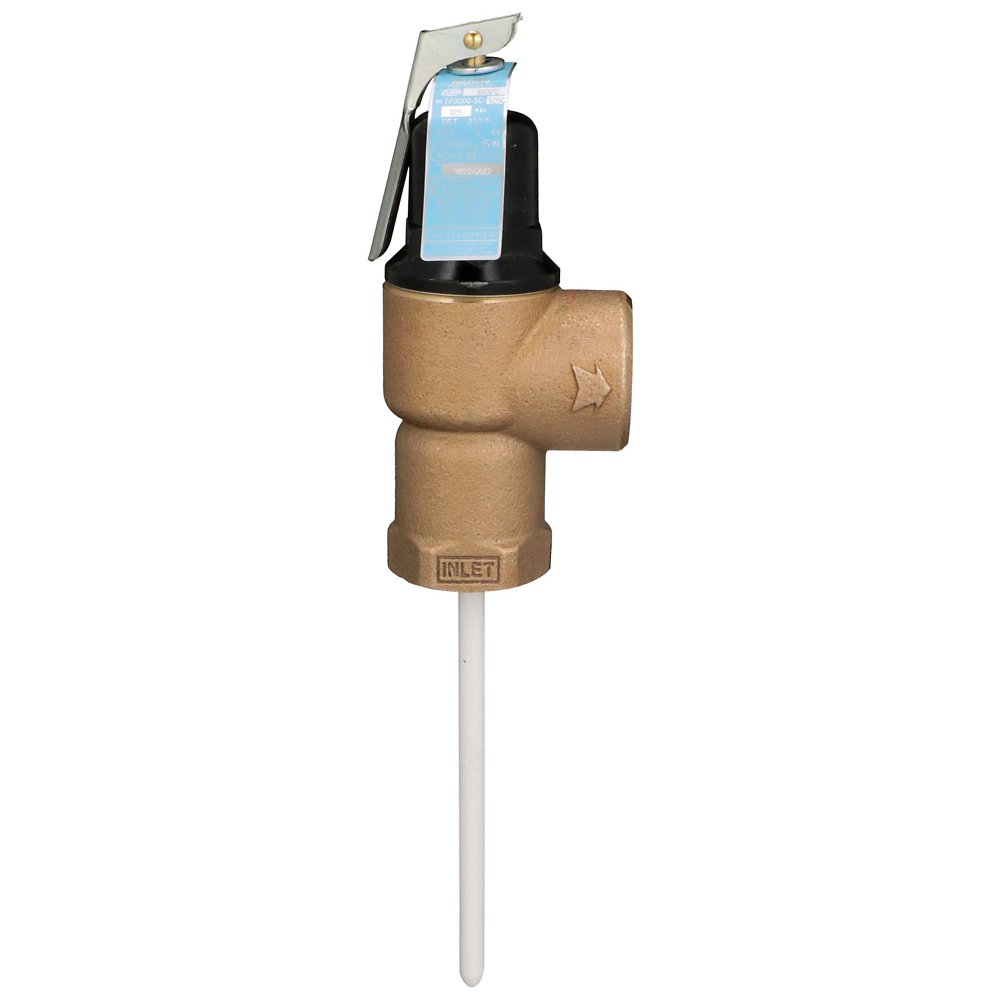

The Zurn Wilkins TP3000-5C-150C is a 1" temperature and pressure (T&P) relief valve for commercial water heater, factory set at 150 psi and 210°F. It is rated to up to 210°F.
The TP3000 Wilkins Commercial Temperature and Pressure Relief Valve is designed for installation on commercial water heaters to protect against over-temperature or excessive pressure.
Features
- Commonly used on commercial water heaters
- Thermal element protected with epoxy coating
- Available in 75, 100, 125, 150, and 175 psi setting
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 150 psi and 210°F. The setting is fixed and is not field-adjustable.
- Will it fit my water heater - what BTU input does it cover?
- This valve is rated for 500,000 BTU/hr on the ANSI Z21.22/CSA 4.4 basis. Code requires the relief valve's discharge capacity to equal or exceed the input of the appliance it protects, so compare it against the input rating on the heater's data plate. Zurn's own spec sheet separately lists a 2,155,000 BTU/hr ASME Section IV pressure-steam figure for this exact model - a different, much larger number measured on a different basis. Do not compare the two.
- Can I use this on potable water?
- No - Zurn states the NSF/ANSI/CAN 372 lead-free listing on this shared spec sheet applies to the P1000AXL model only. This T&P valve carries no potable-water lead-free claim; use the P1000AXL if you need one certified for potable service.
Specifications
- Type: Temperature & Pressure Relief Valve with Manual Purge Lever, Non-Adjustable
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: NPT
- Application: Domestic Water
- MPN: TP3000-5C-150C
- Temperature: up to 210°F
- Certifications: ASME Section IV, ANSI-Z21.22, CSA-4.4
- Relief Type: Temperature & Pressure
- Factory Set Pressure (psi): 150
- Temperature Setting (°F): 210
- Discharge Capacity (BTU/hr): 500000
- BTU Rating Basis: ANSI Z21.22/CSA 4.4
- ASME Code Rating: ASME Section IV
- Application: Commercial Water Heater
- Approved for Potable Water: No
- Thermostat / Probe Length (in.): 5
- Shank Length: Standard
- Connection Configuration: MNPT inlet x FNPT outlet
- Manual Test / Purge Lever: Yes
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| TP3000-5C-150C | 612052076539 | Download |
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | NPT |
| Element Length IN | 5.0 in | Shank Length | Standard |
Details
| Series | TP3000-5C-150C | Device Type | Temperature & Pressure Relief Valve with Manual Purge Lever, Non-Adjustable |
| Application | Domestic Water | Max Temp °F | 210.0 °F |
| Relief Type | Temperature & Pressure | Set Pressure PSI | 150.0 psi |
| Temp Setting °F | 210.0 °F | BTU Capacity | 500000.0 BTU/hr |
| BTU Rating Basis | ANSI Z21.22/CSA 4.4 | ASME Rating | ASME Section IV |
| Application Class | Commercial Water Heater | Connection Config | MNPT inlet x FNPT outlet |
| Test Lever | Yes | — | — |
Certifications & Standards
| ASME Section IV | ANSI-Z21.22 |
| CSA-4.4 | — |
Compare with similar products
| Relief Type | Temperature & Pressure
| Temperature & Pressure
| Temperature & Pressure
| Temperature & Pressure
| Temperature & Pressure
|
| Set Pressure PSI | 150.0 psi | 150.0 psi | 150.0 psi | 175.0 psi | 75.0 psi |
| Temp Setting °F | 210.0 °F | 210.0 °F | 210.0 °F | 210.0 °F | 210.0 °F |
| BTU Capacity | 500000.0 BTU/hr | 205000.0 BTU/hr | 105000.0 BTU/hr | 95000.0 BTU/hr | 105000.0 BTU/hr |
| BTU Rating Basis | ANSI Z21.22/CSA 4.4
| ANSI Z21.22/CSA 4.4
| ANSI Z21.22/CSA 4.4
| ANSI Z21.22/CSA 4.4
| ANSI Z21.22/CSA 4.4
|
| ASME Rating | ASME Section IV
| ASME Section IV
| ASME Section IV
| ASME Section IV
| ASME Section IV
|
| Application Class | Commercial Water Heater
| Commercial Water Heater
| Residential Water Heater
| Residential Water Heater
| Residential Water Heater
|
| Element Length IN | 5.0 in | 5.0 in | 3.0 in | 4.0 in | 4.0 in |
| Shank Length | Standard
| Standard
| Extended (E)
| Standard
| Standard
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Test Lever | Yes | Yes | Yes | Yes | Yes |
| Series | TP3000-5C-150C
| TP220-5C-150C
| — | TP1100A-4C-175C
| TP1100A-4C-75C
|
| Spec Sheet | — | ||||
| Device Type | Temperature & Pressure Relief Valve with Manual Purge Lever, Non-Adjustable
| Temperature & Pressure Relief Valve with Manual Purge Lever, Non-Adjustable
| Relief Valve
| Temperature & Pressure Relief Valves with Manual Purge Lever and Optional Extended Body and Shank
| Temperature & Pressure Relief Valves with Manual Purge Lever and Optional Extended Body and Shank
|
| Size Nominal | 1"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Inlet Size | 1"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Outlet Size | 1"
| 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 210.0 °F | 210.0 °F | 210.0 °F | 210.0 °F | 210.0 °F |
| Certifications | ASME Section IV, ANSI-Z21.22, CSA-4.4
| ASME Section IV, ANSI-Z21.22, CSA-4.4
| ASME Section IV, ANSI-Z21.22, CSA-4.4
| ASME Section IV, ANSI-Z21.22, CSA-4.4
| ASME Section IV, ANSI-Z21.22, CSA-4.4
|
