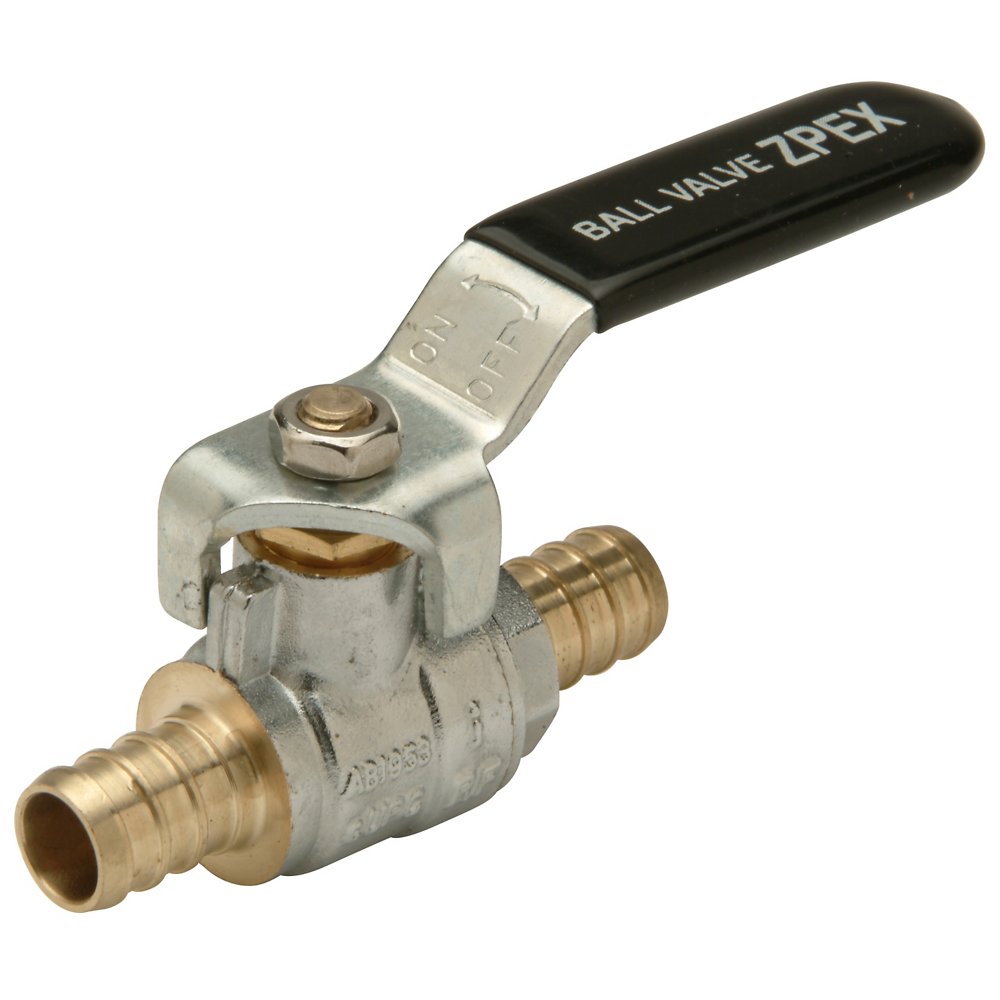

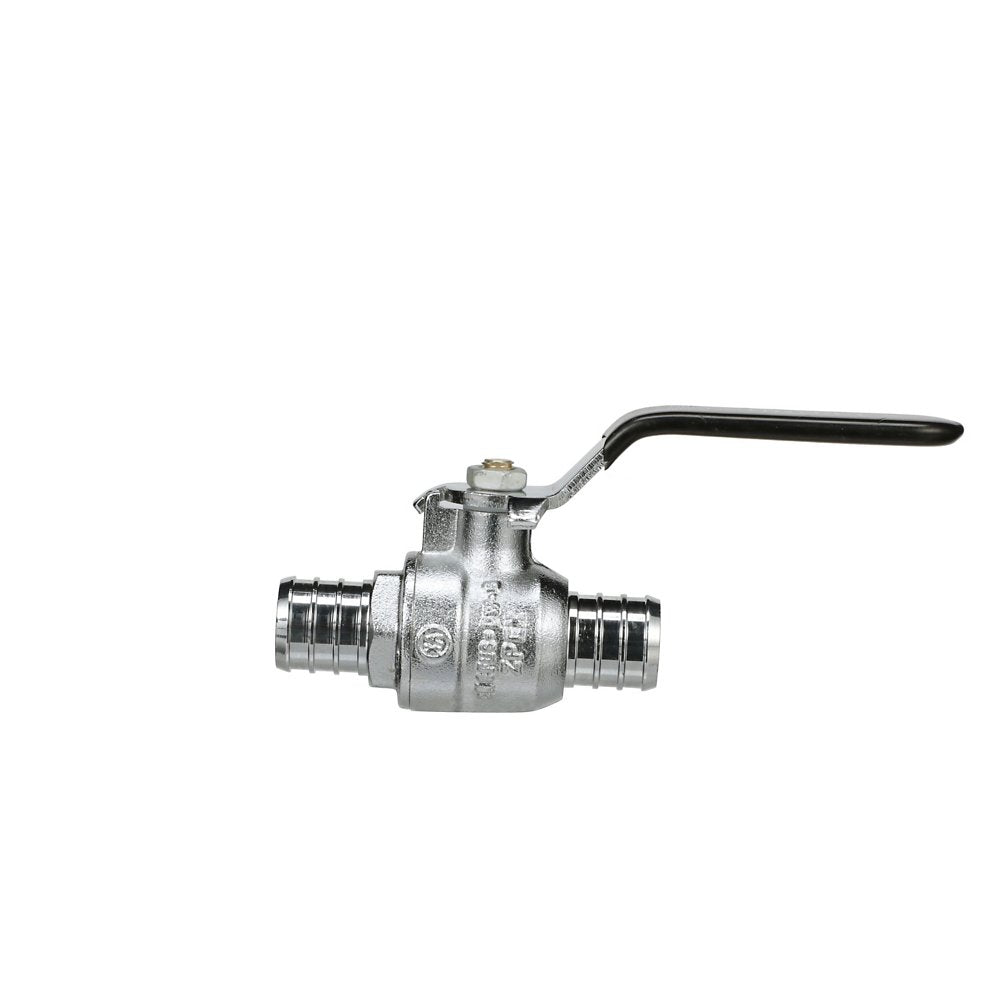

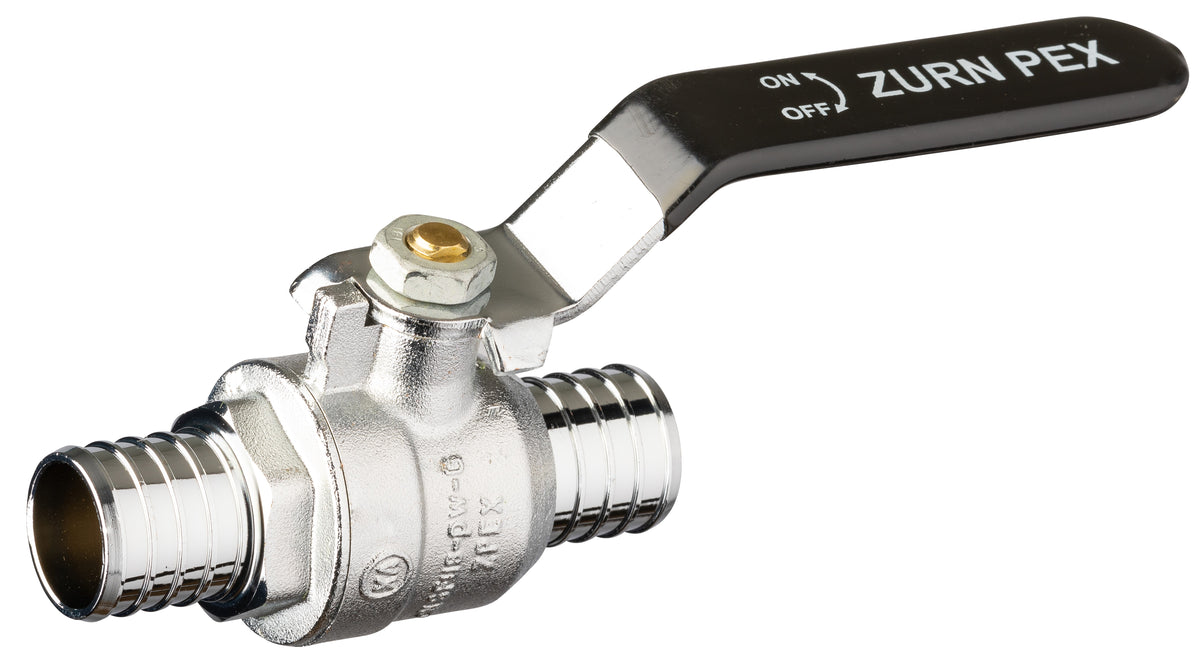

Zurn QQBV55GX 1" Ball Valve, Brass, Barb

The Zurn QQBV55GX is a 1" brass ball valve -- 1" Barb x 1" Barb Ball Valve. It features a brass body. Rated to 160 psi.

Zurn XL Brass full port PEX ball valves are dependable insert and crimp fittings that are fast, easy, and safe to install..

Features

• Used in PEX hot and cold water plumbing applications
• Easy to Install
• Easy turn lever handle
• Low-Lead Compliant

Common Questions

Crimp or expansion fitting -- which is this?

This is a crimp/insert fitting (ASTM F1807): the barb pushes into the PEX tubing and a separate copper or stainless crimp ring is compressed over the joint with a crimp tool. It is not a cold-expansion (ASTM F1960, "ProPEX-style") fitting, which uses no loose ring at all -- the two systems are not interchangeable without swapping tooling.

What standards is it listed to?

ASTM F1807, CSA-B137.5, NSF-61.

Specifications

• Type: PEX® XL-Low Lead Brass Barb x Barb Lever Ball Valve
• Size: 1"
• Connection: Barb
• Body Material: Brass
• Max Pressure (psi): 160
• Application: Domestic Water
• MPN: QQBV55GX
• Certifications: ASTM F1807, CSA-B137.5, NSF-61
• Fitting Type: Ball Valve
• Connection System: PEX Crimp
• Port Configuration: 1" Barb x 1" Barb Ball Valve
• Turn Type: Quarter-Turn
• Inlet Connection: Barb
• Outlet Connection: Barb
