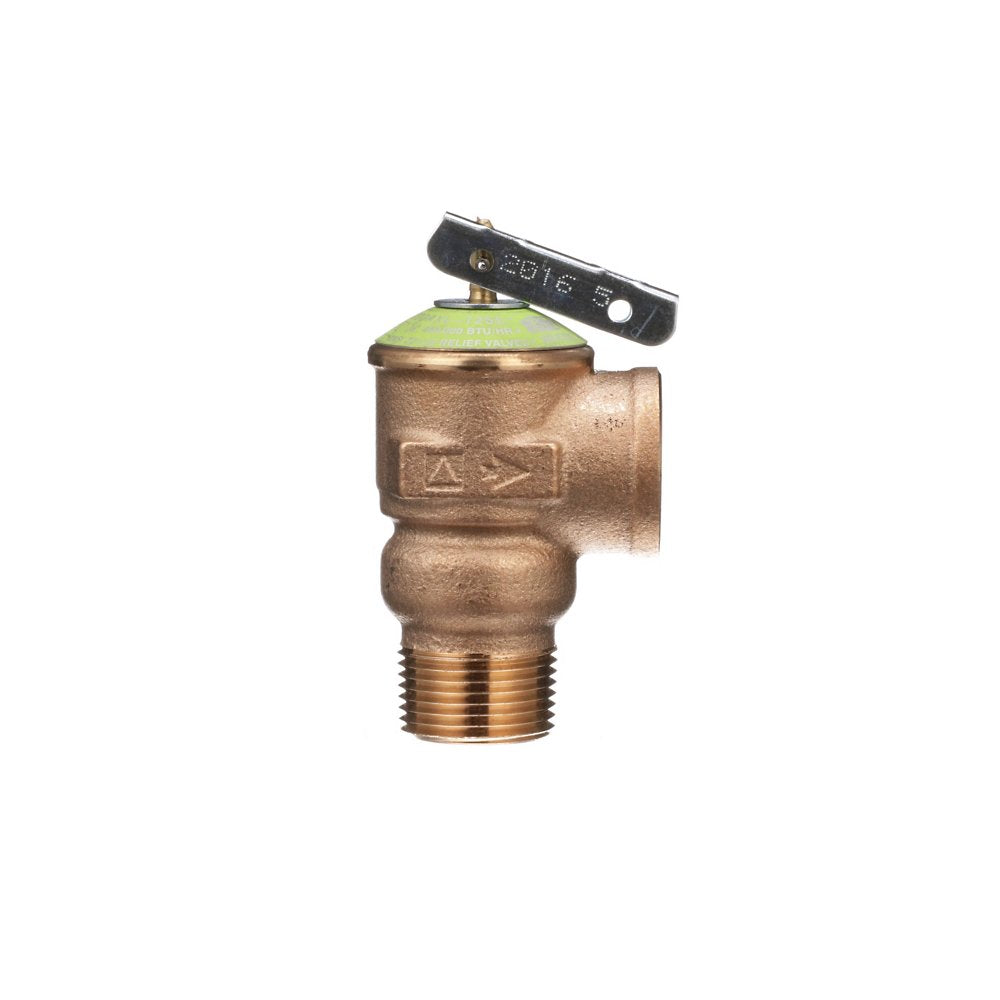

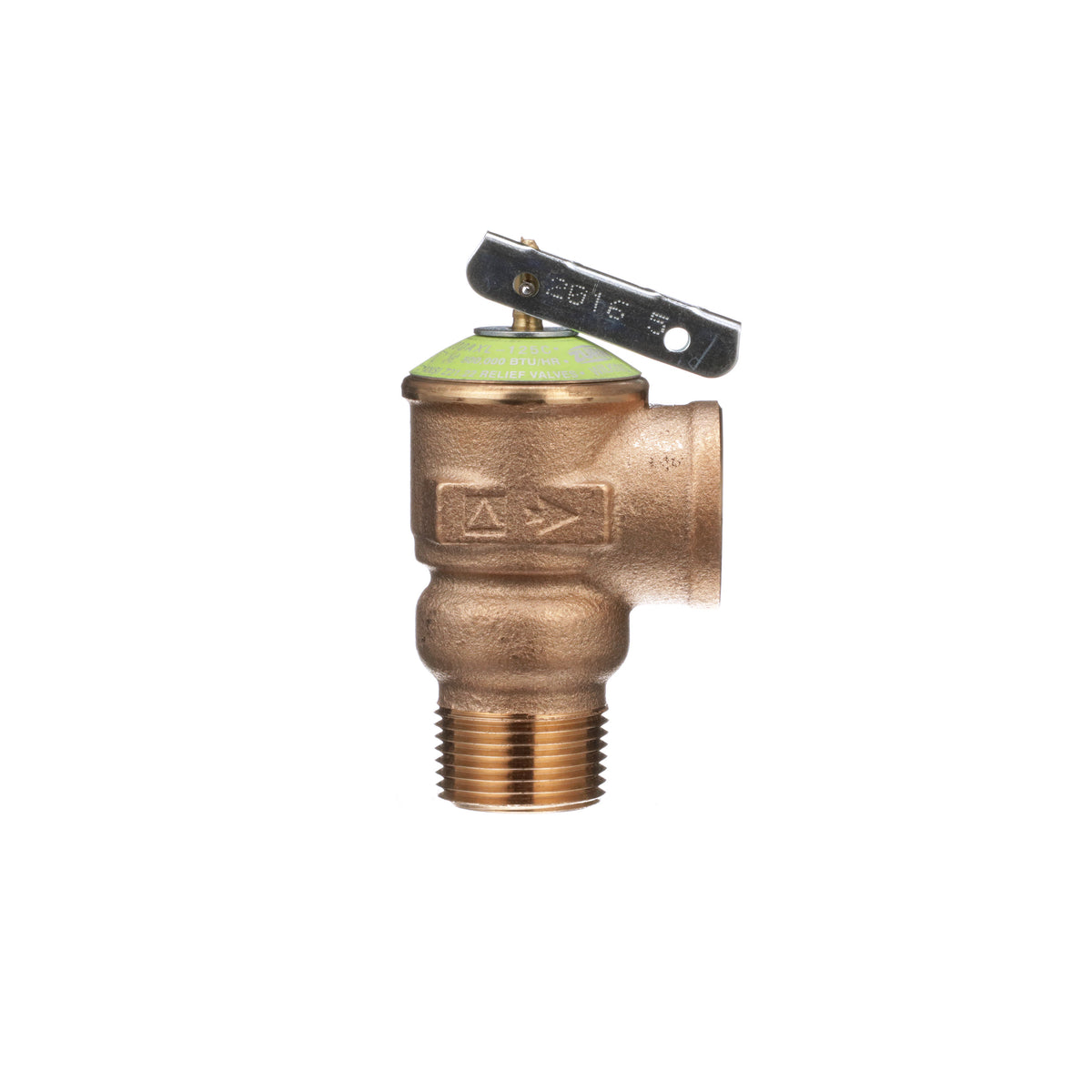

The Zurn Wilkins P1000AXL-125C is a 3/4" pressure relief valve for water heater / storage tank, factory set at 125 psi.
The P1000AXL Pressure Relief Valve is utilized on water heating storage vessels for protection against over-temperature or excessive pressure (not for steam service). Primarily used on storage tanks, P1000AXL materials include cast brass or bronze for the main valve body, quality stainless steel 300 series internals, stainless steel springs, and FDA approved, epoxy-coated copper tube probes. Multiple pressure relief settings and inlet/outlet connection options provide easy, ultra versatile installation capabilities, and the P1000AXL assembly shall be used where pressure only relief is required.
Features
- Eliminates risk of over-pressure of storage tanks
- Epoxy-coating adds extra protection
- Pressure relief valve settings of 30, 75, 125, and 150 psi offer versatility
- CSA Compliance to ANSI Z21.22/CSA 4.4
- Certified to ASME Section IV by National Board
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 125 psi. The setting is fixed and is not field-adjustable.
- Will it fit my water heater - what BTU input does it cover?
- This valve is rated for 200,000 BTU/hr on the ANSI Z21.22/CSA 4.4 basis. Code requires the relief valve's discharge capacity to equal or exceed the input of the appliance it protects, so compare it against the input rating on the heater's data plate.
- Can I use this on potable water?
- Yes - it is certified lead-free under NSF/ANSI 372, which plumbing codes require for any device in a drinking-water line.
Specifications
- Type: Pressure Relief Valve with Manual Purge Lever
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Application: Domestic Water
- MPN: P1000AXL-125C
- Certifications: ASME Section IV, ANSI-Z21.22, CSA-4.4, NSF-372
- Relief Type: Pressure Only
- Factory Set Pressure (psi): 125
- Discharge Capacity (BTU/hr): 200000
- BTU Rating Basis: ANSI Z21.22/CSA 4.4
- ASME Code Rating: ASME Section IV
- Application: Water Heater / Storage Tank
- Approved for Potable Water: Yes
- Connection Configuration: MNPT inlet x FNPT outlet
- Manual Test / Purge Lever: Yes
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| P1000AXL-125C | 612052231761 | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | NPT |
Details
| Series | P1000AXL-125C | Device Type | Pressure Relief Valve with Manual Purge Lever |
| Application | Domestic Water | Relief Type | Pressure Only |
| Set Pressure PSI | 125.0 psi | BTU Capacity | 200000.0 BTU/hr |
| BTU Rating Basis | ANSI Z21.22/CSA 4.4 | ASME Rating | ASME Section IV |
| Application Class | Water Heater / Storage Tank | Connection Config | MNPT inlet x FNPT outlet |
| Test Lever | Yes | Potable Approved | Yes |
Certifications & Standards
| ASME Section IV | ANSI-Z21.22 |
| CSA-4.4 | NSF-372 |
Compare with similar products
| Relief Type | Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
|
| Set Pressure PSI | 125.0 psi | 75.0 psi | 100.0 psi | 125.0 psi |
| Application Class | Water Heater / Storage Tank
| Cold Water Service (Pump / System Relief)
| Cold Water Service (Pump / System Relief)
| Cold Water Service (Pump / System Relief)
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Potable Approved | Yes | Yes | Yes | Yes |
| Series | P1000AXL-125C
| 34-P1550XL-75
| 34-P1520XL-100
| 34-P1550XL-125
|
| Spec Sheet | ||||
| Device Type | Pressure Relief Valve with Manual Purge Lever
| Pressure Relief Valve, Non-Adjustable
| Pressure Relief Valve, Non-Adjustable
| Pressure Relief Valve, Non-Adjustable
|
| Size Nominal | 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Lead Free | — | Yes | Yes | Yes |
| End Connection | NPT
| NPT
| NPT
| NPT
|
| Body Material | — | Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | — | 175.0 psi | 175.0 psi | 175.0 psi |
| Max Temp °F | — | 210.0 °F | 210.0 °F | 210.0 °F |
| Certifications | ASME Section IV, ANSI-Z21.22, CSA-4.4, NSF-372
| NSF-372, IAPMO
| NSF-372, IAPMO
| NSF-372, IAPMO
|
